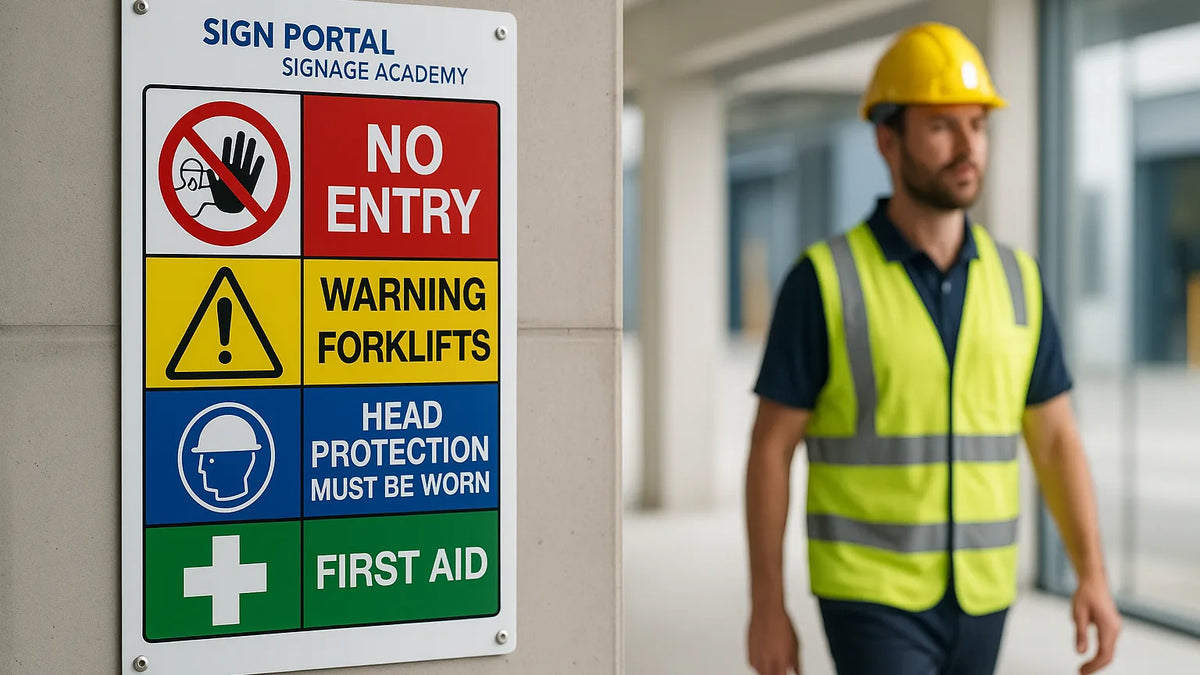

Multi Message Signs: Colours, Symbols and Meaning Explained

Quick colour and symbol meanings

Safety sign colours and shapes are purposely consistent to speed recognition. In a multi message layout, you will commonly see the following elements combined in a single panel or frame.

• Prohibition (red): Circular red ring with a diagonal slash over a black pictogram. Meaning: do not do this (e.g., no entry, no smoking).
• Mandatory (blue): Solid blue circle with a white pictogram. Meaning: you must do this (e.g., wear hard hat, wear safety boots).
• Warning (yellow/amber): Triangle with black border and black pictogram on yellow background. Meaning: caution—hazard ahead (e.g., forklift traffic, trip hazard).
• Danger header (red/black/white): A prominent header with the word DANGER. Meaning: high risk—special attention required (e.g., live electrical equipment).
• Emergency information (green): Green rectangle with white symbol/text. Meaning: safety equipment or exits (e.g., first aid, emergency exit).
• Fire equipment (red): Red rectangle with white symbol/text. Meaning: the location of fire-fighting equipment (e.g., extinguisher, hose reel).

Multi message signs combine two or more of these categories so people know what not to do, what they must do and what hazards exist—without hunting around for separate placards.

Photo note: Images on this page are from recent Sign Portal manufacture and installs in NSW and VIC—no stock photography. Captions identify location and build details.

Standards note: Australian layouts typically follow AS 1319:1994 conventions. Where principal contractors ask for ISO 7010-style pictograms, we can supply alternate icons while keeping the colour/shape logic consistent for your site.

Visibility and typical board sizes

• Common board sizes: 600 × 900 mm (small entries), 900 × 1200 mm (general site gates), 1200 × 1800 mm (primary hoarding/compound gates).
• Viewing distance guide (practical): Up to ~10 m: 600 × 900 mm; 10–20 m: 900 × 1200 mm; 20–35 m: 1200 × 1800 mm. Increase size where approach speed is higher.
• Icon and text scale: Aim for 100–150 mm icon diameters for PPE symbols on entry boards; keep key text above 40–60 mm cap height for 10–20 m viewing.
• Standard reference: Layouts should align with AS 1319:1994 conventions for colour, symbol and legend style used in Australia.
• Rule of thumb for legend size: ~1 mm x-height per 0.3 m viewing distance (e.g., 60–70 mm x-height for ~20 m). Increase where glare or motion is present.
• Low-light performance: For gates used pre-dawn or at night, specify retroreflective faces (AS/NZS 1906.1 classes) on the whole board or critical cells.

When a multi message format is the right choice

Use a combined sign when several instructions apply at the same point of control, such as a site gate, a warehouse entry or the boundary of a confined work zone. Grouped messages reduce visual noise, improve compliance and simplify maintenance compared with multiple loose placards.

• Construction and demolition sites: Site entry boards listing mandatory PPE, access restrictions and high-risk activities.
• Warehousing and logistics: Forklift traffic warnings, speed limits, pedestrian rules and PPE requirements at dock doors.
• Manufacturing plants: Machine rooms that require ear protection, lockout procedures and authorised access.
• Mining and energy: Remote gates and compounds where quick hazard recognition is critical for visiting contractors.

Do not overload the sign. Aim for the smallest set of messages that actually change behaviour. If everything is urgent, nothing is.

Typical content counts: 5–8 panels at a primary entry work well: 1–2 prohibition/danger, 3–4 mandatory PPE, 1–2 warnings, and 1 emergency locator. For secondary doors, keep to 3–5 essentials.

Real result (Sign Portal program): In a recent rollout to 14 NSW construction entries, we standardised 1200 × 1800 mm boards with consistent hierarchy and QR-coded asset IDs; production completed in 4 business days from proof, zero transit damage, and rapid reorders triggered via the QR for two subsequent hazard changes.

Layout and hierarchy that improves comprehension

The order and grouping of messages affects how quickly people understand them. A practical sequence is: prohibit first (stop unsafe actions), then mandate (what to wear/do), then warn (what to look out for), then provide emergency information.

Stacking order

• Top row: Prohibition and danger items that must be noticed first.
• Middle rows: Mandatory PPE and conduct requirements.
• Lower rows: Warnings specific to the area or operation.
• Bottom/side band: Emergency and fire equipment locations.

Pictograms and wording

Pair a clear pictogram with concise text (the “legend”). Keep wording specific and action-focused: “Wear eye protection” instead of “Eye protection”. Avoid jargon unless it is universally understood on your site.

• Use one main idea per panel cell—do not blend two icons in one circle or triangle.
• Maintain consistent icon style and stroke weight across the set.
• Ensure adequate white space so each message reads cleanly at distance.
• Maintain contrast: black on yellow for warnings, white on blue for mandatory, white on green for emergency.

Materials and print options

Choose materials based on how long the sign must last, where it will sit and how it will be mounted. As an Australian manufacturer, Sign Portal produces these panels in-house using direct UV printing on rigid substrates and high-performance vinyl when required.

• Aluminium composite panel (ACP/ACM): Rigid, smooth and dimensionally stable for outdoor boards. Direct UV printed on our Mimaki JFX EX flatbeds; can be CNC routed to custom sizes and shapes on our MultiCam SM2412. Typical thickness: 3 mm signage-grade PE core; FR core available on request to suit site policy.
• Aluminium sheet: Durable and suitable where thin metal is preferred. Often paired with reflective films cut on our Roland VG-640 and laminated for protection. Common gauges: 0.9–1.6 mm.
• Corflute (fluted polypropylene): Lightweight and cost-effective for temporary site boards and inserts. Direct UV print keeps colour strong without separate adhesive layers. Popular thicknesses: 5 mm and 8 mm for large boards.
• Foam PVC: Suitable for indoor areas where impact is low. Smooth print surface; not recommended for harsh outdoor exposure.
• Reflective vinyl (engineer-grade or higher): Applied to ACP or aluminium for low-light visibility. Graphics can be print-and-cut, then overlaminated for abrasion resistance. Specify class and colour (e.g., EG, HIP) to match risk level.

For complex, re-usable systems, panels can be made as modular inserts that slide into a frame. This allows seasonal or task-based swaps without replacing the whole board.

Where edges and corners may be touched or bumped, specify rounded corners and consider a protective laminate. Laminates add abrasion and chemical resistance, and can provide anti-graffiti properties in public areas.

• Finish options at Sign Portal: UV-direct matte; gloss/matte anti-graffiti laminate; textured non-glare laminate for bright foyers.
• Edge detail: 3–5 mm corner radius recommended for hand-safe edges on pedestrian gates; 6–8 mm pre-drilled holes typically inset 20–25 mm.
• Fixing hardware guidance: Stainless pan-head screws with penny washers for walls and gates; rivets for sheet metal; structural bolts with backing plates for frames/posts. For tape-mounting, use high-bond acrylic tape with mechanical backup.

Temporary and permanent builds compared

Most projects fall into one of two build styles. Use the quick comparison below to decide which path to explore first.

Artwork and ordering checklist

Clear files speed production and reduce proofing rounds. If you do not have artwork prepared, our team can help set up standard symbols and legends.

• Vector files preferred: PDF, AI or EPS with fonts outlined. Vector ensures crisp icon edges at any size.
• Raster images: Supply at suitable DPI for the final size; 1:1 scale preferred. Avoid low-resolution web icons.
• Colours: Provide CMYK values or Pantone references where critical. We print in CMYK on UV flatbeds and solvent/eco-solvent for vinyl.
• Bleed and margins: Add bleed for edge-to-edge prints and maintain safe margins around icons and text.
• Content list: Confirm the exact set of messages, their order, and any site or gate IDs printed on the board.
• Mounting plan: Tell us how it will be fixed (fence ties, wall screws, posts) so we can pre-drill holes or reinforce edges if needed.
• Compliance check: Nominate AS 1319-style pictograms or ISO 7010 variants if specified by the principal contractor.
• Legend style: Confirm capitalisation, punctuation and any site-specific wording (e.g., “Hi-Vis vest” vs “High visibility vest”).
• Reflective class: If required, choose AS/NZS 1906.1 class (EG, HIP, prismatic) per risk and lighting.
• Hardware and holes: Mark hole pattern (diameter, inset) and corner radius; request backing plates if mounting to chainlink.
• Asset tracking: Request QR-coded asset IDs linked to your job or gate numbers for easier inspections and reorders.
• Proof routing: Nominate HSE approver(s) and consolidate feedback in a single marked-up PDF to minimise rounds.
• Delivery details: Provide access hours, induction notes, tail-lift needs and contact for site receipt.

Build-and-order checklist you can tick off

• Confirm size, orientation and viewing distance (e.g., 900 × 1200 mm landscape for 15–20 m).
• Finalise message set and hierarchy (stop → must do → warn → emergency).
• Choose substrate and thickness (e.g., 3 mm ACP, 5 mm corflute).
• Decide finish (direct UV, reflective class, gloss/matte, anti-graffiti).
• Nominate hole pattern, corner radius and mounting hardware.
• Provide artwork files or request Sign Portal setup from our icon library (AS 1319 style).
• Supply colour refs and any brand lockups to include.
• Add site codes, asset IDs, QR codes or revision fields if needed.
• Confirm quantity, delivery address, access notes and required date.
• Approve digital proof (PDF) and sign-off on spelling, sizes and hole positions.
• Nominate reflective class (if used) to AS/NZS 1906.1 and identify which cells require it.
• Map each board to a gate/door in your site plan; send a CSV if ordering multiple locations.
• Request QR-coded asset labels and provide the URL or code structure you want encoded.
• Choose packing method (carton vs pallet) and any split deliveries by site.
• Provide purchase order and on-site receiver details (name, mobile).

Installation basics

Installation methods vary with substrate and surface. The goal is a flat, rigid presentation with fixings that resist wind and tampering. If in doubt, engage a qualified installer—especially for posts or elevated locations.

• Temp fencing: Use UV-stable cable ties through pre-drilled holes; add extra ties on windy sites and at corners.
• Walls and gates: Stainless screws with washers or rivets into suitable structure. For smooth internal walls, VHB tape with mechanical backup is common practice.
• Frames and posts: Bolt through with backing plates where loads or vibration are expected.
• Fixing spacing: For 1200 × 1800 mm ACP, plan at least 10–12 fixing points; keep holes 20–25 mm from edges to reduce tear-out.
• Adhesion prep: Degrease surfaces (isopropyl alcohol), ensure substrate is dry, and avoid installation during rain or extreme heat.

Maintenance and replacement

Even durable boards need periodic checks. Build inspections into your WHS routine so messages stay legible and relevant to current hazards.

• Cleaning: Use mild detergent and soft cloths; avoid aggressive solvents that can dull print or cloud laminates.
• Inspection: Look for fading, abrasion, delamination, cracked corners and loose fixings. Replace damaged panels promptly.
• Content review: Remove messages that no longer apply and add any new requirements so the set remains concise and accurate.
• Graffiti management: If anti-graffiti laminate is specified, use suitable graffiti remover or 70% IPA; always spot-test first.

Recommended cycle: High-UV or coastal sites—inspect monthly; sheltered industrial—quarterly. Record inspections against gate or asset ID.

Australian conditions to consider

Sun, heat, coastal salt and dust take a toll on signage. For northern and inland sites with strong UV, choose UV-stable substrates and protective laminates. In coastal areas, prefer corrosion-resistant fixings and sealed edges.

• High UV: Direct UV printing on rigid substrates performs well; laminates add extra defence against chalking and abrasion.
• Coastal salt: Stainless or galvanised fixings; avoid dissimilar-metal contact where possible.
• Tropical rain and wind: Extra fixings and robust substrates; avoid oversized sail-like panels on temporary fencing.
• Mining and dusty sites: Laminates with smooth surfaces clean easier; schedule more frequent inspections.
• FR options: Where site policy requires, specify FR-core ACP for hoardings and compounds in bushfire-prone or critical infrastructure zones.

Common symbol set for combined boards

Symbols allow fast recognition across language and literacy levels. The following pictograms regularly appear on Australian site boards.

• Hard hat, eye protection, hearing protection, high-vis vest (mandatory blue circles)
• No smoking, no unauthorised entry, no mobile phones (prohibition red circles)
• Forklift traffic, overhead load, trip hazard (warning yellow triangles)
• Danger: live electrical apparatus, confined space (danger header with supporting panel)
• First aid, emergency assembly point, emergency exit (green rectangles)
• Fire extinguisher, fire hose reel (red rectangles)

How we manufacture combined boards

At Sign Portal, rigid panels are direct UV printed on our Mimaki JFX EX flatbed printers for sharp, durable colour. Where reflective performance is required, we print and contour-cut films on our Roland VG-640, apply them to ACP or aluminium and finish with a protective laminate.

Panels are then cut or drilled to specification. The MultiCam SM2412 CNC router handles precise sizing, rounded corners and hole patterns, while our Trotec Speedy 500 laser and large-format CO2 laser support acrylic or speciality components where needed.

This in-house workflow keeps colour consistent across sets, allows custom shapes or frames, and speeds repeat ordering. We ship Australia-wide, including regional and remote delivery.

Colour control and repeatability: We maintain media-specific print profiles and verify with an in-room spectro check before long runs. Job metadata (substrate lot, profiles, hole programs) is stored against your order so reprints match previous deliveries.

Reorder convenience: Optional QR-coded asset labels on the reverse or front margin can deep-link to your reorder page for that gate or area.

Our first-party QA process

• Preflight: File checks for scale, fonts, colour spaces and icon conformance to AS 1319 style.
• Substrate lot-tracking: Panels are labelled with batch IDs so reorders match finish and tone.
• Colour control: Media-specific print profiles maintained for ACP, aluminium and reflective films; test swatches verified before long runs.
• Final QC: Dimensions, hole positions and legend spelling checked against approved proof; packed with edge protection and corner buffers.
• Adhesion and finish: Where laminated, we allow proper cure time before packing; edges are de-burred after routing.
• Packing check: Count off against the picking list; fragile faces interleaved; shipment photographed prior to dispatch.

Dispatch and delivery

We plan delivery so boards arrive install-ready and undamaged.

• Lead times: Typical 2–5 working days from proof approval for non-reflective; add 1–2 days for reflective + laminate and large quantities.
• Packing: Reinforced cartons for small sets; foam-cornered and shrink-wrapped bundles on pallets for larger boards; individual protective sheets between prints.
• Labelling: Shipment labels show job name, site code and board count; optional per-gate labelling to speed on-site allocation.
• Freight: National courier and pallet networks, with regional/remote options. Advise site access hours and any induction or tail-lift requirements.
• Cut-off guidance: Same-day dispatch is often possible for approved proofs before midday and stock materials; confirm when ordering.

Delivery acceptance checklist

• Inspect cartons/pallets for visible damage before signing the POD; photograph any issues while the driver is present.
• Count boards and verify against the packing list and per-gate labels.
• Check hole positions, corner radius and overall dimensions match the approved proof.
• Confirm legends, pictograms and any QR/asset IDs are correct and scannable.
• Store flat on a dry surface until installation; avoid stacking face-to-face without interleaving.

Repair, refacing and recycling

Many boards can be repaired without full replacement—reducing cost and waste.

• Panel refacing: For intact ACP/aluminium, we can remove the face layer and apply new graphics or reflective films.
• Cell swaps: On modular frames, replace only the affected insert (e.g., update a PPE rule or add a new hazard).
• Hardware repairs: Replace torn cable ties with stainless fixings or add backing plates to reduce future tear-out.
• Recycling: Corflute can be returned for polypropylene recycling; aluminium is widely recyclable—ask us about take-back options on large programmes.
• Overlay kits: We can supply sized overlay films with application guides for on-site updates; specify whether non-reflective or reflective + laminate is required.
• Turnarounds: Typical refacing lead time is 2–4 working days after approval; emergency replacements can be prioritised subject to material availability.

How to request a repair or reface

• Email photos of the installed board showing the issue (close-up + full board) and the original order or asset ID.
• Note substrate condition (flat/intact vs bent/delaminated) and mounting method.
• Confirm whether content changes are needed or if it is a like-for-like reface.
• Approve the repair quote and any revised proof; nominate return freight or site pick-up options.

Original project photos

Key takeaways

• Use consistent colour categories to communicate fast: red (prohibit/fire), blue (mandatory), yellow (warning), green (emergency), danger header for critical risks.
• Group and order messages so people know what to stop, what to do, then what to watch for.
• Choose materials and finishes to suit exposure and lifespan—temporary boards differ from permanent facility signage.
• Good artwork and a clear mounting plan will save time, cost and rework.
• Plan for the full lifecycle: specify delivery labelling, build in asset IDs for inspections, and use refacing to update content without replacing whole boards.
