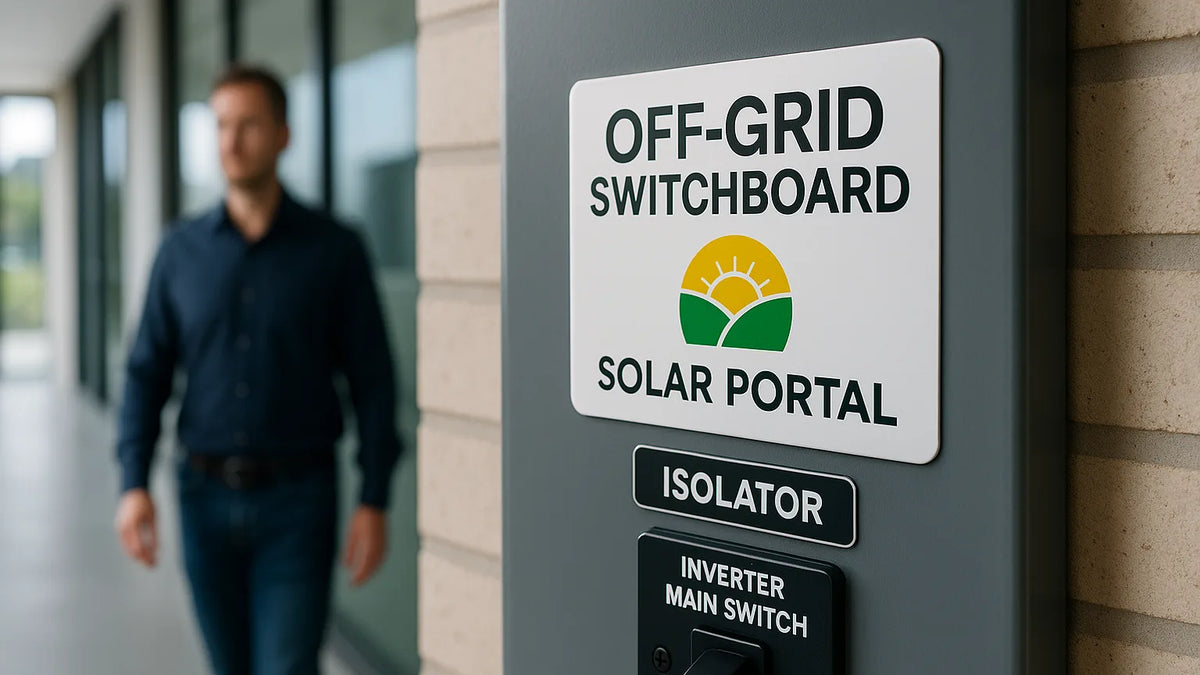

Off-Grid Switchboard Labels: Material and Placement Considerations

What off-grid systems need from labels

Off‑grid and stand‑alone power system (SAPS) switchboards typically combine battery inverters, charge controllers, generator inputs and distribution. Labels must survive heat, UV where exposed, routine cleaning and occasional handling while remaining easy to read at arm’s length.

Because electrical labelling can be governed by project specifications, client standards or legislation, the wording and mandatory elements should be verified against the supplied electrical documentation before manufacture.

Material options for durability

There is no single material that suits every off‑grid switchboard. Selection should reflect location (indoor enclosure, semi‑outdoor kiosk, plant room), expected cleaning, UV exposure, temperature and whether the surface accepts adhesive. Common options include engraving laminate, phenolic sheet, printed/laminated self‑adhesive vinyl and reverse‑printed acrylic nameplates.

• Engraving laminate:Multi‑layer plastics where laser or rotary engraving removes the cap to reveal a contrasting core. Text is not ink‑dependent, providing long‑term legibility.
• Phenolic sheet:Rigid industrial label stock that can be engraved and mechanically fixed for robust identification plates.
• Printed self‑adhesive vinyl:Useful for flat, clean surfaces. Add a compatible protective laminate to resist abrasion and cleaning.
• Reverse‑printed clear acrylic:Full‑colour graphics protected behind the acrylic face; suitable for premium nameplates when thickness and fixings are considered.

At Sign Portal, these are manufactured in‑house using UV flatbed printing, wide‑format printing and cutting, laser engraving/marking, and CNC routing, matched to the selected material and geometry.

Technical specification checklist (off‑grid switchboards)

Use these measurable parameters to brief, assess and approve labels for SAPS environments.

• Plate thickness (typical):Engraving laminate 1.6–3.2 mm; phenolic 1.6–3.2 mm; reverse‑printed acrylic 3–6 mm (allow for fastener length and clearances).
• Engraving detail:Minimum stroke width ≥0.3 mm; engraving depth 0.25–0.40 mm for durable contrast; corner radius ≥2 mm to reduce peel and snag.
• Adhesives (guide only):Powder‑coated/painted metal: high‑bond acrylic or VHB foam (e.g. 0.6–1.1 mm). Low‑surface‑energy plastics: LSE‑rated transfer adhesive. Brushed metals: 200–300 series acrylic transfer. Always patch‑test.
• Application temperature:10–35 °C for pressure‑sensitive adhesives; condition parts and surface to ambient before install.
• Service temperature:Printed vinyl + over‑laminate: −30 to +90 °C (grade‑dependent). Engraving laminate and phenolic: typically −30 to +80 °C. Verify against product data sheets.
• Laminate selection:Matte anti‑glare for bright plant rooms; chemical‑resistant over‑laminates where routine cleaning occurs; UV‑stable films for semi‑outdoor kiosks.
• Fasteners (mechanical fixing):Stainless steel in coastal zones; nylon/EPDM washers to isolate dissimilar metals. Typical clearance holes: M3 → 3.2 mm; M4 → 4.3 mm. Indicative torque: M3 0.5–0.8 Nm, M4 1.2–2.0 Nm (confirm with enclosure OEM).
• Letter height (rule‑of‑thumb):Letter height (mm) ≈ viewing distance (m) × 4. Example: 1 m → 4 mm; 2 m → 8 mm. Increase weight for matte finishes and low‑light areas.
• QR codes:Minimum module size ≥0.5 mm indoors; 0.8–1.2 mm on textured or low‑contrast backgrounds. Maintain ≥4‑module quiet zone; test scan under site lighting.
• Edge finishing:Chamfer or radius plate edges; deburr holes; avoid sharp corners that lift under cleaning or snag PPE.

Adhesive and substrate compatibility – field guide

Select the fixing system to suit the enclosure material and finish. The matrix below provides practical starting points for SAPS switchboards and cabinets. Always verify with a site patch‑test.

Engraving laminate or printed vinyl?

For many switchboards, the practical decision is between a permanent engraved plate and a printed decal. The comparison below highlights typical trade‑offs for off‑grid applications.

Both systems are valid when matched to the environment. Printed systems gain flexibility (colour, QR codes, reflective options), while engraving offers durable contrast without relying on ink systems.

Fixing method and surface suitability

Mounting must not compromise the switchboard’s enclosure, IP rating, ventilation or clearances. For many boards, high‑bond adhesive backing on a smooth, degreased surface works well. Where surfaces are textured, contaminated, powder‑coated, or low‑surface‑energy plastics, an adhesive test patch or mechanical fixing may be preferable.

• Adhesive mounting:Use on smooth, clean, dry and compatible surfaces. Avoid silicone contamination, dust and moisture. Follow the film manufacturer’s preparation guidance.
• Mechanical fixing:Screws, rivets or brackets for rigid plates where long‑term security is needed. Confirm fastener compatibility and avoid drilling into concealed services.

Placement principles for readability

Good placement reduces fault‑finding time and supports safe isolation. Labels should be visible at the point a person needs the information, without opening covers unless an internal label is specifically intended.

• Line of sight:Follow workplace safety sign practice: position where the viewer can see the message before reaching the hazard or action point.
• Height and grouping:Keep critical labels together near the relevant device or handle so the association is obvious.
• Avoid clutter:Too many overlapping stickers reduce the impact of important labels. Remove obsolete notices during commissioning.
• Environment:In bright plant rooms, manage glare by selecting matte finishes and adequate text weight.

Wording, symbols and colour

Electrical wording should come from the project drawings, schedules and client specification. Variable‑data production makes it easy to reproduce a mistake at scale, so double‑check the source spreadsheet and abbreviations before approval.

Do not substitute corporate colours for these categories where adherence is required.

• Contrast:Prioritise strong foreground/background contrast for fast recognition.
• Legibility:Choose clear typefaces and sufficient letter height for arm’s‑length reading.
• Symbols:Use consistent, recognised symbols; avoid decorative alterations that change meaning.

Manufacturing approaches used by Sign Portal

Sign Portal manufactures labels in Brisbane using in‑house equipment that includes UV flatbed printing, wide‑format printing and cutting, laser engraving/marking and CNC routing. Matching process to material improves durability and finish:

• Laser engraving and marking:Permanent identification on compatible engraving laminates and select plastics.
• UV flatbed printing:Direct print to panels or acrylic where appropriate.
• Wide‑format printing:Decals with optional protective lamination; contour cut to shape for tidy results.
• CNC routing:Cut‑to‑size rigid plates, holes and rebates for mechanical fixing.

White‑ink capability supports printing on clear and coloured substrates, and reverse‑printed acrylic protects graphics behind the material face for premium nameplates.

Artwork and approval

Provide production‑ready artwork with clean vector cut paths for any contour‑cut labels. Include bleed on full‑bleed decals and clearly separate cut/engrave layers from print artwork. Identify fonts or outline them to avoid substitution.

Artwork proofing is a key control step. It allows you to check wording, spelling, colours, dimensions, quantities and layout before manufacture.

Environmental and location factors

Australian conditions can be harsh on labels. Consider the installation’s exposure and choose materials accordingly.

• UV and heat:North‑ and west‑facing sites can accelerate fading and embrittlement. Use suitable materials and laminates; allow for expected service life.
• Coastal exposure:Salt and humidity increase corrosion risk for fixings and can affect substrates. Prefer corrosion‑resistant fasteners and periodic cleaning.
• Industrial cleaning:Confirm chemical compatibility of both substrate and laminate with the cleaning regime.

Inspection, maintenance and replacement

Labels are administrative controls and must remain legible to be effective. Integrate inspection into the site maintenance system, with higher frequency where consequence is greater or vandalism/abrasion is likely.

• Replace labels when fading, cracking, delamination or surface wear reduces readability.
• Remove obsolete or conflicting labels during upgrades to preserve clarity.
• Test unfamiliar cleaners on a small area; avoid abrasive pads and aggressive solvents unless the material manufacturer confirms suitability.

Repair and relabelling procedure (in service)

When a SAPS switchboard is repaired, upgraded or reconfigured, labels must be updated quickly and correctly to maintain safety and traceability.

1. Plan and verify:Obtain the latest single‑line diagram, schedules and any client standards. Mark up changes and prepare a pick‑list of labels to add, remove or replace.
2. Make safe:If labels are inside an enclosure or near live parts, follow site isolation and your SWMS. Use non‑conductive tools and PPE.
3. Document as‑found:Photograph the current labels and surroundings. Record asset IDs, QR destinations and any serialised tags to preserve traceability.
4. Remove existing labels:Adhesive decals/plates: Warm gently to ~40–60 °C, lift with a plastic scraper, remove residue with an adhesive remover, then wipe with isopropyl alcohol (IPA 70–90%).Mechanically fixed plates: Use a torque‑limited driver; capture swarf and avoid dropping screws into the enclosure.
5. Restore the surface:Degrease thoroughly; where paint is chalked, lightly abrade and clean again. Conduct a small adhesion test patch in the exact zone.
6. Fit new labels:Condition parts to ambient. For adhesive, align using low‑tack tape, then apply firm pressure (100–200 kPa) with a roller or squeegee, working from centre out. For plates, use stainless fasteners with nylon washers; tighten to enclosure OEM torque.
7. Dwell and cure:Avoid washing or heavy handling for 24 hours (72 hours for full adhesive strength at ~21 °C). In cold climates, extend cure time or use approved primers.
8. Verify and record:Cross‑check wording against drawings; scan QR codes; take after‑photos; update the asset register and close‑out the work order.

Temporary labelling during repair and commissioning

When you must return equipment to service before final plates arrive, control risk and traceability:

• Use high‑contrast temporary decals with the same wording as the approved artwork; add “TEMPORARY” in a corner if permitted by the client.
• Include the work order number and date in small text to aid follow‑up.
• Enter a firm replacement due date in the maintenance system and tag the interim label in the asset register.
• For critical isolators, fit a hanging tag in addition to the temporary panel decal to support positive identification.

Ordering and repeatability

For projects with many identifiers, structured ordering from a schedule improves consistency and reduces manual entry. Sign Portal produces custom electrical labels from variable schedules as well as standardised formats, supporting sequential numbers, QR codes and barcodes.

Short‑run digital manufacturing enables one‑offs and small batches without tooling. For multi‑site rollouts, national freight is available; packaging protects printed faces, corners and edges during transport, and project‑specific freight can be arranged for remote locations.

What to supply when you order

• Approved wording and identifiers drawn from the electrical documentation.
• Material choice, thickness and fixing method (adhesive or mechanical).
• Dimensions, quantity per type, and any cut‑outs or holes.
• Artwork files and colour references for branded elements where appropriate.
• Installation environment notes (indoor plant room, kiosk, coastal, etc.).

Direct print or printed vinyl on a plate?

Rigid labels can be produced by printing direct to compatible panels (e.g. acrylic) or by printing onto self‑adhesive media and applying it to a plate. Direct print reduces layers, while printed film allows specific laminate choices, reflective options and easier face renewal later.

The preferred approach depends on the substrate, durability, colour performance and whether the label face may need periodic replacement without removing the base plate.

When a standard or regulation applies

Some labels fall under workplace safety sign conventions while others are project‑specific identification plates. When a standard genuinely applies, use the recognised designation and current edition.

Do not invent requirements from memory. If the project specification names a product system or layout, provide that documentation with your order so manufacturing aligns with the actual requirement.

Standards snapshot for SAPS/off‑grid labelling (Australia)

Project documentation takes precedence, but these standards are commonly referenced for wording, location and mandatory content. Confirm current editions and applicable clauses for your installation.

• Identification of main switches (AC and DC), neutral arrangement, RCD marking, circuit schedules and isolation points. Typical legends: “MAIN SWITCH (OFF‑GRID SUPPLY)”, “MAIN SWITCH (INVERTER SUPPLY)”, “DANGER — MULTIPLE SUPPLIES”.
• PV array DC isolator labels, string identification, maximum voltage/current data and rooftop/array warnings for DC hazards.
• ESS/BESS identification, emergency shutdown labelling, ventilation/chemical hazard warnings and service isolation points for batteries.
• Labelling for alternative supply sources, changeover arrangements and operating positions.
• Assembly nameplate data such as rated operational current, short‑circuit rating and environmental class where relevant to the board.
• Category, colour and layout conventions for danger, warning, prohibition, mandatory and emergency signs within workplaces.

Practical inclusions on SAPS boards often include: supply source identification (PV/Battery/Generator), emergency stop/shutdown location, arc‑flash category if assessed, and clear isolation labelling for battery and PV DC circuits.

QR codes for maintenance and repair

QR labels streamline repair workflows when implemented consistently.

• Target:Use a stable redirect (e.g. a short URL you control) so destinations can be updated without reprinting labels.
• Content:Link to current drawings, commissioning reports, maintenance checklists and service history. Avoid personal file‑sharing links.
• Format:Keep URLs short to maximise scanning reliability; include an asset ID in human‑readable text under the code.
• Offline fallback:Consider encoding an asset ID and service phone in the QR payload so essential info is still available without data coverage.

During repairs, re‑scan each QR after relabelling and capture an after‑photo to attach to the work order.

Common mistakes to avoid

• Approving artwork without cross‑checking against the latest single‑line diagram and schedules.
• Stacking too many small stickers instead of consolidating critical information into clear plates.
• Using glossy finishes that create glare under bright lighting, reducing legibility.
• Applying adhesive labels onto dusty, silicone‑contaminated or textured surfaces without preparation or testing.
• Leaving outdated or conflicting labels in place after modifications.

Practical examples for SAPS repairs

• Battery cabinet upgrade:Replace “BATTERY ISOLATOR” plate with revised rating and arc‑flash category; add QR code linking to updated maintenance sheet; fit chemical‑resistant matte laminate due to cleaning regime.
• Generator changeover:Remove legacy “GEN SUPPLY” decal; install engraved “GEN/GRID CHANGEOVER – POSITION INDICATES SUPPLY” with arrow aligned to handle; torque M4 screws to spec and add nylon washers.
• PV combiner re‑string:Update string ID decals (PV‑A1… PV‑C4) in a single consolidated schedule plate to avoid clutter; ensure minimum 6 mm letter height for 1.5 m viewing distance.
