Printed Barrier Covers vs Mesh Barrier Signs

From manufacture to on-site install, Sign Portal supplies and fits printed barrier covers and mesh barrier signs for events, venues and construction across Australia. If you need help choosing between printed barrier covers vs mesh barrier signs, our team can talk through wind exposure, installation crew size, reusability goals and budget before you order.

• Order printed barrier covers: Printed Barrier Covers
• Order mesh barrier signs: Mesh Barrier Signs

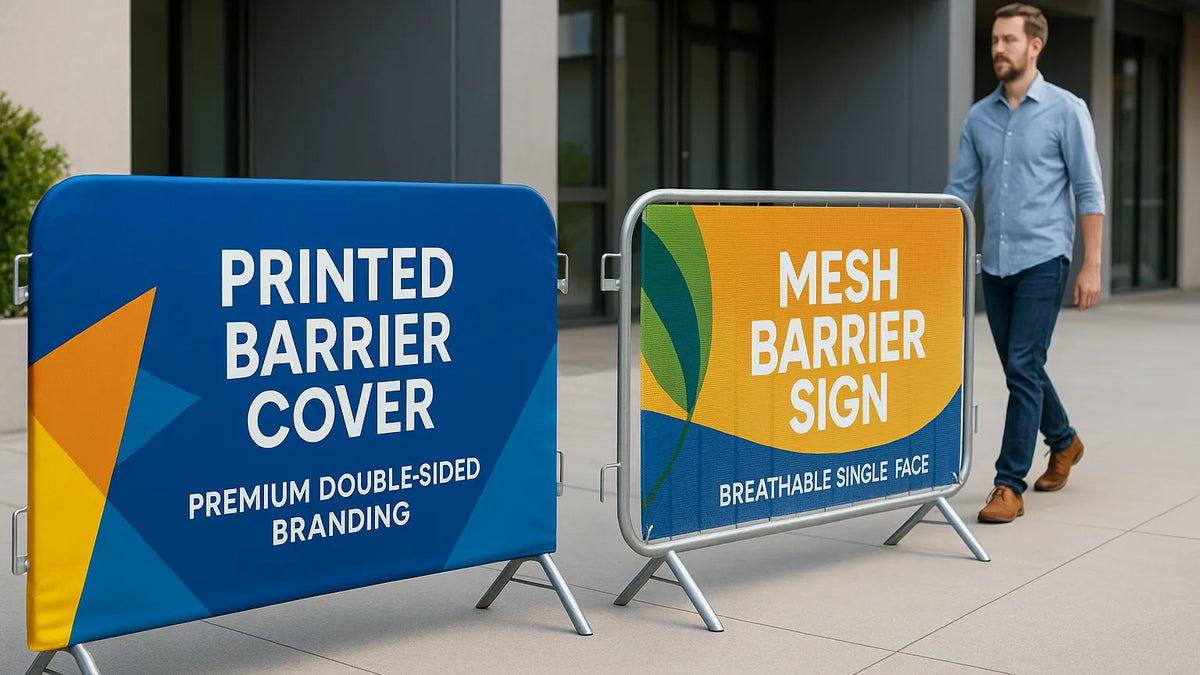

What they are

Quick take: Barrier covers are double‑sided sleeves for a premium, full‑coverage look; mesh barrier signs are single‑face panels that breathe and suit long, exposed runs.

Printed barrier covers are tailored sleeves that wrap over a crowd control barrier (often called a bike rack barrier), covering both sides and usually the top rail. They create a clean, uniform look and can provide partial privacy for back-of-house areas at events or on site. Closures are typically hidden on the crowd side so the presentation face stays tidy.

Mesh barrier signs are single-panel prints fixed to one face of the barrier with eyelets and ties or straps. The micro-perforated mesh lets air pass through, reducing wind load while giving clear branding for long, exposed runs. They’re simple to deploy in mixed fleets of barriers where sizes vary slightly.

Print coverage and brand impact

In short: Covers maximise full-bleed branding and hide frames; mesh stays vibrant for large logos but softens very fine detail up close.

Barrier covers deliver a solid, consistent background that makes logos and photography appear bold. They’re ideal for retail launches, sponsorship walls and media-friendly zones where a clean backdrop matters and the frame needs to disappear.

Mesh signs still print vibrantly, but micro-perforations soften very fine detail and small type at close range. This is rarely an issue for large logos or simple sponsor blocks viewed from a few metres away. Contrast and letter height remain important for legibility in real conditions. In strong backlight, you may see the shadow of uprights through mesh — a mid-tone background (instead of very light tints) helps reduce that show-through.

• Quick size references: most crowd control barriers are ~2.2 m wide; target a 2000–2050 mm wide printable area on mesh for cleaner tie-off zones, and allow top-rail wrap allowance for covers.
• Viewing distance guide: letter height in mm ≈ viewing distance in metres × 3–5 (use the higher end for high-glare or moving audiences).

Wind and safety considerations

Best practice: On gusty or exposed runs, choose mesh to reduce wind load; use covers in sheltered areas or where barriers are stabilised.

Wind is the number-one practical difference. A run of solid covers can act like a sail. Where barriers are freestanding without ballast, opt for mesh or break up solid runs with gaps to relieve pressure. Always follow the event or site manager’s instructions for barrier setup, spacing and anchoring — signage should not compromise safety or traffic management.

• Open, gusty sites: prefer mesh, check fixings, and avoid spanning long continuous runs without relief.
• Sheltered courtyards and indoor arenas: covers are typically fine and look premium.
• Near roads or regulated traffic: branding must not imitate traffic control devices.

Installation and reusability

Time saver: Mesh signs tie on quickly and swap fast; covers create a tidier, uniform finish but take longer per barrier.

Barrier covers install like a slip-on sleeve and can include hook-and-loop or zip closures. This creates a tidy, consistent look but involves handling a full wrap per barrier. Mesh signs are lighter, tie on quickly, and swapping sponsor panels is straightforward. Field crews appreciate being able to replace a single damaged mesh panel mid‑event without disturbing adjacent barriers.

Both options are reusable with sensible handling: avoid dragging edges on asphalt, fold or roll clean and dry, and store in labelled tubs. Damaged eyelets or frayed hems should be repaired or replaced before the next deployment.

Design and artwork setup for printed barrier covers vs mesh barrier signs

Design rule: Keep critical text away from wraps, closures and eyelets; supply vector logos and clear dimensions for best results.

Provide high-resolution logos and keep critical text away from edges, closures and eyelets. For covers, allow for the top rail wrap and any fasteners. For mesh, maintain a generous safe area so ties do not pass through small text or icons. Vector artwork and clear dimensions improve outcomes.

• Include bleed on all sides where graphics run to the edge.
• Supply vector cut/finish paths if a shaped or notched cover is required.
• Use strong contrast and adequate letter height for viewing distance.

Cost, labour and freight

Budget guide: Covers cost more per barrier for a premium, uniform look; mesh is generally more economical and lighter to freight in bulk.

Barrier covers typically cost more per barrier because of the full wrap and sewing time, but they deliver a premium, uniform look. Mesh signs are generally more economical per unit area and cheaper to transport in bulk due to lower weight and compact rolls.

For very long perimeters, logistics often favour mesh: faster installation, lighter cartons and simpler replacement of individual panels. For smaller, high-profile areas where presentation is paramount, the visual upgrade of covers may justify the extra cost.

Sustainability considerations for printed barrier covers vs mesh barrier signs

Key point: Reuse delivers the biggest impact reduction—standardise sizes so panels can be redeployed across events.

Material choice influences environmental impact. Options can include PVC meshes and alternative lower-PVC or PVC‑free systems, depending on availability and performance needs. Reuse is often the biggest sustainability gain: standardise sizes across events so panels can be redeployed, and consider designs that remain relevant beyond a single date.

When planning disposal or recycling, check whether practical, local recycling pathways exist for the chosen material. Claims about recycled content or recyclability should be based on supplier documentation rather than assumptions.

Choosing for Australian conditions

Australia-ready: Prefer breathable mesh for exposed waterfronts and rooftops; allow for UV, heat and occasional severe gusts when planning fixings.

Australia’s combination of high UV, heat and occasional severe wind gusts means material and fixing choices matter. Orient long runs with gaps where practical, select breathable mesh for exposed waterfronts and rooftops, and avoid small, intricate details on mesh where legibility is critical.

In coastal regions, schedule inspections to check for corrosion on clips and eyelets. In hot inland settings, allow for thermal expansion slack and avoid overtensioning ties that could tear hems during heat cycles.

Ordering and production

Process: In-house print and finishing with artwork proofing before manufacture streamlines quality and timelines.

At Sign Portal, mesh barrier signs and barrier covers are printed in-house using wide-format digital printers. Our Roland VG-640 platform is used for flexible media, and finishing includes hems, eyelets and reinforced stitching or closures as specified. Artwork proofing is part of our quality control so stakeholders can confirm layout, colours and quantities before manufacture.

For custom colours or critical brand tones, supply recognised colour references and request a printed sample if the exact appearance is business-critical. Large projects benefit from a documented panel schedule covering barrier count, sizes, artwork references and delivery sequencing by site.

• Provide barrier dimensions or the barrier model to size covers accurately.
• Identify any access gates or corners requiring special panels.
• Nominate fixing method (cable ties, reusable straps, clips) and required quantities.

Technical specifications at Sign Portal

• Print system: Roland TrueVIS VG-640 for flexible media with colour-managed ICC workflow and spot-colour matching on request.
• Recommended materials: polyester air-mesh for lightweight covers; 270–300 gsm PVC mesh (12×12 scrim) for durable barrier signs; solid 440 gsm PVC or fabric for premium covers.
• Finishing: double-stitched 40 mm hems, reinforced corners, hot-knife edge sealing to reduce fray, and 316 stainless or nickel‑plated brass eyelets at 400–500 mm centres.
• Closures for covers: concealed zips or hook‑and‑loop tabs positioned away from brand areas; optional bottom retainers to minimise billow.
• Fixings: UV‑stabilised 4.8–7.6 mm cable ties (≥22 kg rating) or 25 mm reusable straps for fast changeovers.

Every batch is checked against an internal QA checklist (panel dimensions, hem width, eyelet spacing, print density, and side A/B orientation) before packing into labelled site kits.

Installation patterns and crew planning for printed barrier covers vs mesh barrier signs

Speed tip: Plan fixing points and a consistent tie pattern before bump-in to keep tension even and installation fast.

• Typical tie pattern (mesh signs): start at the top corners, then centre-top, then work down and out; aim for 12–14 ties on 2.2 m barriers (400–500 mm spacing).
• Cover fitment: slide sleeve over from one end, align top rail wrap, then close zips/velcro on the crowd side to hide closures.
• Crew rates (guide only): experienced two-person crew can typically install 60–100 mesh panels/hour, or 20–40 full covers/hour depending on site access.
• Fixing colour: black ties minimise visual clutter on dark artwork; natural/white blends with lighter graphics.
• Ballast: where required by the venue, add weights or link barriers to reduce movement before fitting solid covers.
• Trim: snip cable-tie tails flush and orient cut ends away from the public side to reduce snagging.

Inspection, cleaning and repair (lifecycle) for printed barrier covers vs mesh barrier signs

Lifecycle basics: Inspect before and during use, clean gently, repair promptly and store dry to maximise reuse and safety.

Build an inspect–clean–repair routine into your event plan to extend service life and keep installs safe.

• Pre‑install inspection: check barriers for sharp burrs, damaged feet and loose welds; inspect graphics for loose stitching, torn eyelets or UV brittleness.
• During event: walk the line each morning; re‑tension ties, replace any that have embrittled in the sun, and relieve overly taut corners.
• Cleaning: rinse dust and salt with fresh water; use mild detergent and a soft brush. Avoid pressure washers near hems/eyelets.
• Repairs: minor mesh tears can be patch‑sewn or taped from the rear; replace single eyelets with a hand press; for covers, restitch loose seams before they propagate.
• End‑of‑event triage: sort into reuse, light repair, or remake. Photograph damage and note panel IDs to streamline reorders.
• Storage: dry completely; roll or flat‑fold; store in tubs out of UV. Keep fixings and spares (ties, straps, patches) with each kit.

Detailed inspection and repair standards for barrier covers and mesh barrier signs

• Acceptance limits: retire or remake panels with UV cracking, rips >50 mm near edges, or >2 adjacent failed eyelets.
• Eyelet replacement: swap out single failed eyelets with matching 316 stainless/nickel-plated hardware; check surrounding hem for stitch integrity.
• Seam repairs: re‑stitch with UV‑bonded polyester thread (Tex 70–90) and a box‑X pattern at corners; heat‑seal loose mesh filaments with a hot knife.
• PVC mesh patching: rear‑apply a bonded patch and solvent‑weld where appropriate; avoid stiff patches that create stress points.
• Recordkeeping: log repairs against panel IDs; carry forward notes into the next pack sheet so field teams know which spares to pack.

Barrier signage order checklist

Use this checklist to brief our team and speed up proofing and production.

• Barrier type and size: standard 2.2 m CCB, extended 2.5 m, mini, or supplier/model details; measure inside width and visible height.
• Quantities: total panels by artwork; breakdown by site/zone; spares required (typically +5–10%).
• Product: Barrier Covers or Mesh Barrier Signs; single‑ or double‑sided print for covers.
• Finishing: hem size, eyelet spacing (400/450/500 mm), corner reinforcement, closures (zip/velcro) and bottom retainers if needed.
• Fixings: cable ties (size and colour), reusable straps or clips; count per panel (typically 12–14 on 2.2 m barriers) + 10% spare.
• Artwork: vector logos; hi‑res imagery; safe areas marked; bleed added; colour references; side A/B orientation for covers.
• Panel schedule: filename ↔ panel ID, location map, delivery sequence, packing by zone.
• Deadlines and access: event dates, bump‑in windows, site induction requirements, delivery contact and site address.
• Top-rail and side wrap: nominate wrap depth for covers (commonly 60–80 mm top, 30–50 mm sides) so artwork clears bends and closures.
• Wayfinding content (directional arrows, access notes) and any restrictions near roads/traffic control.
• Reusability plan: standardise sizes across venues; request neutral sponsor‑agnostic panels for repeat use.

Common mistakes to avoid with printed barrier covers vs mesh barrier signs

Avoid placing essential text within 50–75 mm of an edge or eyelet line, as ties and curvature can affect readability. Do not rely on signage alone to control hazards — it should support, not replace, site controls and procedures. For events, confirm any authority requirements before installing graphics near roads or on shared paths.

• Ignoring wind exposure: choose mesh for gusty sites to reduce load.
• Overbranding near regulatory signage: keep marketing distinct from safety and traffic signs.
• Skipping proofs: small copy errors become large and costly outdoors.
• Blocking barrier couplers or gates: plan cut-outs or panel breaks so emergency egress points remain clear.

Our in‑house capability and quality controls for printed barrier covers & mesh barrier signs

Sign Portal handles print and finishing under one roof for reliable lead times and consistent quality. Our workflow includes preflight checks, colour‑managed RIPs, and documented QA at each stage.

• Colour management: ICC‑profiled media with device‑link profiles; draw‑down swatches available for brand‑critical colours before full production.
• Finishing plant: industrial walking‑foot sewing machines for reinforced seams; hot‑knife cutting for sealed edges; in‑house eyeletting with stainless/nickel‑plated options.
• Site readiness: SWMS and insurances available on request; installers can provide Construction White Cards and EWP Yellow Cards where lifts are required.
• Packing: barcoded pack sheets and zone‑labelled cartons/pallets reduce install errors on multi‑site deployments.
• Turnarounds: typical lead time 3–7 business days from proof approval; express options available for urgent works.

Summary and recommendation

Use barrier covers when presentation and privacy are the priority and the site is sheltered or barriers are well stabilised. Use mesh barrier signs for wind‑exposed runs, rapid installation and long perimeters where airflow, handling and cost efficiency matter.

Still unsure? Combine both: deploy mesh along exposed edges and full covers at entries, sponsor backdrops and media zones. This hybrid approach often balances safety, impact and budget on Australian sites.

Next steps

• Get a fast quote: send your panel count and any drawings, or shop now: Printed Barrier Covers | Mesh Barrier Signs
• Ask about site packs: we can kit panels by zone with labelled cartons to reduce install time and counting errors.

Direct product access

Ready to order now? Choose your product and upload artwork:

• Printed Barrier Covers — premium double‑sided sleeves, tailored to your barrier size.
• Mesh Barrier Signs — breathable panels for fast installs and wind‑exposed runs.
