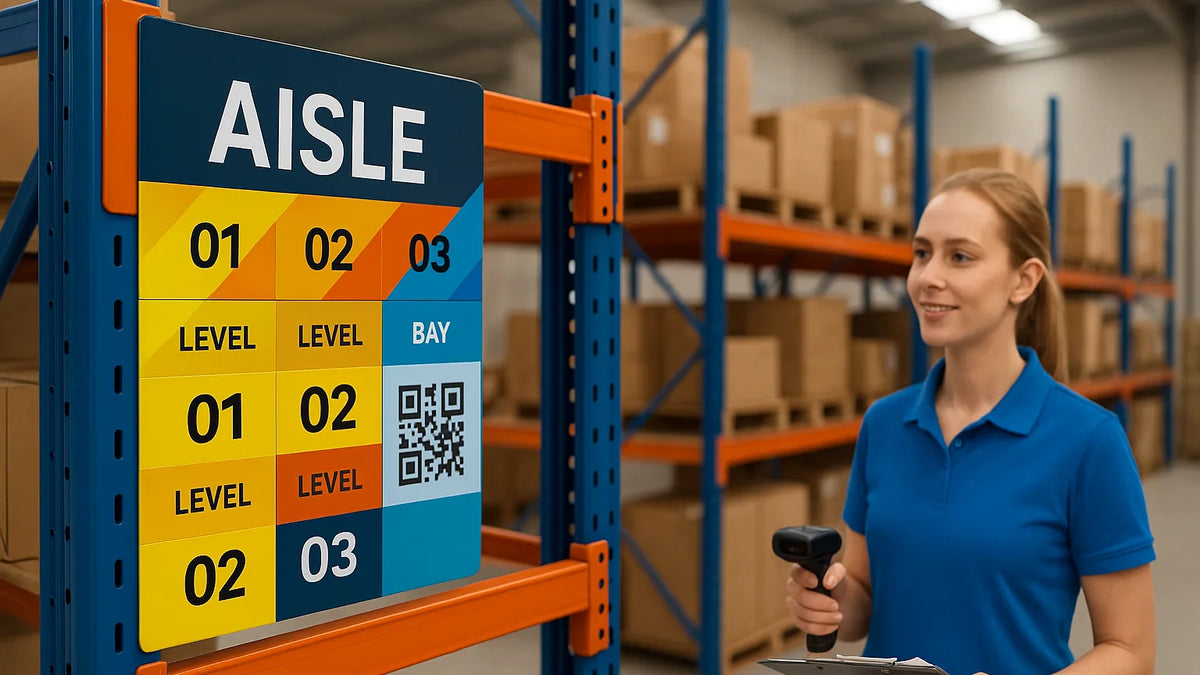

Racking and Aisle Identification Signs

What these signs do

Warehouse identification signage creates a shared language across the floor: aisles are named, bays are numbered, shelf levels are marked and bins or locations are labelled for quick scanning. Done well, staff can find any SKU with minimal thinking or backtracking.

In practice, that means pairing high-contrast letters, numbers and barcodes with materials and fixings that survive bumps, dust, cleaning and temperature swings. It also means planning a layout that makes sense from a forklift seat as much as on foot.

• Fast location finding reduces pick times and error rates.
• Consistent coding helps auditors, contractors and temporary staff.
• Durable construction resists knocks, dust and cleaning chemicals.

Looking for fixed end-of-aisle IDs? See our Aisle marker rigid panels (ACP or foam PVC) — engineered for long sightlines and high-bay lighting.

For large DCs and 3PLs, we print variable data direct from your WMS export and supply kitted packs by aisle to keep installation moving in sequence. On forklift routes, we pilot-test barcode sizes at working reach before you commit to a full roll-out.

Key components in a warehouse ID system

Most facilities combine several sign types so the code is visible from both distance and arm's length. Common components include:

• Aisle markers: large, high-contrast signs at aisle entries or overhead.
• Bay or frame markers: identifiers at the end of each racking bay.
• Level strips: labels along shelf beams noting level and location range.
• Bin or pick-location labels: small labels with barcodes/QR for scanning.
• Hanging directional signs: overhead flags where sightlines are blocked.

For end-of-aisle visibility, rigid panels keep IDs legible from cross-aisles and docks. If you need a ready-to-install option with pre-drilled holes and matte finish, order our Aisle marker rigid panels (ACP or foam PVC).

Material options and where they fit

Material choice depends on how close users are when reading, how often locations change and what the environment throws at the sign. Below are commonly used substrates and when they work best.

• Magnetic labels: Ideal for steel racking where locations change. Easy to reposition without residue. Best for bin and shelf labels.
• Self-adhesive vinyl: Low-profile option for beams and bins. Choose removable or high-bond to suit repaint cycles and substrate type.
• Rigid panels (ACP or foam PVC): Durable end-of-aisle or bay markers. Stand up to bumps better than thin labels. For a ready-to-install option, see Aisle marker rigid panels (ACP or foam PVC).
• Corflute (fluted polypropylene): Lightweight and economical for temporary or project-based layouts.
• Hanging panels (ACP or lightweight plastic): For long sightlines or to clear tall pallets; can be double-sided.

For dusty or UV-exposed dock areas, rigid panels with direct UV print and an optional matte laminate keep graphics legible longer. In cold rooms, select adhesives and plastics rated for low temperatures and avoid thick, brittle substrates that may crack.

• Cold chain: choose low-temperature acrylic adhesives rated to −20°C and plastics with impact modifiers.
• Food/clean rooms: specify matte laminate for cleanability and glare control; avoid porous substrates.
• High heat near docks: prefer ACP over foam PVC to minimise warping.

Technical notes:

• ACP: commonly 3 mm with aluminium skins; excellent flatness for long-range readability and low thermal movement.
• Foam PVC: 3–5 mm for weight-sensitive installs; choose higher-density grades for better screw retention.
• Magnets: 0.7–1.0 mm thick with multi-pole face improves grip on painted beams.
• Adhesives: high-bond acrylic tapes for end-panels; removable acrylics for re-slotting schedules.

Print quality and durability

Direct UV printing on rigid boards creates crisp, durable graphics with excellent barcode edge definition. For label rolls, print-and-cut production yields tight registration and clean corners for fast application.

At Sign Portal, rigid panels can be direct UV printed on our Mimaki JFX EX flatbed printers, then routed to size on the MultiCam SM2412. For labels and magnetic media we use the Roland VG-640 wide-format printer/cutter for integrated print-to-cut workflows.

• Matte finishes reduce glare under high-bay lighting and improve scan reliability.
• High-contrast colourways (e.g. black on yellow or black on white) read faster at distance.
• Edge rounding on rigid panels reduces snags during pallet movements.

• Barcode quiet zones: allow at least 10× the module width for linear codes and 4 modules for QR.
• Forklift scanning from 3–5 m: target Code 128 module (X-dimension) 0.50–0.76 mm with total code width 50–80 mm.
• Hand scanning at arm’s length: module 0.30–0.40 mm is typically sufficient.

Sign Portal quality control focuses on real read performance. We proof key sizes, check edge contrast, and validate quiet-zone clearance against ISO/IEC barcode guidelines before full production. Where requested, we can provide photographed test scans at target distances.

Numbering, sizing and colour coding

Keep numbering simple and predictable. Aisles often use large alphanumeric IDs, with bays and levels following a consistent left-to-right, ground-up sequence. Colour coding by zone helps cross-check at a glance and speeds training.

Common size choices range from small bin labels to large aisle markers readable from tens of metres. Rather than forcing standard sizes, match viewing distance to character height and barcode module size so staff do not need to step closer than necessary.

• Use the same colour for the whole zone and reserve accent colours for exceptions.
• Test a pilot run in a live aisle before rolling out across the site.
• Keep text short; long strings slow reading and increase scan time.

• Character height quick guide: ~50–75 mm for 8–15 m viewing; ~150–250 mm for 20–40 m viewing.
• Reserve the largest sizes for aisle markers visible on approach; medium for bay ends; small for pick-face labels.

Tip: A simple working rule is 1 mm cap-height per ~0.3 m viewing distance when sightlines are clear and lighting is good; increase size where glare, obstructions or operator movement are factors.

Barcodes, QR and data best practice

Whether you use linear barcodes or QR, consistency is everything. Ensure adequate quiet zones (margins) around codes, print them large enough for your scanners and keep codes away from beam radii that could distort reading.

For reflective or glossy surfaces, a matte laminate helps prevent hot spots under high-bay lights. If staff scan from forklifts, trial a few sizes at peak reach to confirm first-time read rates.

• Keep human-readable text directly below or beside the code.
• Avoid dark substrates behind black codes; maintain strong contrast.
• Provide a data spreadsheet (CSV/XLSX) with exact field order for variable data printing.

• Use a consistent data schema across zones (e.g. Aisle–Bay–Level–Bin) and include leading zeros if your WMS expects fixed-length fields.
• Position codes at least 10 mm from beam edges, radii or rivets to avoid distortion.

Sign Portal handles data merges at scale. We preflight your CSV/XLSX against your schema, preserve leading zeros, and lock module size through RIP so scaling never compromises scan performance.

Mounting and fixing options

Mounting should be secure, repeatable and low-effort for maintenance. Choose a method that suits the substrate and whether the location will change.

• Magnetic backing: Quick to move; ideal for dynamic bin locations on steel beams.
• High-bond adhesive: Low-profile, semi-permanent; ensure the beam is clean and oil-free.
• Mechanical fixings: Screws or rivets into end panels (not structural members) for rigid bay or aisle signs.
• Cable ties: For mesh or wire decking; pair with pre-drilled rigid panels.
• Overhead suspension: Chain or wire kits for double-sided aisle markers above pallet height.

Surface prep matters: degrease with isopropyl alcohol (IPA), allow to flash off, then apply with firm pressure. On low-surface-energy paints or powdercoat, trial a primer and a higher-tack adhesive in a discreet spot.

Magnetic labels versus rigid panels

Both are common in warehouses, but they solve different problems. Use the quick reference below to match the medium to the job.

Sightlines and placement planning

Place large identifiers where a driver can confirm location on approach, and smaller labels where the pick happens. Avoid placing labels where pallets, slip-sheets or stretch-wrap often cover them. Angle labels slightly if scanning from below to reduce glare.

• Mount aisle markers at consistent heights for pattern recognition.
• Keep labels clear of impact zones and forklift turning arcs.
• Use double-sided hanging signs where back-to-back aisles share an approach.

Where glare is persistent, angle end-of-aisle markers 10–15° away from luminaire hot-spots, or specify matte laminate. For very long aisles, consider mid-aisle repeaters to keep confirmation within a single glance.

Artwork and ordering checklist

A smooth rollout starts with clean artwork and structured data. Provide vector logos or icons where used, and a complete location list for variable data printing.

• Supply artwork as vector (PDF/AI/SVG) for fixed elements; raster at 150–300 DPI at size.
• Provide CSV/XLSX with fields for aisle, bay, level, bin, barcode/QR and human-readable text.
• Nominate material, finish (matte/gloss), backing (magnetic/adhesive) and any edge rounding.
• Confirm colour coding by zone and any directional arrows or icons.

Sign Portal workflow highlights:

• Data preflight locks barcode module size and preserves leading zeros.
• Nesting and kitting by aisle to match your install order and map.
• Label sheets and panel stacks are clearly tagged with zone/aisle IDs for zero-guesswork installs.

How we manufacture your signs

Rigid aisle and bay markers are direct UV printed on our Mimaki JFX EX flatbed printers for crisp, durable graphics. Panels are then routed to size and shape on the MultiCam SM2412, including holes or slots for cable ties where needed.

For labels and magnetic media, the Roland VG-640 wide-format printer/cutter handles colour-critical print and precise kiss-cutting. Where acrylic or thin plastics are required, our Trotec Speedy 500 laser creates clean edges and small cut-outs.

• Optional laminating (matte) to reduce glare and improve cleanability.
• Kitting by aisle or zone to speed installation and reduce site handling time.
• Quality checks for barcode contrast and quiet-zone clearance.

• File preflight ensures barcodes retain required module size after RIP and scaling.
• Panel edge-rounding and deburring reduce snag risks during pallet movements.
• Pre-drilled slot patterns available to suit common mesh and end-panel geometries.

Delivery and install preparation

Orders are packed by zone with clear labels so installers can move methodically down each aisle. For regional and remote sites, cartons are reinforced for linehaul and clearly marked to match your plan.

• Walk the first aisle with a tape measure and marker to validate positions.
• Clean beams before applying adhesive labels; test one before full run.
• Stage hardware (ties, screws, tape) and safety equipment before starting.

• Include a printed map or drawing set in the first carton of each zone.
• Use install packs (zip-tied bundles by bay) to keep items in sequence.

On request we can supply install packs labelled to your drawing references, plus a simple method statement covering access equipment, PPE and sequencing to streamline site induction.

Maintenance and updates

Plan for a quick quarterly walk-through to spot peeling labels, scuffed markers and data changes. Replace damaged items immediately to prevent scanning retries and mis-picks.

• Wipe labels with a soft cloth and mild detergent; avoid aggressive solvents.
• Inspect adhesive edges in warm dock areas and magnets in vibration zones.
• Keep a few spare panels and a roll of blank magnets for urgent changes.

Where traffic is heavy, consider upgrading impact-zone pieces to rigid ACP with rounded corners and matte laminate to extend service life.

Repair and refurbishment

Most warehouse ID systems can be repaired in situ without full replacement. Prioritise fast restoration of scanning reliability, then aesthetics.

• Scuffed rigid panels: clean, lightly abrade if needed, and apply a replacement face (printed self-adhesive) to the existing panel.
• Lifting labels: remove with plastic scraper, degrease beam with isopropyl alcohol, then reapply using a higher-bond or low-temp adhesive as the environment dictates.
• Damaged corners: replace with rounded-edge ACP panels to reduce repeat impact.
• Data change: over-label with a matte replacement only if barcode module size and quiet zones remain within spec; otherwise reprint.
• Overhead signs: swap out via pre-drilled and labelled spares to minimise MEWP time; keep chain/wire kits reusable.

Repair workflow from Sign Portal:

• We retain print proofs and data snapshots to simplify one-off reprints.
• For urgent replacements, we can produce colour-matched matte overlabels to restore readability the same day, with full-panel reprints to follow if required.

Troubleshooting common issues

Most issues trace back to sizing, contrast or mounting. Use the guide below to diagnose quickly.

• Poor scan rates: Increase code size, switch to matte, or improve contrast.
• Labels lifting: Reclean beam, use higher-bond adhesive or move to magnetic on steel.
• Wrong picks in a zone: Simplify numbering, enlarge aisle markers, add colour coding.
• Damage at pallet level: Move labels above impact line or use rigid panels with rounded edges.

If problems persist, send us photos of the area, approximate viewing distances and scanner type. We will recommend a tested module size and finish, and can provide sample pieces to trial in your worst-case aisle.

Cost considerations

Project cost is driven by material selection, label or panel size, variable data complexity, finishing (laminate, edge rounding), fixing hardware and kitting/packaging. Freight to regional or remote locations and after-hours installation windows can also influence total cost.

• Standardising sizes across zones reduces setup time.
• Batching variable data in one file streamlines production.
• Choosing one finish (e.g. matte throughout) improves consistency and reduces changeovers.

Fixed, high-visibility IDs often benefit from ACP or foam PVC. For an off‑the‑shelf solution with options for double-sided layouts and pre-drilled fixings, see Aisle marker rigid panels (ACP or foam PVC).

Sustainability notes

Where possible, choose substrates that match your site's recycling streams. Fluted polypropylene is widely recyclable in many programmes, while rigid composites can be long-life options that reduce replacement frequency. Magnetic media enables reuse during re-slotting, which can cut waste during frequent layout changes.

Warehouse signage planning checklist

Use this checklist to scope and brief your project efficiently.

• Site plan: confirm zones, aisle count, racking heights and approach directions.
• Data: export current WMS location list with required human-readable fields and barcode symbology.
• Coding rules: define aisle/bay/level/bin conventions and any colour coding by zone.
• Viewing distances: nominate approach distances for aisle markers and typical pick distance at the face.
• Materials: choose per area (labels, magnets, ACP/foam PVC panels, corflute for temporary).
• Fixings: agree on adhesive/magnetic/mechanical/overhead methods by location.
• Sizes: set character heights and barcode module sizes to match scanner performance.
• Environment: note cold rooms, washdown areas, high-UV docks, and traffic impact zones.
• Artwork: supply logos/icons and any mandatory brand colours.
• Kitting: specify packing by aisle/zone with install sequence and map inserts.
• Safety: confirm access equipment, install windows and racking-supplier requirements.
• Spares: include a percentage of spare labels/panels for future changes.
• Maintenance: plan cleaning method and quarterly inspection routine.
• Repair pathway: define who can authorise reprints and how updates flow back into the master dataset.
• Scanner validation: list scanner models and test barcode sizes at longest read distance.
• Pilot criteria: define acceptance metrics (first-time read rate, time-to-find, visibility on approach).
• Sign-off pack: nominate who signs off proofs, samples and the as-built map set.

When to choose Sign Portal

Our in-house print, cut and finishing capability means we control quality and timelines end to end. We can kit by aisle, print variable data from your spreadsheets and ship Australia-wide, including regional and remote delivery.

• Two Mimaki JFX EX flatbeds for fast, colour-stable rigid panels.
• Roland VG-640 print/cut for precise labels and magnets.
• MultiCam SM2412 CNC routing and Trotec Speedy 500 laser for clean edges and cut-outs.

Process confidence from Sign Portal:

• Barcode and contrast checks against ISO/IEC guidelines on sample sets before full production.
• Data-locked RIP setup so your smallest module size is preserved from proof to final.
• Job tickets and kitting labels mirror your zone/aisle IDs to reduce install errors.

For fixed, high-visibility IDs start with our Aisle marker rigid panels (ACP or foam PVC). Provide your spreadsheet and we’ll return kitted, install-ready packs aligned to your racking plan.
