Safety Sign Colours and Shapes in Australian Workplaces Explained

Quick reference summary

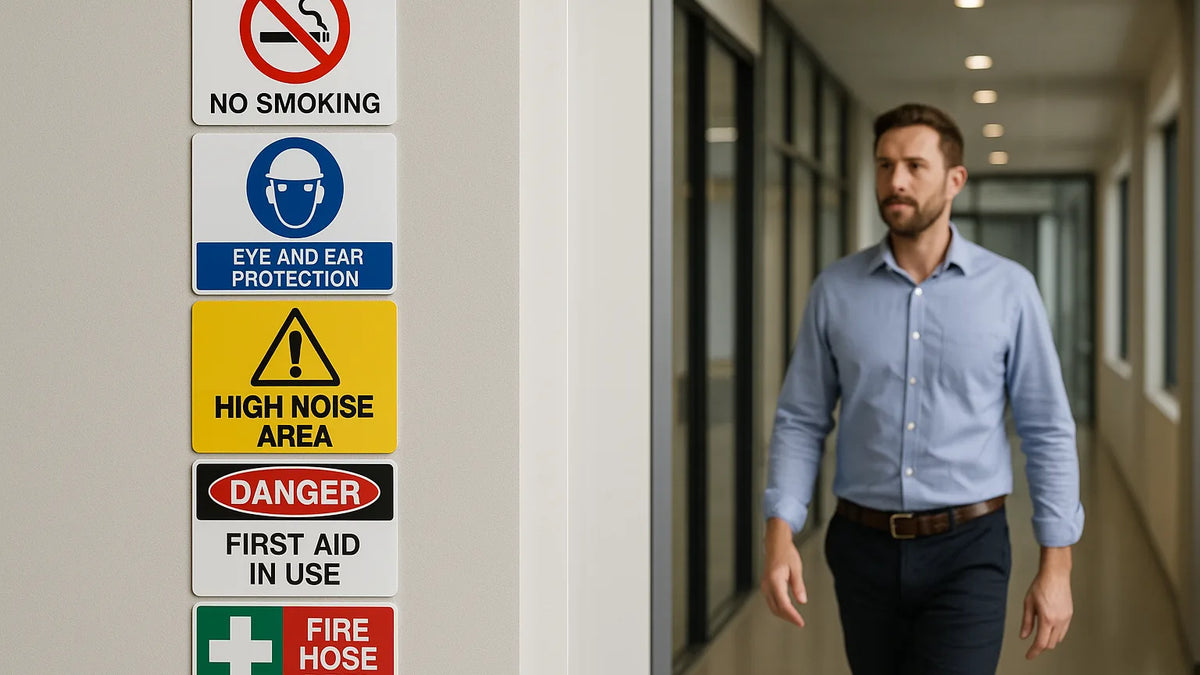

Safety signs in Australian workplaces are grouped by purpose and instantly recognisable by their colour and shape. While wording and symbols vary by hazard, the category colours and shapes are consistent so the intent is clear before you read a word.

• Prohibition: Red circle with a diagonal slash over a black symbol — action is not allowed.
• Mandatory: Solid blue circle with a white symbol — an action or PPE is required.
• Warning: Yellow triangle with black border and symbol — be cautious about a specific hazard.
• Danger: Red, black and white header panel — indicates a life‑threatening hazard.
• Emergency information: Green rectangle with white symbol/text — first aid, exits, emergency equipment.
• Fire: Red rectangle with white symbol/text — fire equipment identification and direction.

In Australia, these categories follow AS 1319:1994 Safety signs for the occupational environment. Use the category that matches the intent, then apply a clear symbol and short wording. Where chemical labelling is required, use GHS red diamond labels in addition to safety signs (see compliance section below).

Category integrity matters for instant comprehension. Under AS 1319, each category has defined visual cues so workers can understand intent at a glance. Keep backgrounds neutral (white for prohibition/mandatory/most warnings), avoid decorative borders, and do not place multiple categories on a single panel unless the layout clearly separates them into discrete messages.

Colour and shape meanings

Prohibition

Use prohibition when a behaviour must not occur. The red circle with a diagonal slash is universally understood as “no”. Common examples include no smoking, no entry, no mobile phones and no forklifts beyond this point.

• Colour/shape: Red annulus and slash over a black pictogram.
• Use when: You need to stop an unsafe act outright.
• Wording tips: Short, direct phrases such as “No entry” or “Do not operate”.

Category review: AS 1319 treats prohibition as a regulatory sign. Keep the pictogram black on white, ensure the red annulus and slash remain dominant, and avoid adding green or blue elements that imply permission or requirement.

Design note: Ensure the slash runs top‑left to bottom‑right and visibly intersects the behaviour (the pictogram), not empty space. Maintain a clear white margin around the circle so the red annulus reads cleanly from a distance.

Mandatory

Mandatory signs tell people what they must do to be safe. The solid blue circle frames a white symbol — for example, safety glasses required or hearing protection must be worn.

• Colour/shape: Blue filled circle with a white pictogram.
• Use when: PPE or a specific action is compulsory.
• Wording tips: “Must” statements such as “Wear eye protection”.

Category review: A mandatory sign controls behaviour. Do not use a blue circle with a “No …” message — that conflicts with AS 1319 and creates confusion at a glance.

Design note: Present only one required action per panel where possible (e.g. eye protection). If multiple controls are genuinely required at the same location, stack separate mandatory symbols in a vertical set so each remains legible.

Warning

Warning signs alert you to a hazard that needs caution. The yellow triangle helps catch attention without implying immediate extreme danger. Typical uses include wet floor, low headroom, moving machinery or slippery surface.

• Colour/shape: Yellow equilateral triangle with black border and symbol.
• Use when: A specific hazard requires care or slower movement.
• Wording tips: “Caution” or “Warning” on a single hazard at a time.

Category review: Use warning (yellow) for non‑life‑threatening hazards. If the credible risk is death or serious injury without controls, escalate to a danger sign so the header conveys urgency instantly.

Design note: Choose a single, unambiguous pictogram (e.g. “overhead load” or “trip hazard”), and keep supporting text short. Avoid mixing multiple hazard icons inside one triangle.

Danger

Danger signs are reserved for hazards that could kill or cause severe injury if controls are ignored. Use them sparingly so they retain impact. Examples include confined space entry, live electrical switchboards or unguarded pits.

• Colour/shape: A bold header featuring red, black and white to distinguish from other categories.
• Use when: There is a credible risk of death or serious harm.
• Wording tips: State the hazard first, then the instruction — e.g. “Danger — Live switchboard. Authorised personnel only.”

Category review: Under AS 1319, the distinctive DANGER header in a red oval on a black rectangle is used with a clear hazard legend. Do not dilute a danger sign by combining it with multiple unrelated warnings on the same panel.

Design note: Keep the DANGER header unobstructed and proportionally large so it reads first. Avoid adding extra colours beneath the header that could visually compete with it.

Emergency information

Emergency information signs help people find help fast. Green indicates safe conditions or directions to safety: first aid rooms, eyewash stations, emergency showers, muster points and exits.

• Colour/shape: Green rectangular panel with white symbol/text.
• Use when: Directing to safety equipment, exits or first aid.
• Wording tips: Use arrows and concise labels; ensure consistency across the site.

Category review: For exits and emergency escape, follow the AS/NZS 2293 series for the running‑man pictogram, luminance and placement. Emergency information signs complement (but do not replace) compliant illuminated exit signs where required.

Design note: Keep arrow orientation consistent on a site (e.g. up‑right for “ahead and right”). Where an item is not visible from the sign, add a distance or level indication (e.g. “First aid — 20 m”).

Fire safety

Fire signs identify fire equipment and its location so it can be found quickly under stress. Keep the field of view clear — avoid mounting them behind doors or shelving.

• Colour/shape: Red rectangular panel with white symbol/text.
• Use when: Marking extinguishers, hose reels, hydrants and alarms.
• Wording tips: Use equipment type and directional arrows if the device is not directly below the sign.

Category review: AS 2444 guides extinguisher selection and location; use red/white fire identification and directional signs so appliances are visible from approach paths and across open areas.

Standards and compliance in Australia

This guide aligns with commonly used Australian standards and WHS guidance. Always consult the current edition of the standard and your site risk assessment:

• AS 1319:1994 Safety signs for the occupational environment: Defines categories, colours and general design rules for workplace safety signs.
• AS/NZS 2293 (Emergency escape lighting and exit signs): Specifies exit sign design, luminance and placement requirements for buildings.
• AS 2444 (Selection and location of portable fire extinguishers and fire blankets): Informs where fire appliances and their identification signs must go.
• GHS labelling for hazardous chemicals: Use red diamond labels in line with WHS Regulations and the Safe Work Australia Model Code of Practice “Labelling of workplace hazardous chemicals”. See Safe Work Australia: Model Code of Practice.
• General regulator guidance on safety signs: SafeWork NSW — Safety signs.

Note: Some facilities may adopt ISO pictograms to support a diverse workforce. Keep the AS 1319 colour/shape category intact so intent is recognisable at a glance.

Technical sources and practical notes:

• WHS Regulations (Model): Duties to manage risks and provide information, training and instruction (including signage) are set out in the model WHS Regulations Part 3.2 and Reg. 40 (Facilities). See Safe Work Australia consolidated regulations: Model WHS Regulations.
• Emergency signage: Building compliance for exit signs also intersects with the NCC (Building Code of Australia). Refer to NCC Volume One Section E (E4 Exits) for when illuminated exit signs are mandated: Australian Building Codes Board (NCC).
• Colour consistency: AS 1319 references Australian colour standards for category colours. Use colour‑managed production so red/blue/yellow/green areas remain within tolerance under high UV exposure.
• Retroreflective materials: For vehicle approaches or low‑light areas, select reflective classes to AS/NZS 1906.1 (e.g. RA1/RA2) and mount to smooth, rigid substrates to preserve photometric performance.

Choosing the right sign

Selecting the correct category and design is a simple flow: identify the hazard, decide the required behaviour, then match the colour and shape. If you are banning a behaviour, that is prohibition; if you are enforcing a behaviour (like PPE), that is mandatory; if you are alerting to a hazard, that is warning or danger depending on severity; if you are directing people to safety or equipment, use emergency or fire.

• Who needs to see it? Workers, contractors, visitors or the public — their familiarity affects symbol choice and text size.
• Where will it be viewed? Indoors vs outdoors, line‑of‑sight distance, height, lighting and obstructions.
• Do you need symbols, words or both? Symbols aid quick recognition; text clarifies specifics (“Hearing protection must be worn in this area”).
• Any chemical hazards? Storage and decanting may require separate hazard labelling using red‑bordered diamonds for chemicals.
• Environmental factors: Sun exposure, heat, dust, moisture and coastal salt drive substrate and ink choices.

Practical sizing rule of thumb: for pedestrians, aim for a minimum 5–7 mm text x‑height per metre of viewing distance; for moving plant areas, prioritise larger symbols and fewer words so the message is legible at speed.

Applied example: A forklift crossing on a 10 km/h aisle is best served by a large symbol‑led sign (≥300 mm symbol height) and minimal wording, mounted at driver eye‑line on the approach side.

Material and size considerations

Choosing the right substrate ensures the sign stays legible and present for long enough to be effective. At Sign Portal we manufacture safety signs in‑house on common substrates for Australian conditions, including rigid panels and self‑adhesive options.

• Aluminium composite panel (ACP): Rigid, dimensionally stable and suitable for outdoor mounting on fences, posts and walls. Direct UV printing creates high‑contrast graphics.
• Corflute: Lightweight fluted plastic ideal for temporary sites and construction hoarding.
• Foam PVC: Smooth indoor panels for facilities, plant rooms and corridors.
• Self‑adhesive vinyl: Labels for machinery, doors, equipment and curved surfaces; can be laminated for extra abrasion resistance.
• Reflective vinyl: Improves visibility in low light or when illuminated by headlights; commonly applied to ACP or sign‑grade aluminium blanks.

For night visibility near vehicle routes, consider retroreflective classes to AS/NZS 1906.1 (e.g. RA1/RA2 sheeting) paired with a clear overlaminate to extend service life. For coastal or mining sites, opt for corrosion‑resistant fixings and UV‑stable materials.

Size affects viewing distance. Larger panels and bold symbols increase the chance the message is seen in time, especially in busy industrial areas. If in doubt, go bigger and keep the message to one clear instruction.

Sign Portal finishing options and installation‑ready details:

• Standard corner radii (typically 5–10 mm) to reduce sharp edges and damage risk during handling.
• Pre‑drilled holes (commonly 6–8 mm) positioned for cable ties or masonry fixings; slotting available for adjustable mounts.
• Overlaminates: gloss, matte and anti‑graffiti (sacrificial) films for high‑touch areas.
• Adhesive systems matched to substrate: high‑tack acrylics for low‑energy plastics; VHB‑type tapes with surface primers for smooth metals.

Artwork and legibility

Clear artwork makes the category colour and shape do their job. Use vector icons and keep pictograms simple. Avoid crowding multiple messages onto one panel — it slows comprehension.

• High contrast: Use strong symbol/ground contrast. Do not swap the category colours.
• Vector files: Supply vector artwork (PDF, EPS, SVG, AI) for crisp edges and scalable symbols. High‑resolution PNG is acceptable for simple elements.
• Short wording: Fewer words read faster. State the hazard or instruction plainly.
• Consistency: Use the same terminology across the site to reduce confusion.

Sign Portal preflights files to check fonts, colour spaces and cut paths. We use colour‑managed ICC workflows and target repeatability for reorders, so a sign replaced years later still matches your existing set.

Practical legibility details we check in‑house:

• Minimum safe margins around symbols and headers so category shapes are not crowded by text.
• Mixed‑case wording for longer legends (improves readability) and sentence‑style phrasing where clarity benefits.
• Arrow size and placement kept outside the primary symbol so direction is unmistakable.

Placement and installation

Placement should let people see and understand the message before they reach the hazard. Keep sightlines clear and mount at a height appropriate to the traffic (pedestrians vs forklift drivers).

• At entries to areas where rules change (PPE zones, restricted rooms).
• Immediately before a specific hazard (low beams, hot surfaces, moving plant).
• At decision points (forklift crossings, alternative routes, shut‑off valves).
• Well‑lit locations, avoiding shadows and glare.

Fixings vary by surface. Typical options include stainless screws with washers into timber or masonry (with appropriate anchors), VHB tape and sealant on smooth walls, cable ties to temporary fencing, or adhesive vinyl to clean, dry, non‑dusty substrates. For reflective panels, minimise fastener shadows that can interfere with retro‑reflectivity at night.

Installation tips: target 1.5–1.8 m to the bottom edge for wall‑mounted pedestrian signs; raise to driver eye‑line for plant traffic. Clean surfaces with isopropyl alcohol before applying self‑adhesive graphics, and avoid silicone‑contaminated paints. Angle outdoor panels slightly off perpendicular to reduce glare.

Hardware specifics we supply on request: 316 stainless screws and nyloc nuts for coastal sites, 8 mm rivets with neoprene washers for sheet steel, stainless banding kits for poles, and surface primers compatible with high‑bond tapes.

Inspection and maintenance

Inspect signs during routine safety walks. Look for fading, vandalism, peeling edges, bent panels or obstructed views. Wipe down with mild detergent and fresh water; avoid harsh solvents that can dull laminates or attack adhesives. Replace any sign that is illegible, damaged, outdated or routinely ignored.

Maintenance cadence: include signs in monthly housekeeping checks and after any process change. In high‑UV or coastal areas, plan for earlier replacement of non‑reflective stickers (typically 2–4 years) and longer life for laminated or reflective panels when correctly installed.

Sign Portal QA field tips:

• Record install dates on the back of panels; photograph the installed sign and attach to your register.
• For vinyl, spot‑test cleaners on a corner; avoid citrus or aromatic solvents that can soften adhesive.
• Where graffiti is a risk, specify anti‑graffiti laminate and clean within 24–48 hours for best results.

Common mistakes to avoid

• Mixing colours and shapes (e.g. a red rectangle for a warning message).
• Combining too many messages on one panel, reducing legibility.
• Mounting too high or too low for the viewer population.
• Using light text on a light background or low‑contrast symbolography.
• Hiding emergency or fire signs behind doors, plants or racking.
• Forgetting night‑time visibility where vehicles operate — consider reflective materials.

Manufacturing and durability

As an Australian manufacturer, Sign Portal produces safety signs in‑house for fast, consistent output. Direct UV printing on rigid panels is handled on our Mimaki JFX EX flatbed printers, delivering crisp edges and durable colour on ACP, Corflute and Foam PVC. For labels and decals, our Roland VG‑640 wide‑format printer/cutter produces contour‑cut vinyl graphics, including reflective and over‑laminated options.

When panels need rounded corners, holes, slots or custom shapes, our MultiCam SM2412 CNC router machines ACP to precise registrations. For smaller tags, stencils and intricate symbol cuts, our Trotec Speedy 500 laser and large‑format 230 W CO2 laser produce clean edges in acrylics, laminates and plastics.

These processes help ensure category colours and shapes remain clear under Australian conditions such as high UV, heat, dust and coastal air. If you operate in harsh outdoor or mining environments, discuss substrates and finishes that balance lifespan, weight and mounting method.

Quality assurance at Sign Portal includes file preflight, press‑side colour checks, and batch traceability from print to dispatch. We retain production settings against your job number so reorders match the original set for colour and finish.

First‑party authority and proof‑of‑performance:

• Colour managed with device‑linked ICC profiles and spectrophotometer verification on production swatches for consistent category colours across substrates.
• Adhesion validation using cross‑hatch tape tests on random batches prior to dispatch; finish checks on laminates and reflective films.
• Retroreflective lots labelled with sheeting class and batch IDs to support on‑site compliance checks against AS/NZS 1906.1.
• Documented reprint matching: stored RIP settings and cut files paired to your job number reduce colour mismatch risk on like‑for‑like replacements.

Reordering and compliance records

Once a sign set is approved for your site, keep a register of locations and quantities so replacements can be ordered quickly. Our Trade Portal can store customer‑specific catalogues for repeat ordering and version control, helping maintain consistency across multi‑site operations and remote projects.

Enhance your audit trail: we can add discreet job numbers or QR codes on the back of panels that link to digital proofs, install dates and maintenance notes in your asset register.

Ordering, delivery and repair

Ordering

• Scoping: Send your risk register, floor plans or photos; we’ll map sign categories to hazards and traffic flows.
• Artwork proofing: We supply digital proofs with clear categories, arrows and fixings, typically same day for standard sets. Your approvals are stored against the job number for audit.
• Production: Colour‑managed UV or solvent/UV‑latex workflows matched to substrate; CNC/laser finishing to final size with rounded corners and mounting holes as specified.

Additional ordering support from Sign Portal:

• Category review calls for complex sites (confined spaces, shared traffic zones) to confirm Danger vs Warning deployments.
• Symbol selection aligned to AS 1319 categories with optional ISO pictogram variants to support multicultural workforces.
• Material matrix recommendations (e.g. reflective on traffic‑exposed faces only) to balance cost and durability.

Delivery

• Packaging: Panels are bagged, corner‑protected and boxed; larger sets are pallet‑wrapped. Labels show job number, location codes and re‑order SKUs.
• Lead times: Stock designs often dispatch next business day; custom sets typically 2–5 business days depending on volume and finishing.
• Documentation: Packing list and installation notes included; serialised batch stickers support your compliance records.

Service levels: Same‑day Sydney metro courier options are available for urgent repairs; regional and interstate consignments are tracked and insured with photo evidence at dispatch.

Repair and replacement

• Like‑for‑like reprints: We reproduce signs from your stored artwork and colour settings so replacements match on site.
• Overlay fixes: For minor wording changes or vandalism, we can supply surface overlays or symbol patches sized to your existing panels.
• Hardware refresh: Ask for new fixings (stainless screws, rivets, cable ties) and surface‑prep wipes with your order to streamline repairs.

Field repair kit option: include alcohol wipes, primer sticks for VHB‑type tapes, spare cable ties, stainless fasteners, anti‑graffiti wipes and an installation height guide in one carton.

Result on the ground: consolidating categories, sizing up key panels and upgrading substrates typically reduces missed messages and rework. Customers report faster inductions and clearer audits when signs follow a consistent AS 1319 pattern throughout the site.
