Traffic & Parking Signs: Colours, Symbols and Meaning Explained

What these signs are for

Traffic and parking signs communicate road and car park rules without ambiguity. They use consistent colours, symbols and arrows so drivers can understand them in seconds while moving.

In Australia, public road signage is controlled by state and territory road authorities. For private property, strata and workplace car parks, you are generally free to install your own signs, but mirroring public conventions avoids confusion and reduces risk.

Ready to order? Configure compliant plates, arrows, posts and fixings here: Custom Traffic & Parking Signs.

Sign Portal designs follow AS 1742/1743 conventions for symbol geometry and the AS 1744 series alphabets for road signs, so your private car park plates read like the public system without implying authority where it is not intended.

Need a fast bill of materials and instant pricing? Build it online now: Custom Traffic & Parking Signs.

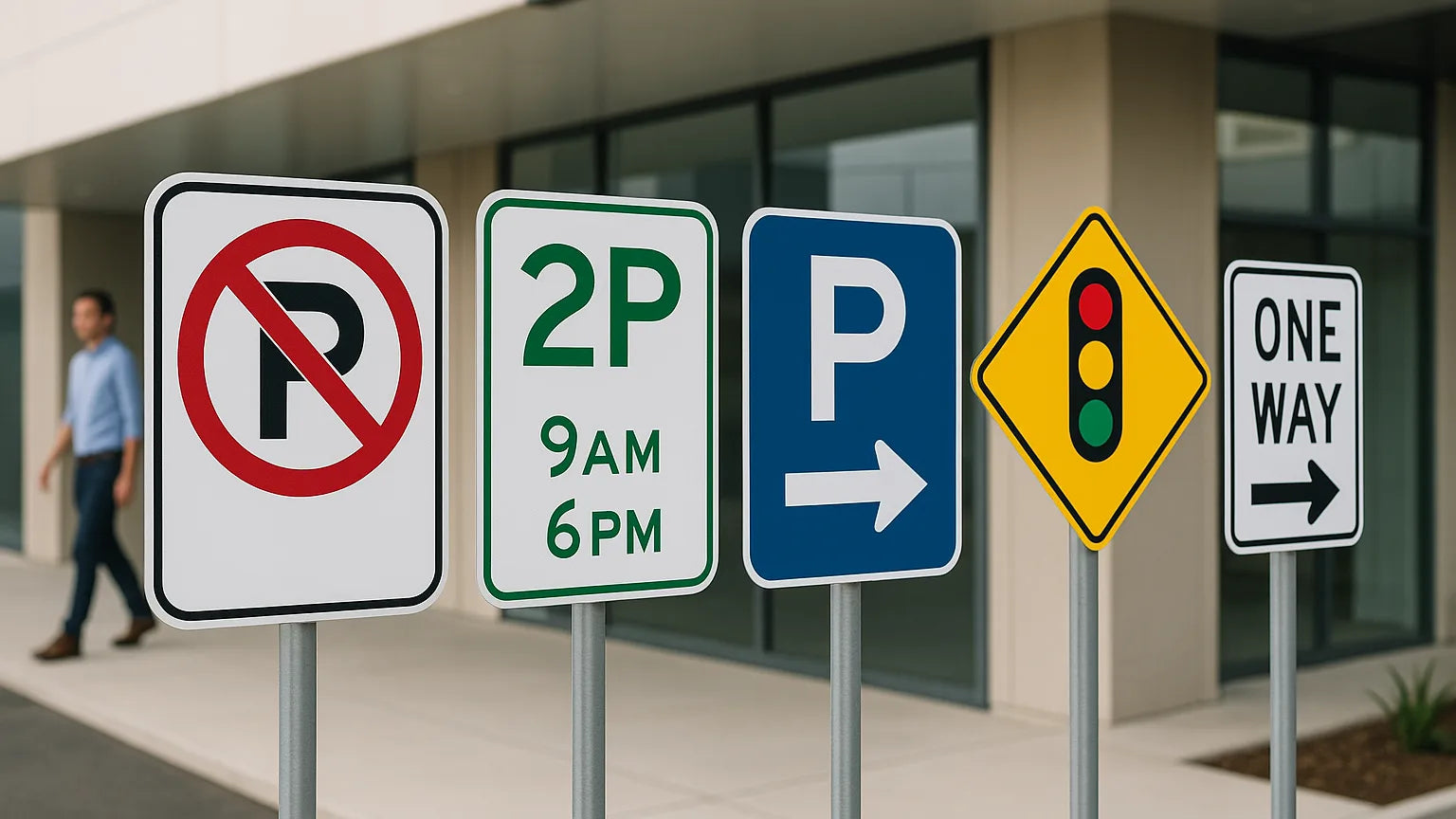

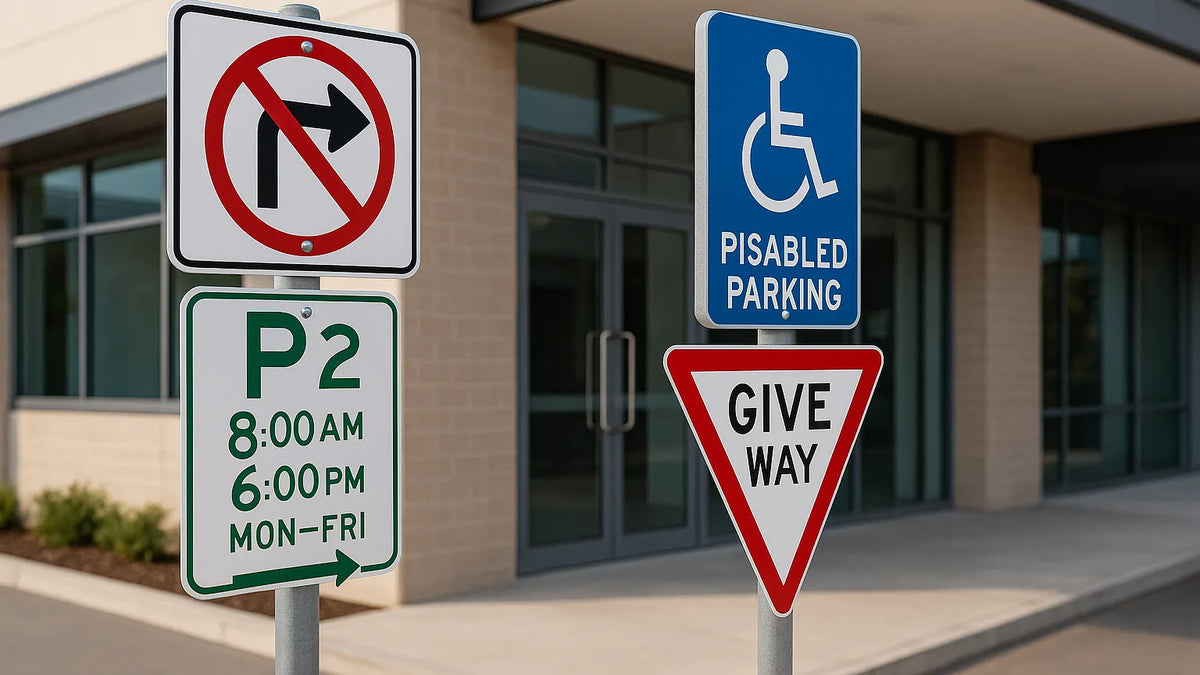

Colour coding at a glance

Colours carry meaning before a driver can read a word. While exact specifications for public roads come from your road authority, these conventions are widely recognised across Australia.

• Red: prohibition and stop controls. Typical uses: No Stopping, No Parking, Do Not Enter.
• Green: permissive directions and parking that is allowed under stated conditions. Typical uses: 1P/2P limits, directional arrows.
• Blue: information and facilities. Typical uses: Accessible parking symbol, general information, amenities.
• Yellow/Amber: warnings and caution. Typical uses: speed humps, shared zones, pedestrian activity.
• Black & White: regulatory details and speed numerals; black text or symbols on white backgrounds are used for enforceable information panels.
• Orange: temporary or works signage in construction zones and events.

Using the correct colour immediately primes a driver for the type of instruction: red to stop or avoid, green to proceed under conditions, blue to locate services, and yellow to take care.

Common symbols and what they mean

Symbols remove the need for lengthy wording and remain readable at a distance. Keeping symbol style consistent across a site helps wayfinding and reduces errors.

Arrows and direction

Arrows indicate precisely where the rule applies. A left arrow typically applies to the area left of the sign; a right arrow to the right; a double-headed arrow means both directions from the sign’s location. Vertical arrows can indicate specific bays or levels.

Time plates and conditions

Parking control plates combine a duration code and time ranges. For example, “2P” means a maximum of two hours during the times shown. Additional lines can indicate days, paid parking requirements, or special permit exemptions.

Accessibility and special bays

The wheelchair symbol denotes accessible parking. Other bay symbols include motorcycles, loading zones, electric vehicle charging, and taxi/ride-share areas. Pairing a clear symbol with the right colour coding increases compliance.

Regulatory versus advisory

Regulatory signs instruct legal requirements, while advisory or warning signs help drivers anticipate risks. Understanding the distinction helps you choose reflectivity, size and placement appropriate to the risk level.

Decoding parking time plates

Time-limited parking signs combine duration codes, time ranges, and sometimes permit or payment conditions. Learning the pattern helps you brief designs and avoid contradictory layouts.

• Duration code: 1P, 2P, 4P, etc., indicating the maximum continuous time allowed during stated periods.
• Days and times: If times are shown (e.g., 8am–6pm Mon–Fri), the limit applies only then; outside those times, parking may be unrestricted unless another sign says otherwise.
• Permit or paid overlays: Lines such as “Permit Holders Excepted” or “Ticket” indicate who can exceed limits or when payment is required.
• Arrows: A left/right arrow clarifies which bays are affected; a centre arrow can indicate a specific bay.

Materials, reflectivity and longevity

Choosing the right substrate and finish ensures your signs remain legible despite UV, rain, dust and impacts. Australian conditions can be harsh, especially in coastal and high-UV regions.

• Substrates: Aluminium and aluminium composite panel (ACP) are popular for rigidity and corrosion resistance. Corflute can suit short-term works zones; foam PVC is generally better reserved for indoor areas.
• Reflective films: Reflective vinyl improves night and low-light visibility. Higher-grade films tend to appear brighter at distance and wider viewing angles. Select reflectivity based on risk, lighting and whether vehicles move at speed.
• Protective laminates: UV-protective and anti-graffiti laminates help resist fading, abrasion and vandalism. They also make cleaning easier.
• Fixings: Consider pre-drilled holes, channel for post mounting, stand-off mounts for walls, or fence wire ties. Stainless hardware resists corrosion, especially near the coast.

At Sign Portal, rigid panels can be UV flatbed printed for high-opacity graphics and then cut to shape for clean edges. Reflective graphics can be plot-cut and applied with overlaminate for durability.

Reflectivity grades and Australian standards

• We manufacture with retroreflective sheeting compliant to AS/NZS 1906.1. Grades are selected to match the speed environment and authority requirements (for example, higher-grade prismatic sheeting for higher approach speeds or critical decision points).
• Where projects reference AS 1742 and AS 1743 conventions, we size and format legends to those patterns (e.g., regulatory black-on-white with red annulus/diagonal, standard border weights, arrow geometry and x-height ratios).
• For private property, we can mirror the public-road look-and-feel for familiarity while tailoring content to workplace rules and site-specific risks.

Common terminology: Class 2 (RA1) engineering grade for low-speed private car parks; Class 1 (RA2) high-intensity for busier entries; Class 1W (RA3) wide-angle prismatic for critical, high-glare or long-view applications.

Mechanical finish options

• Corner radii: common options are 5 mm or 12 mm to reduce sharp edges around pedestrians.
• Post mounting: dual 20 mm C-channel rails for 50 NB galvanised posts; slotted patterns available for retrofit onto existing hardware.
• Edge sealing: recommended for harsh coastal sites to minimise moisture ingress under reflective films.
• Substrate thicknesses: 1.6–2.0 mm marine-grade aluminium for smaller plates; 3 mm ACP for stiffness on larger panels.
• Hardware: M8 304/316 stainless bolts with anti-vibration washers; typical torque 10–12 Nm for M8 with channel nuts.

How we manufacture in-house

Sign Portal produces traffic and parking signs in a 480 m² facility with clean, specialised print rooms. This control over printing, cutting and finishing helps maintain colour consistency and precise symbol geometry from batch to batch.

• Direct UV printing: Two Mimaki JFX EX flatbed printers image rigid panels (e.g., ACP) with crisp, high-contrast artwork suitable for regulatory designs.
• Precision cutting: The MultiCam SM2412 CNC router trims panels, rounds corners and cuts mounting slots accurately for repeat orders.
• Laser work: A Trotec Speedy 500 and a large-format 230 W CO2 laser handle acrylic tags, stencils and accessory components when needed.
• Vinyl and decals: The Roland VG-640 prints and contour- or kiss-cuts reflective and coloured films for legends, arrows and symbols.
• Finishing: Laminating and quality checks ensure consistent sheen, legibility and edge quality across sets.

Colour is managed through spectrophotometer-calibrated RIP profiles and batch sign-offs against internal master swatches, ensuring regulatory reds/greens remain consistent across reprints months later. Each job carries a barcoded traveller from preflight to packing so we can reproduce or service it quickly.

For fleet or multi-site rollouts, our Trade Portal can support customer-specific catalogues and simplified reordering of standardised parking plates and arrows.

Our QA, test equipment and installer credentials

• Retroreflectivity spot-checks with a handheld retroreflectometer prior to dispatch to verify sheeting performance against project specifications.
• Colour management with device-calibrated profiles and batch sign-off against master swatches for consistent reds/greens used on regulatory plates.
• Dimensional tolerances: bolt pattern and channel positions held to ±0.5 mm on CNC; corner radii verified on first-off samples.
• Site-ready teams: installers hold construction White Cards and EWP credentials for safe installation at height where required.
• Asset traceability: job ID and manufacture date printed discretely on the sign reverse to simplify warranty and maintenance planning.
• Calibration: measurement devices are checked against manufacturer standards on a documented schedule, with logs stored against each batch.

When you are ready to build a bill of materials per level or building, start here: Custom Traffic & Parking Signs.

Need a formal quote pack with datasheets and a marked-up plan? Send your drawings and a list of plates—we’ll return a consolidated schedule and drawing markups, then load it to your Trade Portal for repeat orders.
