Australian BESS labels show system ID, ratings, hazards, isolators/shutdown steps, contacts and location; align with AS/NZS 5139 and AS 1319.

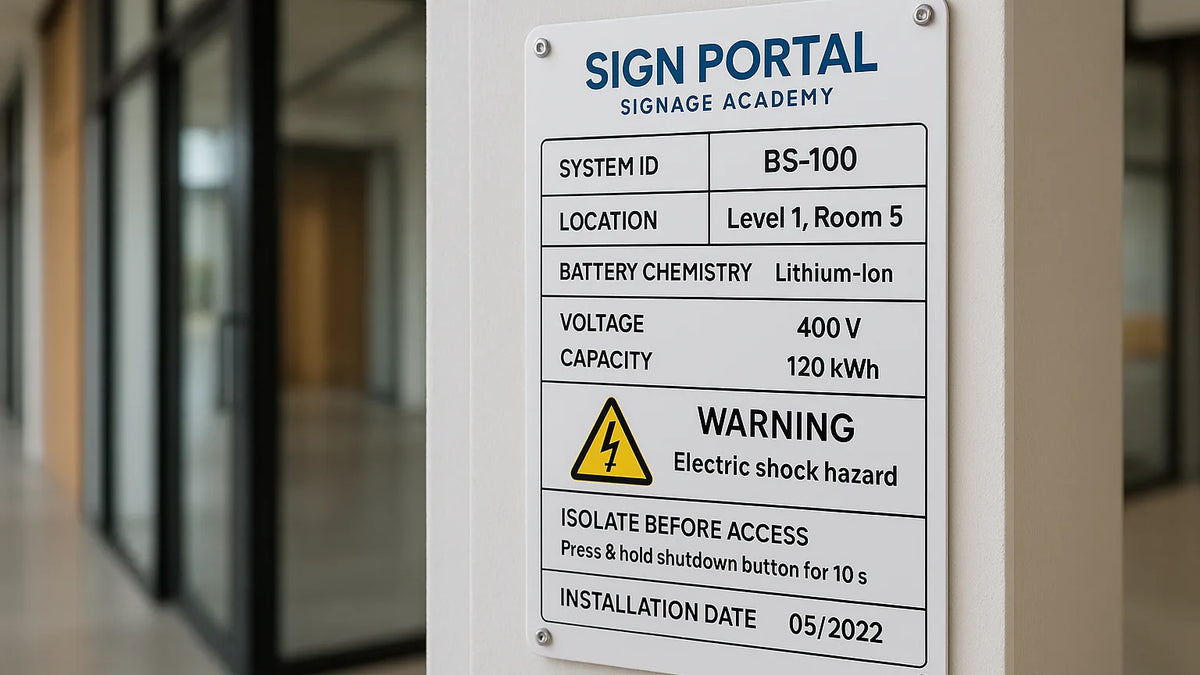

Wondering what information is commonly shown on battery system labels? In Australia, most labels include a system ID and location, battery chemistry, headline electrical specs (voltage and capacity), key hazards, shutdown sequence, and emergency/service contacts. Treat these as your non‑negotiables. Then add site‑specific notes (isolator locations, firmware/config where useful) so maintenance is faster and first response is safer. A clear, durable label that matches the installed hardware will save minutes when they matter.
Inspect battery system labels (on arrival and post-install)
- Count and content check: Match item count to the packing slip and install map. Scan QR codes to verify live targets.
- Legibility check: Confirm minimum x-height of critical text (≥ 4 mm at 1–2 m); verify contrast (e.g., black/yellow, white/red) per AS 1319 colour principles.
- Adhesion/surface prep: Clean substrate with IPA; ensure surface temperature 15–38°C; apply firm pressure with a squeegee/roller to activate adhesive.
- Fixings and torque: For mechanical fix, use appropriate stainless hardware and nylon washers on plastics; avoid over-tightening to prevent warping.
- Photo record: Photograph installed placards and isolation points; attach to your asset register for audit trails.
- Settle time: Allow adhesive-bonded labels 24 hours to reach functional bond strength before abrasion or washdown.
Repair and replacement of battery system labels
- Data capture: Record existing wording, size, material, and a photo; note any updated shutdown steps before ordering a replacement.
- Removal: Warm self-adhesive labels with gentle heat, lift with plastic scraper; use citrus-based adhesive remover if needed. For engraved plates, retain hole centres for re-use.
- Surface restore: Degrease and decontaminate before refit; for powdercoat or textured surfaces consider switching to mechanical fixings or VHB pads.
- Revision control: Add a small revision code (e.g., REV B 2026-08) on the new placard; update the QR destination if documents moved.
- Fast reissue: We archive approved proofs with variable data, enabling matched reprints or partial updates (e.g., spec block only) with minimal downtime.
- After an inverter upgrade, the facility updates only the spec block via a new insert on the main placard and re-engraves two isolation tags — minimal downtime.
- A remote site receives pre-sorted install packs for each building; the electrician follows the included map to place remote placards at entries and isolator labels in sequence.
Above: black/yellow engraved isolation labels being produced on our Trotec bed — burr‑free engraving and consistent character depth provide exceptional readability on small tags.
Order a UV‑printed battery system placard for switchboard/entry and pair it with engraved isolation labels for the cabinet. If you need help mapping isolators, include your SLD and we’ll annotate an install diagram as part of proofing. Attach your completed Battery system label ordering checklist (PDF) when you submit artwork to speed approval.
Related Sign Portal resources: Battery System Location Max A.C. – Hazardous D.C. Voltage Label · Battery Energy Storage System · ES Battery Chemistry Label for Energy Storage Systems
Frequently Asked Questions
What is the minimum information I should include on a battery system label?
At minimum, include the system ID, battery chemistry, rated DC voltage, nominal capacity, key hazard warnings, basic shutdown steps and an emergency contact number.
Where should battery labels be placed for best visibility?
Place a primary label on the enclosure at eye height and a summary placard near the main switchboard or site entry showing isolation points and emergency contacts.
Can I use QR codes on battery labels?
Yes. QR codes are useful for linking to the datasheet, commissioning report or service portal, keeping the physical label concise while providing full details.
Which material lasts longest outdoors for battery labels?
For small tags, laser-engraved laminate is highly durable. For larger placards, UV-printed polycarbonate or ACP with a protective finish offers strong UV and weather resistance.
Do battery label shutdown steps have to follow a standard template?
No. Use the exact sequence confirmed by the equipment manufacturer and the site’s electrical contractor. Avoid copying a generic sequence without verification.
How large should the text be on a battery placard?
As a guide, critical headings should be readable from 1–2 metres. Choose sizes and contrast based on viewing distance, lighting and whether the placard is at a switchboard or entry.
Are different labels needed for lithium and lead-acid batteries?
The core fields are similar, but lithium systems often include specific thermal hazard notes. Reflect the actual chemistry and the manufacturer’s safety guidance.
