What Signs Are Commonly Used at Construction Site Entrances?

Core entrance sign set

Most Australian construction sites group essential information at or immediately before the gate. The aim is to keep un‑authorised persons out, brief entrants on minimum personal protective equipment (PPE) and guide visitors to check‑in without blocking traffic.

Recommended product: A single consolidated entrance panel is faster to read and install. Order our Site Safety Entrance Board (ACP) and add only the few approach signs you need (STOP/speed/arrow). We supply layout, icon set and fixings as a ready kit.

• Project/site identification board: Builder or principal contractor name, site address or project name, and key contacts. Often combined with corporate branding.
• Danger – Construction Site Keep Out: Warns the public and un‑authorised persons not to enter.
• PPE mandatory icons: Commonly hard hat, safety boots, high‑vis, eye/hearing protection as required by the site risk assessment.
• Visitors report to site office: Directs deliveries, inspectors and guests to the correct check‑in point for induction or permits.
• Traffic control signs: Site speed limit, give way/stop, heavy vehicle movements, one‑way arrows and shared zone messaging where pedestrians and vehicles mix.
• Access and authorisation: Induction required, authorised personnel only, after‑hours access instructions.
• Emergency information board: First aid, emergency contact phone number, assembly point location and nearest street access for responders.
• Wayfinding arrows: Site office, deliveries, parking and pedestrian entry where these differ from the main gate.

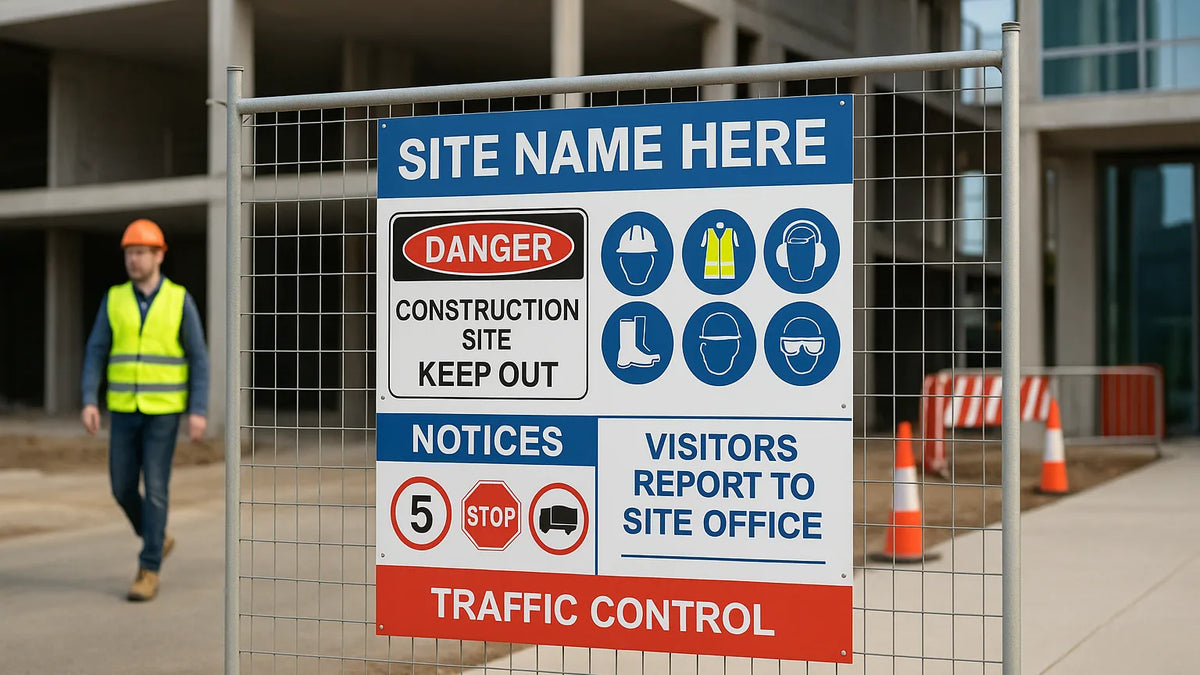

For most gates we recommend a consolidated Site Safety Entrance Board (ACP) paired with two or three support signs (speed/STOP, deliveries/office arrow). This reduces visual clutter and speeds installation.

Layout zones that work: Top row for Danger and PPE icons; centre for “Visitors report to site office” with a bold directional arrow; footer for project ID and emergency contacts. Reserve the roadside approach for a separate, reflective speed sign so drivers don’t stop at the gate to read it.

Material and format choices for entrance signs

Entrance signs must be legible, weather‑resistant and mounted so they do not flap into traffic or pedestrians. The most common substrates are corflute for temporary fencing and aluminium composite panel (ACP) for rigid gates, hoarding and posts. Where traffic moves at speed or light is low, use reflective graphics for earlier driver recognition.

Temporary fencing with corflute

Corflute (fluted polypropylene) is lightweight and economical for short‑to‑medium term use. Panels cable‑tie easily to temporary fencing for quick setup and repositioning.

• Best for rapidly changing sites, short programmes and perimeter messaging.
• Direct UV print keeps costs down and speeds production.
• Add eyelets or reinforced corners to reduce tearing in high wind areas.

Rigid boards in ACP

ACP is a flat, rigid aluminium composite sheet ideal for entrance safety boards, gate signage and hoarding panels. It resists warping, delivers premium print quality and accepts anti‑tamper fixings.

• Best for long‑running projects, hoarding and high‑traffic gates.
• Allows rounded corners and custom shapes routed on a CNC for safer edges.
• Compatible with reflective films and protective overlaminates.

Sign Portal ACP spec (typical): 3 mm and 4 mm sign‑grade ACP with aluminium skins of ~0.21–0.3 mm, white coil‑coated faces, PE core; supplied with 5–10 mm corner radii and deburred edges for pedestrian areas.

Banners and fence mesh

Banner mesh is useful for large branding and directional wayfinding across a long fence line. Use with caution for critical safety messages because mesh can distort fine details in icons or small text.

• Great for project identity and arrows visible from a distance.
• Reinforced hems and eyelets help resist wind loads when installed correctly.

Reflective and illumination

Where vehicles approach at dusk, dawn or low‑light zones, reflective graphics on ACP entrance boards or traffic signs improve detection distances. Fixed lighting at the gate also helps but does not replace reflective materials for vehicle recognition.

Reflective choices: Class 2 (engineer grade) for low‑speed works and local streets; Class 1/1W (high‑intensity prismatic) for higher approach speeds, long sightlines or complex night backgrounds. We stock AS/NZS 1906.1 compliant films to suit both.

Sizes, legibility and layout

Entrance signs should be readable by drivers and pedestrians without stopping in a hazardous spot. Prioritise high‑contrast colours, simple PPE icons and short messages.

• Board sizes: Common entrance boards are produced on larger panels (for example, near 900 × 600 mm or larger) so icons and key words are legible from the approach.
• Hierarchy: Put Danger/Keep Out and PPE at the top or left (for left‑to‑right reading). Place visitor/office directions where a driver can act on them.
• Clarity: Avoid dense text blocks. Use icons and short, standard phrases.

Technical legibility guidance (drivers and pedestrians)

The following design cues help achieve fast comprehension. They are based on practical site experience and common Australian standards and practice (for example AS 1319 for safety signage, AS/NZS 1906.1 for retroreflective sheeting, and AS 1742 series for traffic devices):

• Viewing distance vs text height: As a rule of thumb, allow approximately 1 mm of uppercase height for every 0.3–0.4 m of viewing distance for static pedestrians, and 1 mm per 0.2–0.25 m for moving drivers.
  • Pedestrian read at 5–10 m: 20–40 mm uppercase height; icon diameter ≥ 75 mm.
  • Slow approach 10–20 km/h at 10–25 m: 60–100 mm uppercase; icon diameter ≥ 120 mm.
  • Faster approach 30–40 km/h at 30–60 m: 120–180 mm uppercase; icon diameter ≥ 200 mm; reflective recommended.
• Contrast and colour: Follow AS 1319 colour conventions. Aim for a luminance contrast of ≥ 70% between text/symbol and background. Avoid light‑on‑light combinations and busy photo backgrounds.
• Typeface and stroke: Use a clear, open sans‑serif with normal or semi‑bold weight; avoid condensed styles. Minimum stroke width 2.5–3 mm for pedestrian content, 6–8 mm for driver‑read headlines.
• Icon scale: PPE and hazard icons should be large and simple. Keep symbol line weights chunky so details don’t disappear at distance.
• Retroreflective classes: For vehicle approaches, specify AS/NZS 1906.1 compliant sheeting: Class 2 (engineer grade) for low‑speed works; Class 1 or Class 1W (high‑intensity prismatic) for higher speeds/low‑light approaches.
• Glare and illumination: Position boards to minimise backlight. Reflective materials assist drivers under headlights; fixed lighting helps pedestrians but doesn’t replace reflectivity for vehicles.

Legibility quick calculator

• Pedestrians: Uppercase height H (mm) ≈ D (m) ÷ 0.35. Example: 8 m viewing → H ≈ 23 mm; choose 30 mm for clarity.
• Drivers (low speed 10–20 km/h): H (mm) ≈ D (m) ÷ 0.22. Example: 20 m viewing → H ≈ 91 mm; choose 100 mm.
• Drivers (30–40 km/h): H (mm) ≈ D (m) ÷ 0.20. Example: 40 m viewing → H ≈ 200 mm with reflective icons.
• Typeface note: If your type uses x‑height ≈ 70% of uppercase, ensure x‑height still clears 70% of H so lowercase copies remain legible.

Mounting heights and offsets

• Pedestrian fence/hoarding: Target 1500–1700 mm to centreline. Keep sharp edges 10 mm radiused where public contact is likely.
• Vehicle‑read approach signs: Bottom edge typically ≥ 1500 mm above ground in pedestrian areas; ≥ 600 mm on verges with no footpath. Maintain 300 mm setback from path edge where practical.
• Viewing cone: Angle boards 5–10° toward the approach to reduce specular glare at sunrise/sunset.

Traffic and vehicle approach considerations

Not all entrances are equal. A residential infill site might have slow, narrow access, while a civil site on a major road sees heavy vehicles entering at speed. Adjust sign type and placement accordingly.

• Approach speed: Use larger panels and reflective materials where approach speeds are higher or sightlines are short.
• Decision distance: Place speed/stop signs before the gate so drivers do not block footpaths or lanes while reading.
• Glare and shade: Position boards to avoid strong backlighting that washes out colours at sunrise or sunset.

Artwork and manufacturing

Sign Portal manufactures entrance signage in‑house with industrial print and finishing equipment. Direct‑to‑substrate UV printing on corflute and ACP is handled on Mimaki JFX EX flatbed printers, producing crisp icons and deep colour on rigid panels.

For reflective or multi‑layer builds, graphics are printed and contour‑cut on our Roland VG‑640 wide‑format printer/cutter, then laminated and applied to ACP. Panels can be rounded and cut to custom shapes on the MultiCam SM2412 CNC router for safer handling and a polished finish.

• Direct UV print on corflute and ACP for speed and accuracy.
• Reflective films with protective overlaminate for vehicle approaches.
• CNC‑routed corners/holes to suit specific fixing methods.
• Banner mesh finished with hems and eyelets for fence lines.

Colour and QC (first‑party process): ICC‑managed profiles in Mimaki RasterLink and Roland VersaWorks; calibration with an X‑Rite i1, spot‑checked against in‑house targets with ΔE00 ≤ 3.0 on safety colours. Every ACP board passes an edge‑finish check, hole‑pattern confirmation and a wipe test for laminate adhesion before packing.

First‑party capability details (Sign Portal):

• Materials: 3 mm and 4 mm ACP (Alupanel/DIBOND‑equivalent), 5 mm corflute (high‑impact fluted PP), Class 2 and Class 1/1W prismatic retroreflective films compliant with AS/NZS 1906.1, anti‑graffiti and UV overlaminates.
• Workflow and QC: ICC‑managed colour workflow (Mimaki RasterLink and Roland VersaWorks) calibrated with an X‑Rite i1; in‑process checklists for icon set, colour, spelling and hole pattern; final inspection for edge finish and fixings pack inclusion.
• Finishing: 5–10 mm corner radii, countersunk or slot‑cut holes, panel chamfers for pedestrian areas; pre‑applied VHB‑type tape strips on small aux panels if requested.
• Install readiness: Kitted with labelled anti‑tamper fixings (pin‑Torx or one‑way) and neoprene washers on request; SWMS available, installers hold White Cards and can be inducted per principal contractor requirements.

Installation options

Mounting must be secure, readable and avoid creating protrusions that snag clothing or encroach into vehicle paths. Choose fixings that suit the substrate and structure.

• Temporary fencing: Cable ties through eyelets or directly through flute channels on corflute. Use multiple ties per edge and reinforce high‑wind corners.
• Gates and hoarding (ACP): Screws or rivets with large washers; anti‑tamper fixings where public access is possible. Consider rounded corners for pedestrian areas.
• Posts: Channel/post systems or brackets for freestanding traffic‑style signs near the approach.
• Smooth surfaces: VHB‑type structural tape for small auxiliary panels in low‑risk areas; mechanical fixings preferred for primary boards.

Fixings guidance (practical): For ACP, use stainless M5–M6 screws/rivets with neoprene or nylon washers; torque light hardware to ~4–6 N·m to avoid panel crush. Maintain ≥ 20 mm edge clearance, ≥ 200 mm fixing spacing around perimeters exposed to wind.

Always follow site rules and the principal contractor’s WHS plan when locating and fixing signage. Where wind loading or public interface is significant, consult the site manager or an appropriate professional before installation.

Ordering and delivery

To order efficiently, prepare: artwork or a rough layout, list of required messages/icons, material preference (corflute, ACP, reflective), panel sizes and fixing points. If unsure, provide site photos and we can suggest placements and panel sizes.

• Repeat projects: we can set up a site entrance pack with consistent layouts for fast re‑ordering.
• Australia‑wide shipping: metro, regional and remote delivery are available, with protective packaging for rigid panels.
• Trade customers: talk to us about streamlined quoting and repeat job numbers through our Trade Portal workflow.
• Lead times (typical): Standard ACP entrance boards 2–4 business days; reflective builds 3–5 days. Express slots are often available for urgent compliance updates.

Ready to simplify your gate? Order a consolidated Site Safety Entrance Board (ACP) and we’ll build the layout, icons and fixings pack to suit your site.

Maintenance and inspection

Entrance signs work only if they remain visible and intact. Add a quick check to your site walkaround.

• Replace panels that fade, crack or are graffitied beyond cleaning.
• Re‑tension ties and replace any that have UV‑brittled or snapped.
• Wipe reflective and high‑vis areas with mild detergent and water; avoid harsh solvents.
• Confirm arrows and wayfinding still match the current site office location.

Repair, refurbishment and field fixes

• ACP boards: For scuffs or graffiti on laminated graphics, use pH‑neutral detergent first; if needed, a citrus‑based remover on a soft cloth. Avoid acetone/MEK. Torn graphics can be patched with a pre‑cut overlay (10–15 mm overlap) — we supply colour‑matched patches and PPE icon re‑skins on request.
• Reflective panels: Replace damaged areas with the same AS/NZS 1906.1 class film. Roll down firmly (pressure 15–20 N/cm) with a felt applicator and post‑heat edges (60–70 °C) to set.
• Hardware: Replace missing fixings with stainless fasteners and neoprene washers. Maintain minimum 20 mm edge clearance for holes to prevent tear‑out. For fences, upgrade to UV‑stable black cable ties and add extra ties on windward edges.
• Corflute: Creased or torn sheets are best replaced. Temporary stabilisation is possible with a backer strip of corflute and wide outdoor tape, then add more ties through intact flute channels.
• Re‑skin vs replace: Where the ACP substrate is sound, a full re‑skin (remove old vinyl/laminate, clean with IPA, apply new graphic and laminate) is cost‑effective and quicker than fabricating a new panel.

Step‑by‑step: on‑site re‑skin (Sign Portal method)

• Photograph existing board for record; measure and note hole pattern.
• Warm the surface (40–50 °C) with a heat gun and peel old film slowly at 45°.
• Adhesive removal: citrus‑based remover, then wipe with 70% IPA; allow to flash off.
• Dry fit new graphic; mark datum lines with low‑tack tape.
• Apply with felt squeegee using firm, even strokes; target 15–20 N/cm pressure. Overlap any panel joins by 10–15 mm with with‑the‑flow laps.
• Post‑heat edges and rivet lines to 60–70 °C; edge‑seal if in high‑wash or public‑touch zones.
• Re‑install with stainless fixings; torque light hardware to ~4–6 N·m; confirm no panel bow.

Common mistakes to avoid

• Overloading the gate: Too many small signs become visual noise. Consolidate into a clear board with a few support signs.
• Low contrast artwork: Light colours on light backgrounds reduce legibility, especially in glare.
• Installing only at the gate: Move speed/stop warnings before the entrance so drivers do not stop in unsafe positions to read.
• Non‑durable fixings: Single cable ties or light screws can fail in wind; use multiple fixings and reinforce corners.
• Missing emergency info: Ensure a current emergency contact and assembly point reference are present and accurate.

Standards and references (quick guide)

• AS 1319: Safety signs for the occupational environment — colours, shapes and layouts for mandatory, prohibition and danger signs.
• AS/NZS 1906.1: Retroreflective materials — select Class 2, Class 1 or Class 1W to suit approach speed and lighting.
• AS 1742 series: Manual of uniform traffic control devices — for placement of speed/STOP signs on approaches.
