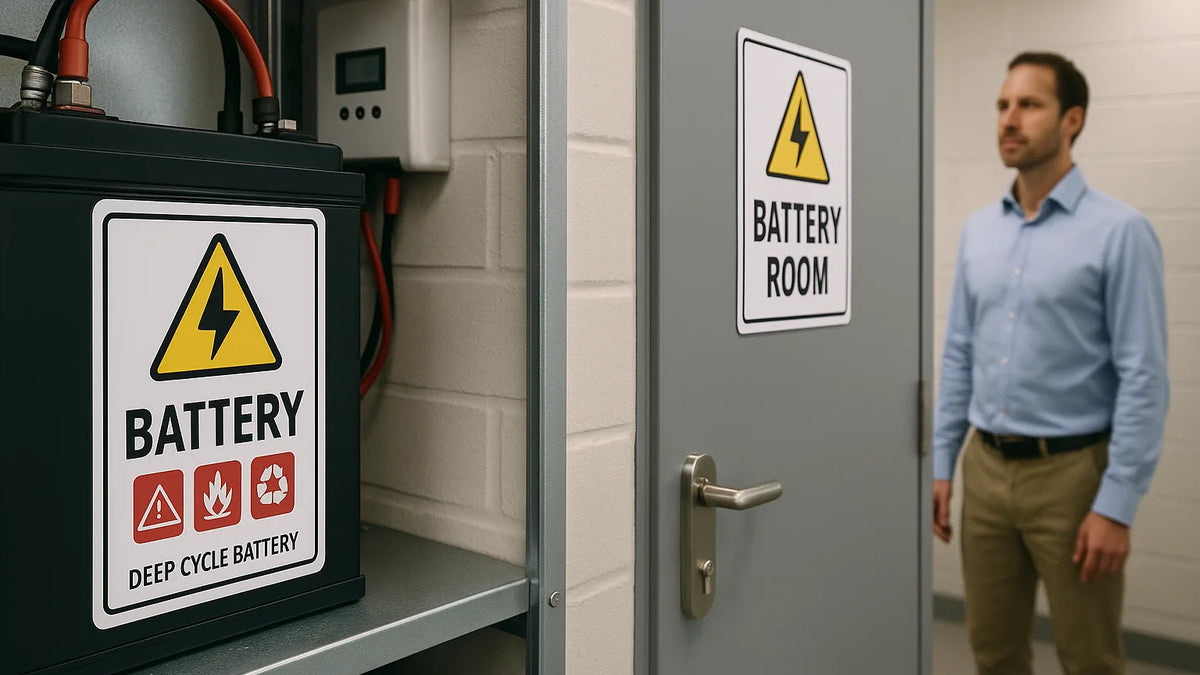

Where Are Battery Labels Typically Installed?

Common installation locations

Battery systems show up in many places: vehicles and mobile plant, telecom cabinets, data centres, warehouses, marine, mining and rooftops. Regardless of industry, the best locations are consistent: at the hazard, at the control and at the access point.

On the battery or battery cover

Small identification labels are commonly placed directly on the battery case or cover. For lead-acid, gel or AGM units, a label near the terminals communicates polarity warnings, chemistry and capacity. On modular lithium battery packs, labels go on the module face so they remain visible when racked.

• Polarity and hazard labels near positive terminals.
• Chemistry/technology (e.g., Li-ion, lead–acid) for handling and recycling.
• Serial/asset IDs for maintenance tracking.

Practical tip: on small VRLA blocks (7–18 Ah), 25 × 12 mm hazard icons and 8–10 pt text remain legible without covering OEM ratings. On rackable lithium modules, use a 50 × 25 mm ID with 12–14 pt text so aisle-side techs can read at ~1 m.

Where batteries are wrapped or heat-shrunk, avoid seams and high-crown areas; place labels on the flattest face and burnish firmly. If terminals are shrouded, position the polarity symbol on the approach side of the shroud so it’s visible before contact.

On enclosure doors and access panels

Where batteries sit behind a cover, cabinet or switchboard, place labels on the outside face at eye level and a duplicate inside the door. This ensures visibility before opening and quick reference during service.

• Exterior: warning and identification at eye height.
• Interior: circuit ID, battery bank ID, isolation instructions.

Recommended sizes: 150 × 50 mm exterior placard with 20–24 mm headline (e.g., BATTERY ENCLOSURE), and a 100 × 30 mm internal ID with bank/circuit and isolation steps.

Adjacent to isolators and switches

Every battery isolator should have a clear, permanent label on or immediately adjacent to the switch body. Where multiple isolators sit together, use an engraved plate or high-contrast decal to tie the handle to its battery bank or circuit.

• Text such as “Battery isolator – [Bank/ID]”.
• Directional arrows where the isolator is offset from the handle.
• Voltage and system type if space allows.

For clustered isolators, a 75 × 25 mm two-ply engraved plate with 3.2 mm fixing holes (or high-tack adhesive backing) prevents mix-ups. For long-life, tactile tags at switches and MCCs, see our Engraved Traffolyte Switchboard Tags.

Standard hole centres we cut for common tag sizes: 75 × 25 mm on 60 mm centres; 100 × 30 mm on 85 mm centres. Where existing holes differ, supply a photo with a ruler and we’ll match your pattern.

Near fuses, DC distribution and MCBs

Labels belong beside battery-side fuses and miniature circuit breakers to identify battery source and energy level. Place them on the escutcheon or adjacent panel so they are visible with covers on.

Include fuse rating and source (e.g., “From BB-02, 125 A”) directly under the device. Use compact polycarbonate overlays where wipe-downs are routine.

At chargers, inverters and UPS interfaces

Because technicians interact with chargers, inverters and UPS touchpoints frequently, put source labels and hazard warnings at the input side and on the user-facing panel. This helps during isolation, lockout and testing.

• “Supplied by battery bank [ID]” at equipment inputs.
• Charge/discharge hazard icons near DC terminals.

On touchscreens and keypads, specify hard-coated polycarbonate overlays to resist alcohol wipes. Keep clear areas over LEDs and buttons when supplying artwork.

On racks and trays in battery rooms

For banked systems, fit ID plates to the end of each rack and repeat along the aisle at regular intervals. Where clear polycarbonate shields are used, stick labels externally to avoid chemical exposure and to keep them readable behind guards.

On open steel racks, specify 1.6 mm engraving laminate with 3 mm radius corners and 3.2 mm holes; mount at ~1.5 m to centreline for consistent wayfinding.

At room entry points and area placards

Place larger placards at the primary entry to rooms, switchrooms or battery enclosures. These warn of stored energy, indicate the presence of batteries and guide responders. Secondary doors or hatches should repeat a simplified message.

Placement principles technicians follow

Beyond specific locations, good battery labelling follows a few practical rules that keep people safe and reduce downtime.

• Line of sight: Put labels where eyes naturally land: eye level on doors, adjacent to the switch handle, near the terminal being touched.
• Proximity to action: If a control can be operated, the label belongs on the control or immediately beside it.
• Durability over time: Use materials that survive heat, UV, moisture and wipe-downs where relevant.
• Surface compatibility: Match adhesive to powder coat, plastics, stainless or textured surfaces. Use mechanical fixing if unsure.
• Consistency: Repeat IDs across access points so isolation steps are obvious from any approach.

Material and adhesive choices for different environments

The right material depends on the environment and the surface. Adhesive labels are quick and versatile; engraved plates are highly permanent and resist chemicals and abrasion.

• Vinyl decals (print-and-cut): Flexible, high-contrast graphics. Good for smooth powder coat, plastics and short-to-medium term outdoor use with the right laminate.
• Polycarbonate overlays: Tough, scuff-resistant with excellent clarity for printed symbols. Ideal for equipment fascias and charger panels.
• Engraving laminates (Traffolyte/Rowmark): Two-ply plastics engraved to reveal a contrasting core. Common for switchboard tags and long-life IDs. For isolators and MCCs, order our Engraved Traffolyte Switchboard Tags.
• Metal plates (stainless/aluminium): For harsh, high-heat or chemical washdown areas where plastic may degrade faster.

For adhesives, use high-tack acrylics on powder coat or low-surface-energy plastics. On rough or oily substrates, consider mechanical fixing: screws, rivets or cable ties for wrap-around markers.

Specifier notes:

• Switchboards/isolators: 1.6 mm Traffolyte with 3.2 mm holes or 3M 467MP/468MP high-bond adhesive; typical tag size 75 × 25 mm or 100 × 30 mm.
• Outdoor decals: UV-stable inks plus matched laminate; for difficult substrates use 3M VHB 5952 tape tabs at corners.
• Food/bev or washdown: Polycarbonate overlays or 316 stainless plates with mechanical fixing.
• Low-surface-energy plastics (PP/PE): 3M 300LSE family (e.g., 9472LE transfer) improves bond; abrade lightly where permitted.
• Service temperature: acrylic transfer adhesives typically achieve full strength after 24–72 hours; plan install sequence accordingly.

Label content and design essentials

Placement is only half the story; content must be immediately clear. Keep text concise, use standard symbols where appropriate and ensure high contrast.

• Identification: Battery bank ID, system name, serial/asset number.
• Electrical info: Nominal voltage, chemistry type, energy/capacity where relevant.
• Hazards: Shock, burn and chemical icons; recycling/handling symbols.
• Controls: “Battery isolator” labels with direction or location pointers.
• Service data: Install date, next inspection, contractor if site procedure requires.

Use simple typefaces, adequate font size and enough white space to read at arm’s length. On dark switchboards, white-on-black engraved plates stand out. On light powder coat, black or red on white decals work well.

Legibility targets: minimum 4 mm cap height for device IDs and 8–10 mm for warnings viewed at ~1–2 m. Use arrows or leader lines where the label cannot sit directly on the control.

For symbols, many sites reference AS/NZS 1319 principles for safety signage legibility; ISO 7010-style pictograms are commonly recognised and keep messages consistent for mixed workforces.

How Sign Portal manufactures durable battery labels

Sign Portal produces battery and switchboard labels in-house using a mix of digital printing and engraving to suit different environments. Our clean print rooms and fabrication area support consistent quality and repeatability.

• Engraved tags and plates: Cut and engraved on our Trotec Speedy 500 laser for crisp text and icons. Ideal for isolators, switchboards and long-life IDs.
• Printed overlays and panels: UV printed on Mimaki JFX EX flatbed for polycarbonate and rigid panels, then profile-cut to shape.
• Vinyl decals and stickers: Produced on the Roland VG-640 print/cut for colour-rich graphics and precise contours; optional laminates for UV and chemical resistance.
• Custom fabrication: Complex plates or brackets can be routed on our MultiCam SM2412 or cut on our large-format CO2 laser.
• Variable data: Serial numbers, bank IDs and QR codes are managed digitally for easy reorders through our Trade Portal workflow.

Process controls we apply on electrical labelling:

• Documented works instructions for engraving depth, edge finish and hole sizing (e.g., 3.2 mm for M3.2 rivets).
• Material traceability from sheet to finished part; internal job IDs and optional micro QR on reverse for reorders.
• First-article check and 100% visual QA for contrast, spelling and layout against approved proofs.
• Adhesive performance checks (surface energy, IPA wipe, dwell time) before dispatch on adhesive-backed sets.

We ship Australia-wide, including regional and remote delivery, so multi-site teams can standardise labelling across facilities.

Installation methods and surface prep

Good labels fail on dirty or incompatible surfaces. A short prep routine prevents most issues.

1. Clean: Remove dust and grease with a suitable cleaner; finish with isopropyl alcohol on non-reactive surfaces.
2. Dry: Ensure surfaces are bone dry; moisture undermines adhesives.
3. Test-fit: Confirm clearance around handles, latches and fasteners.
4. Apply: Use firm pressure from centre out; observe adhesive dwell time before service.
5. Mechanical fix: For plates, mark, drill and fix with stainless screws or rivets. Use backing washers on thin sheet metal.

For cables or round housings, use wrap-around markers or tie-on tags. On textured powder coat or cast surfaces, consider an engraved plate with mechanical fixing rather than a decal.

Adhesive dwell guidance: initial tack is immediate, but full bond typically takes 24–72 hours at room temperature. Where possible, avoid high-pressure washdowns and aggressive cleaners during this period.

Australian conditions to plan for

Local environments can be tough on labels. Select materials with these in mind:

• UV and heat: Outdoor and rooftop systems need UV-stable inks and laminates, or engraved plates that do not rely on ink longevity.
• Coastal salt: Use corrosion-resistant fasteners and plastics or marine-grade metals for plates.
• Dust and mining: Opt for abrasion-resistant laminates or engraved plates that withstand frequent wipe-downs.
• Washdowns: Food and beverage areas benefit from plates or overlays that tolerate cleaning agents.
• Vibration: On vehicles and mobile plant, ensure adhesive compatibility and add mechanical fixing if needed.

When to use area placards versus small labels

Small ID or hazard labels belong at the component. Larger placards belong at entries and common approach points. Where responders or third-party contractors may arrive, a concise entry placard accelerates safe work.

• Use placards: Room doors, compound gates, cabinet exteriors, charge-bay entries.
• Use small labels: On the battery, isolator, fuse, charger interface and internal panels.

Example wording for entry placards: “Battery Energy Storage – Hazardous DC – Refer to Isolation Procedure”. Keep to 5–9 words for rapid comprehension.

Battery label lifecycle with Sign Portal: order to reorder

Order

• Send photos of each enclosure/room and a simple label schedule (CSV or spreadsheet) listing Bank ID, device, quantity and material preference.
• Choose material by location: Traffolyte plates for isolators/switchboards; polycarbonate overlays for charger fascias; UV-laminated decals for doors.
• We supply an on-brand proof for sign-off showing sizes, fixings and hole positions. Variable data and QR codes are included if requested.
• Need engraved switchboard tags fast? Order directly via Engraved Traffolyte Switchboard Tags.
• Provide hole-centre measurements if reusing existing fixings; otherwise we default to 60 mm (75 × 25 tags) and 85 mm (100 × 30 tags).

Deliver

• Kitted by area: labels arrive grouped per room/rack with a packing map, fasteners (if specified) and surface-prep wipes.
• Plates supplied pre-drilled (e.g., 3.2 mm) or with high-bond adhesive. Decals are tabbed for gloved handling.
• Dispatch in flat boards to prevent curl; critical jobs available on express courier Australia-wide.
• Packs include an install guide showing recommended heights and example placements for quick, consistent fit-off.

Repair

• For damaged decals: warm surface, lift corner with plastic blade, remove adhesive with citrus remover then IPA. Replace like-for-like.
• For plates: back out screws/rivets, retain fasteners where reusable, and refit new plate to existing holes.
• We can supply spare sets or on-site replacement kits for high-wear areas (charge bays, plant rooms).
• If a warning is unreadable, treat as a defect and replace immediately; do not defer to the next maintenance window.

Replace (updates and changes)

• When equipment is upgraded, keep the bank ID consistent across all touchpoints. Update voltage/capacity data and reissue the inspection checklist.
• If isolator positions move, use interim arrows/temporary overlays until permanent plates are installed to avoid unsafe operation.
• Review entry placards whenever chemistry or capacity changes (e.g., AGM to Li-ion) so first responders get accurate cues.
• For new isolators or MCC additions, match existing plate style by reordering through Engraved Traffolyte Switchboard Tags.

Reorder

• Every job ships with a packing slip listing our internal job code. Quote this code or scan the optional QR on the label reverse to reorder.
• Artwork and variable data are archived, so exact matches can be reproduced without reproofing unless requested.
• Send a marked-up photo for any location changes and we’ll update the pack map before dispatch.

Battery Label Placement & Inspection Checklist

Download the printable A4 version: Battery Label Placement & Inspection PDF

1. Room entry placard installed at primary approach; secondary entries carry simplified warning.
2. Each enclosure door labelled at eye level; duplicate ID/isolations inside the door.
3. Every battery pack/case labelled with bank ID, chemistry and polarity near terminals.
4. Isolators labelled on or adjacent to the handle; direction of operation clearly indicated.
5. Fuses/MCBs identified with source bank and rating; labels visible with covers on.
6. Chargers/inverters/UPS interfaces marked “Supplied by [Bank ID]”; DC hazard icons present.
7. Rack ends fitted with durable ID plates; aisle repeats at regular intervals.
8. Materials matched to environment (UV, heat, washdown, vibration, coastal).
9. Fixing appropriate to surface: adhesive type verified or mechanical fixing used.
10. Text heights legible at working distance; contrast suitable to background.
11. Install date and next inspection recorded; IDs documented for reorders.

Quick checklist before sign-off

1. Is each battery, isolator and fuse labelled at the point of operation?
2. Is there a visible label on enclosure doors and a duplicate inside?
3. Are entry placards installed where a person first approaches the system?
4. Are materials matched to environment (UV, chemicals, washdowns, vibration)?
5. Are IDs consistent across all touchpoints and documented for reorders?
