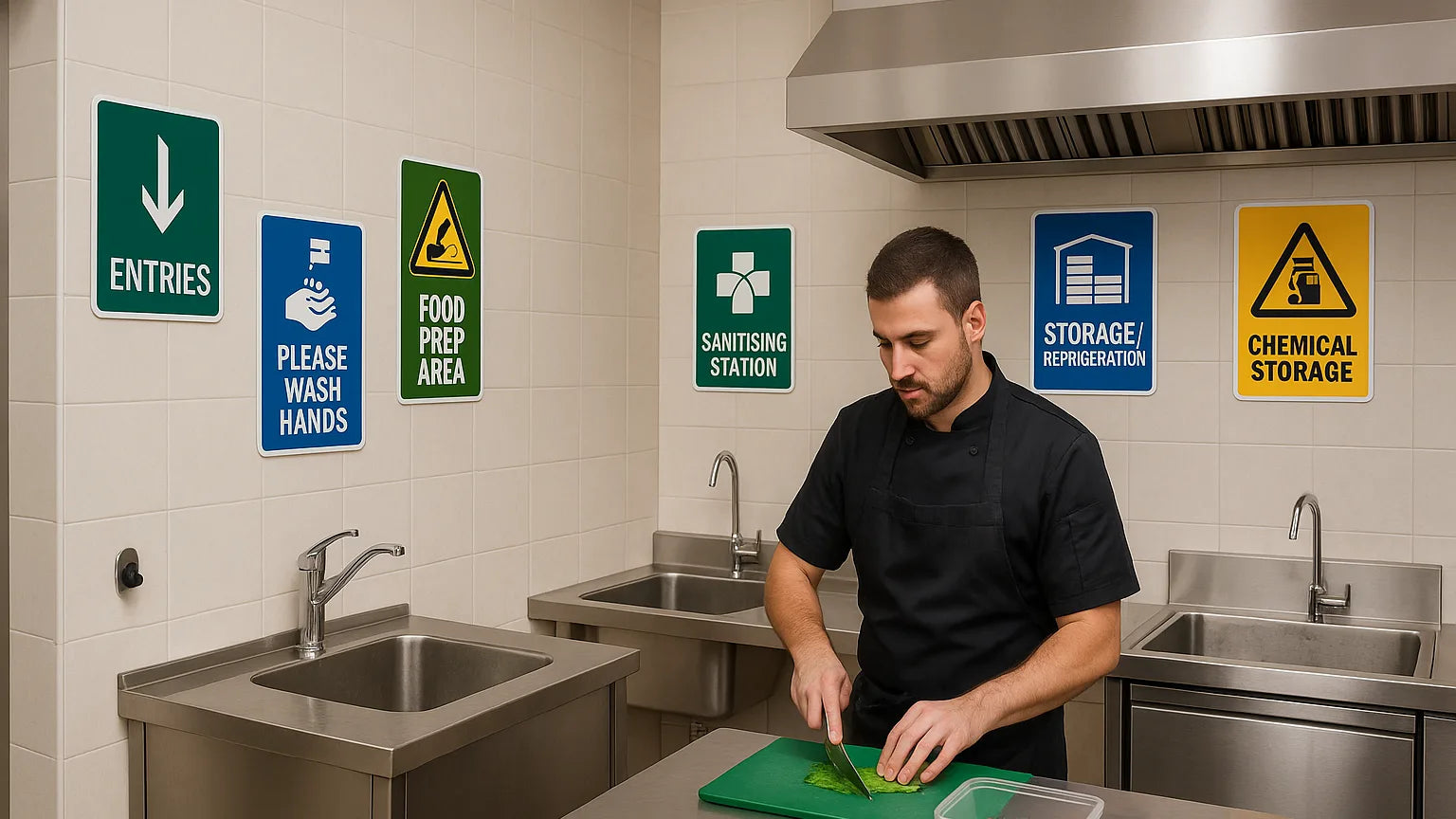

Where Should Kitchen & Food Safety Signs Be Installed?

Essential locations at a glance

As a rule, place signs where action is taken: at entries (PPE, no jewellery), at hand wash basins (hand hygiene steps), above food prep benches (allergen and cross-contamination rules), at sinks and sanitising stations (wash, rinse, sanitise), on cool rooms and fridges (temperature and storage rules), near dishwashers (operating and safety steps), at chemical storage (PPE and decanting), at waste areas (segregation), and in visible emergency points (first aid, fire blanket, exits).

Typical sizes and heights that work in Australian commercial kitchens:

• A5–A4 decals at sinks and benches; A4–A3 for entries and cool room doors.
• Centrelines 1500–1700 mm above finished floor level (AFFL) for general notices; 100–200 mm above the tap for hand wash steps.
• Minimum letter height: 6–10 mm x-height for reading at 1–2 m; 20–30 mm for quick scanning at 2–4 m.

Fast-track starter option: the Kitchen and Food Safety Sign Pack covers these core points and can be customised to your zones.

Entry, change and hand hygiene zones

Staff entry and change areas

Use entry points to set expectations before staff step into food handling zones. Signs here should be unmissable but not cluttered. Position them near the door handle or time clock so they are naturally noticed.

• PPE requirements: hair restraints, aprons, closed shoes, beard covers if applicable.
• Personal items: no jewellery, no watches, no phones beyond this point.
• Illness reporting: do not handle food if unwell or with open wounds.

Mount at or slightly above eye level on a cleanable surface. If the wall is painted, consider a rigid panel so regular cleaning will not scuff the wall finish.

• Recommended sizes: A3 rigid panel for multi-rule entries; A4 if space is limited on door leaves.
• Fixings: VHB tape plus two stainless screws with nylon washers for painted blockwork; high-tack adhesive only for smooth metal doors.

Where a staff door opens onto public areas, choose finishes that match FOH design and ensure wording remains compliance-first. Keep the lower 300 mm of door signage clear of kick plates and bump rails.

Hand wash stations

Every designated hand wash basin should have clear, durable instructions positioned directly above or beside the tap. Staff should not need to look away from the basin to read the steps.

• Hand washing steps with pictograms to shorten reading time.
• Reminders to use soap and single-use towels or hands-free dryers.
• “Hand wash only” signs to stop utensil or food washing in these sinks.
• Suggested size and layout: A5–A4 landscape, bold step numbers, contrasting background for wet areas.

Technical install tips for basins:

• Minimum surface temperature for adhesion: 10–38 °C. Warm stainless gently before application in winter.
• Keep 10–20 mm clear of silicone joints and grout lines to avoid wicking and early edge lift.
• Allow 24 hours before high-pressure cleaning; 72 hours for full VHB bond on rigid panels.

Food preparation and cross-contamination control

Where food is prepared, signs should reinforce separation of raw and ready-to-eat foods, allergen control and cleaning between tasks. Place reminders within the operator’s primary field of view at each bench, not just on a wall across the room.

• Colour-coded chopping board guides fixed near board racks or on wall splashbacks.
• Allergen controls: clean-down reminders, utensil segregation and change-glove prompts.
• Thawing and marination rules where those activities routinely occur.
• Knife and utensil parking reminders (e.g., “Store knives tip-down in sanitised holder”).

If benches are mobile, mount on nearby fixed surfaces (splashback, pillar, shelf end) so visibility remains when equipment is moved.

Make messages role-specific: pastry bench reminders should prioritise allergen handling (nuts, gluten), while raw protein benches prioritise separation, sanitiser change frequency, and knife storage.

Sinks, dishwashing and sanitising

Water and chemicals demand precise messaging at each sink and sanitising point. Place labels immediately above each bowl or on the tiled splashback, aligned with its function so users cannot mix up steps or bowls.

• Dedicated labels: “Wash”, “Rinse”, “Sanitise” aligned with each compartment.
• Contact times and water temperature bands if part of your site procedure (avoid small print).
• Glasswasher/dishwasher quick-start and safe operation reminders at the machine’s eye line.

Use high-contrast symbols for quick recognition in steamy conditions. Avoid placing instruction cards where steam will continuously condense behind edges.

• Typical parameters: manual sanitise contact time per SDS; automatic dishwasher final rinse 82–90 °C at the rack (check machine spec).
• Include a simple thermometer icon and space to write your site’s target range.
• For quats or chlorine sanitisers, include “Follow chemical label” rather than fixed ppm to stay compliant across products.

For 3-compartment sinks, add a small dot or arrow colour to match the basin label and place a matching dot on the wall above the correct tap. This reduces bowl-switch errors during changeovers.

Storage, refrigeration and temperature control

Fridges, freezers, cool rooms and dry stores benefit from concise, wipeable signage. Install on doors, door frames or adjacent walls so doors can still be fully cleaned. Keep font sizes generous for dimmer cool room lighting.

• Temperature targets and logging prompts at the handle side of each door.
• Raw-below-ready storage rules on internal walls or shelving ends.
• Date labelling and first-in-first-out (FIFO) reminders above packing benches.

• Typical targets: fridge 0–5 °C; freezer at or below −18 °C; chilled display 0–5 °C (verify with local council guidance).
• Place log prompts where pens live; add a holder below the sign to eliminate hunting for a pen.

Where doors are ribbed or embossed, mount the sign on a flat adjacent wall panel or a small rigid backer panel to prevent adhesive bridging over grooves.

Service and customer-facing areas

Front-of-house still requires essential information. Place allergen notices where customers naturally look: near the point-of-sale, menu board or servery rail. Keep wording short and direct customers to advise staff of allergies.

• Customer allergen advisory at counters or menus.
• Hand hygiene cues for staff at pass/servery where gloves are changed.
• Food display temperature or sneeze-guard reminders for staff.

Choose finishes that suit your fitout. In FOH, discreet rigid panels or neatly laminated decals applied straight and bubble-free maintain brand presentation.

• Use neutral tones and smaller icons for FOH to respect brand aesthetic while remaining legible.
• Mount behind counter equipment sightlines so customers see notices without cluttering the facade.

Chemicals and waste management zones

Place chemical safety and waste segregation signs exactly where chemicals are stored and mixed, and at each waste point. Do not hide them inside cupboards only—labels should be visible when the door opens and from the working position.

• “Authorised access only”, PPE, and decanting steps at chemical cupboards.
• Bin labelling for general waste, recyclables, organics and oil disposal.
• Sharps and glass-only areas clearly segregated if relevant to your site.

Use chemical-resistant, laminated substrates and ensure edges are well sealed so caustics or degreasers cannot creep under labels.

• Include an SDS station label and emergency eyewash directions where applicable.
• For decanting, include pictograms for “Do not mix”, fill to line, and cap/label containers immediately.

Keep decanting instructions specific to the dispenser in use (pump, dosing bottle, venturi). Mount close enough that the operator can read the contact time without stepping away from the sink.

Equipment and emergency information

Install operating safety reminders at fixed equipment: slicers, mixers, vacuum sealers, combi ovens and fryers. Signs belong in the operator’s eye line at the control side, not behind the machine.

• Machine safety: guards in place, disconnect before cleaning, hot surface warnings.
• First aid locations and supervisors listed in a common orientation point.
• Fire blanket and extinguisher ID markers without blocking access hardware.

Emergency egress diagrams should be mounted in staff rooms and main thoroughfares, with one at the principal kitchen exit. Keep frames sealed and easy to wipe.

• Add lock-out/tag-out reminders on electrical panels for maintenance tasks.
• Use photo-luminescent exit markers only where permitted and keep consistent with building fire plans.

For fryers and combi ovens, add small “cool before cleaning” reminders and glove type icons (e.g., heat-resistant vs nitrile) to reduce burns and chemical exposure.

Materials and mounting in wet, hot and greasy areas

Materials must withstand heat, moisture, oil and frequent cleaning. Two reliable approaches are laminated self-adhesive vinyl on smooth, non-porous surfaces (tiles, stainless steel, painted metal) and rigid panels for painted blockwork or areas needing added standoff from heat or steam.

• Laminated self-adhesive vinyl: thin, edge-sealed, conforms to smooth surfaces, easy to clean.
• Rigid panels (e.g., aluminium composite panel or polycarbonate): durable, screw or adhesive mounted, resist warping and repeated cleaning.
• Rounded corners and sealed edges reduce peel in high-wash areas.

• Surface prep before any adhesive install: degrease (citrus degreaser), rinse, wipe with isopropyl alcohol (IPA 70–90%), dry completely.
• Boost bond on low-energy plastics with primer (e.g., 3M Primer 94). Use 3M 5952 VHB tape or high-tack acrylic PSA for rigid panels.
• Edge-seal high-splash decals with a clear edge sealer (e.g., 3M 3950) to prevent wicking.

Select laminates with proven chemical resistance to quats, chlorine and caustic degreasers. PVC-free or polyurethane laminates often outperform soft PVC in hot, greasy environments.

Height, visibility and durability tips

Mount signs at natural eye level for the person performing the task. If hands are usually busy (e.g., at sinks), position slightly above tap level so the message stays in view while operating the tap.

• Keep messages short with bold headings and pictograms for quick scanning.
• Avoid locations where pans, lids or open doors will routinely cover the sign.
• Use high-contrast colours; avoid low-contrast pastels in steam or low light.
• Leave a cleanable gap from bench edges to stop grime building at the sign edge.
• Choose laminates with matte or satin finish to minimise glare from downlights.

Add a tiny install date and sign ID in the bottom-right corner (e.g., “HW-01 2026-02”) to make audits and reorders fast.

Installation and commissioning checklist

Use this step-by-step for safe, durable installs without disrupting service.

• Plan: schedule installs outside prep; isolate nearby equipment; wear gloves and eye protection when using solvents.
• Confirm locations: match each sign to the action point and viewing distance; dry-fit and mark level/light-glare impacts.
• Prep surfaces: degrease, rinse, IPA wipe; ensure surface temp >10 °C and fully dry.
• Apply decals: hinge with masking tape, peel 50–100 mm liner, squeegee from centre out; avoid trapping moisture.
• Mount panels: apply VHB in perimeter + centre strips; add two stainless screws with nylon spacers on porous/textured walls.
• Seal/wipe: edge-seal splash-zone decals; wipe fingerprints; remove tape; photograph final positions.
• Cure: avoid soaking/steam for 24 h; full VHB cure ~72 h.
• Commission: update your signage register with sign ID, location, surface, size, fixings, photo file name and install date.

Recommended tools: plastic/felt squeegee, masking tape, spirit level, IPA wipes, clean microfibre cloths, low-heat gun or hair dryer, edge-sealer pen, VHB tabs/roll, stainless screws, nylon washers/spacers.

What to capture before ordering

A quick site audit sharpens placement and material choices. Photograph each location straight-on with a tape measure visible where possible. Note the surface type and cleaning chemicals used.

• List every point of action: entries, basins, benches, sinks, fridges, chemicals, waste, exits.
• Record surface: tiles, stainless, painted wall, cool room panel, glass.
• Note environment: splash zone, high heat, constant steam, freezer, outdoors between buildings.
• Size constraints: door frames, cupboard widths, crowded splashbacks.
• Brand/FOH requirements: colour palette and any discreet presentation needs.

• Include one wide shot and one tight shot per location; annotate obstacles (handles, hinges, pipework).
• Confirm cleaning chemistries used (quats, chlorine, caustic degreaser) so materials and laminates match.

Signage register fields to capture:

• Zone > Action point (e.g., “Prep > Salad bench”)
• Message code > Text (e.g., “AL-01 Allergen changeover”)
• Substrate > Fixing method (e.g., “Stainless > Decal, edge-sealed”)
• Size > Orientation (e.g., “A5 landscape”)
• Environment > Chemistries (e.g., “High steam; quats + caustic”)
• Photo filename > Install date > Sign ID

Kitchen signage audit checklist (printable template)

Use this quick audit to map what you have and what’s missing. Tick each item on your walk-through and note location, surface and size.

• Entry PPE rules displayed at staff entrance (A3/A4)
• No jewellery/phones notice at entry
• Illness reporting sign (FSANZ reference)
• Hand wash steps at every dedicated basin
• “Hand wash only” at hand wash sinks
• Prep bench allergen/changeover reminder
• Colour-coded board guide near rack
• 3‑compartment sink labels (Wash/Rinse/Sanitise)
• Sanitiser contact time/temperature displayed
• Dishwasher/glasswasher quick-start and safety
• Cool room/fridge/freezer temperature targets
• FIFO and date labelling reminder near packing
• Chemical cupboard: Authorised access/PPE/decanting
• SDS station labelled and accessible
• Waste stream labels (general/recycling/organics/oil)
• Sharps and glass-only labels (if applicable)
• Equipment safety (slicer/mixer/oven/fryer)
• Fire blanket/extinguisher ID markers
• First aid location and contacts
• Evacuation diagram at main exit and staff room

For each ticked item, record: exact location, mounting surface, environment (wet/steam/heat), preferred size (A5–A3), and any brand requirements.

Extended audit prompts (add to your template):

• Viewing distance measured (m) and heading cap height adequate
• Obstructions checked (doors, lids, racks, utensils)
• Cleaning impact considered (spray direction, runoff, steam)
• Photo captured (wide + close) with file names noted
• Sign ID allocated for reorders and maintenance tracking

How Sign Portal manufactures kitchen safety signage

For rigid panels, we direct UV print on substrates using our Mimaki JFX EX flatbed printers, then route clean edges on our MultiCam SM2412 where custom shapes are required. For decals, we produce wide-format prints on our Roland VG-640, apply protective laminates, and contour cut for tidy, rounded-corner labels.

Where small engraved tags or durable labels are needed, our Trotec Speedy 500 laser and large-format 230 W CO2 laser handle precision badges and panel markers. Everything is manufactured in-house in our Australian facility, with Australia-wide shipping including regional and remote delivery.

Ongoing checks and maintenance

Kitchen environments are hard on signage. Build quick inspections into routine cleaning to avoid missing or unreadable instructions.

• Clean: wipe decals and panels during daily close—with non-abrasive cloths.
• Inspect: look for lifted edges, fading inks, or residue that obscures legibility.
• Replace: swap any damaged or illegible sign immediately; do not wait for audits.
• Review: when procedures change, update the sign at the point of action the same day.

If adhesives have failed due to chemical exposure, switch to a rigid panel or relocate slightly away from direct splash or steam while keeping the message in the operator’s field of view.

Suggested cadence:

• Daily: wipe-down and visual check in closing routine.
• Monthly: tug-test edges, confirm temperatures and contact times are still correct, update any roster names on first aid boards.
• Quarterly: full audit against the checklist; refresh high-wear decals at sinks and dish areas.

Repair and refurbishment guidance

Many issues are repairable without full replacement. Use the steps below to extend service life safely.

• Edge lift on decals: clean and dry the area; apply clear edge sealer (e.g., 3M 3950) under and along the edge; burnish firmly; allow cure before wet cleaning.
• Partial graphics damage: apply an exact-size overlay decal with rounded corners. Ensure substrate is degreased and wiped with IPA first.
• Adhesion loss on cool stainless: warm the surface gently (hair dryer/low heat gun), prime if required, then reapply using a high-tack acrylic PSA.
• Rigid panel loosening: replace foam tape with 3M 5952 VHB. For porous walls, add two stainless pan-head screws with nylon spacers for standoff.
• Ghosting/staining: use pH-neutral cleaner; avoid abrasives and strong caustics on printed faces. If stain remains, replace to maintain legibility.
• Repositioning: do not move hand wash or emergency signs without updating your Food Safety Plan and floor plan so audits remain consistent.

Advanced repair tips:

• Sticker removal: gently heat, lift at a shallow angle, then remove residue with citrus adhesive remover. Neutralise with mild detergent and finish with IPA before reapplying.
• Panel re-levelling: if screws are present, back them off, replace worn spacers, re-square with a level, then retighten. Add fresh VHB behind for shear strength.
• When to replace: if text/icons are illegible, if more than 10% of the edge length has lifted, or if the message no longer matches your SOP—replace immediately.
• Record-keeping: log repairs/replacements in the signage register with date, reason, and photo. This supports FSANZ 3.2.2A verification activities.

Compliance note (Australia)

Use signage to support, not replace, training required under the Food Standards Code. Key references include FSANZ Standard 3.2.2 (Food Safety Practices), 3.2.3 (Food Premises and Equipment) and the 2023 Standard 3.2.2A (Food Safety Management Tools). Always follow chemical labels and your council-approved procedures.

Add your original site photos now

Photos make this guide site-specific and audit-ready. Use the placeholders below and upload images via your CMS media library.

• Resolution: 2000–4000 px on the long edge; JPEG or PNG; sRGB colour.
• Framing: camera parallel to surface; avoid strong perspective; fill the frame with the action point.
• Lighting: turn on task lights; avoid harsh specular glare; use a polarising filter if available.
• Privacy: no people; remove brand labels on food and chemical containers.
• Metadata: remove geotagging if publishing online; keep capture date in filename.

Alt text examples to copy/paste:

• IMAGE_1 alt: “Hand wash basin with laminated hand washing steps decal mounted above the tap in a commercial kitchen.”
• IMAGE_2 alt: “Cool room door with temperature target and logging reminder sticker near the handle.”
• IMAGE_3 alt: “Close-up of laminated safety decal on stainless steel with rounded corners and sealed edge.”
• IMAGE_4 alt: “Wide view of commercial kitchen showing PPE entry sign, hand wash steps and sink labels in place.”

File naming convention: site-zone-actionpoint_sequence (e.g., “cafe-eastwall-handwash-01.jpg”). Reference these in your signage register.

Summary and next steps

Effective kitchen and food safety signage lives where work happens: entries, basins, benches, sinks, storage, chemicals, waste and exits. Choose laminated decals for smooth splash zones and rigid panels for porous or uneven walls. Keep wording short, use pictograms and mount at eye level. If you map each point of action and match the substrate to the environment, your team will actually see and follow the message.

Fastest path to compliance: start with a curated bundle and customise for your layout.

• Kitchen and Food Safety Sign Pack — a ready-to-go set covering entries, hand wash, sinks, storage temps, chemicals and emergency basics.

Original photo brief (add to this article)

Include site-specific photos to make this guide real for your team. Shoot and insert the following original images:

• Hand wash station close-up showing the installed hand wash steps decal above the tap (match IMAGE_1 brief).
• Cool room door with temperature/recording decal near the handle (match IMAGE_2 brief).
• Detail shot of a laminated decal on stainless with rounded corners and sealed edge (match IMAGE_3 brief).
• Wide kitchen overview with multiple signs visible in situ (match IMAGE_4 brief).

Tips for the shoot: clean surfaces first, use even task lighting, shoot straight-on, and avoid readable product labels in frame. Save files with descriptive names (e.g., handwash-basin-east-wall.jpg) and add alt text describing the action point.

Related Sign Portal resources: Kitchen And Food Safety - Food Preparation Area Veg & Salad Sign · Kitchen And Food Safety - Food Preparation Area Sign · Kitchen And Food Safety - Food Preparation Area Cooked Food Sign
