Fire Safety Signs: Colours, Symbols and Meaning Explained

What fire safety signs communicate

Fire safety signs do three jobs: highlight where fire equipment is, instruct or warn to reduce fire risk, and guide safe movement during an emergency. Getting the colour and symbol right makes recognition instinctive, even under stress.

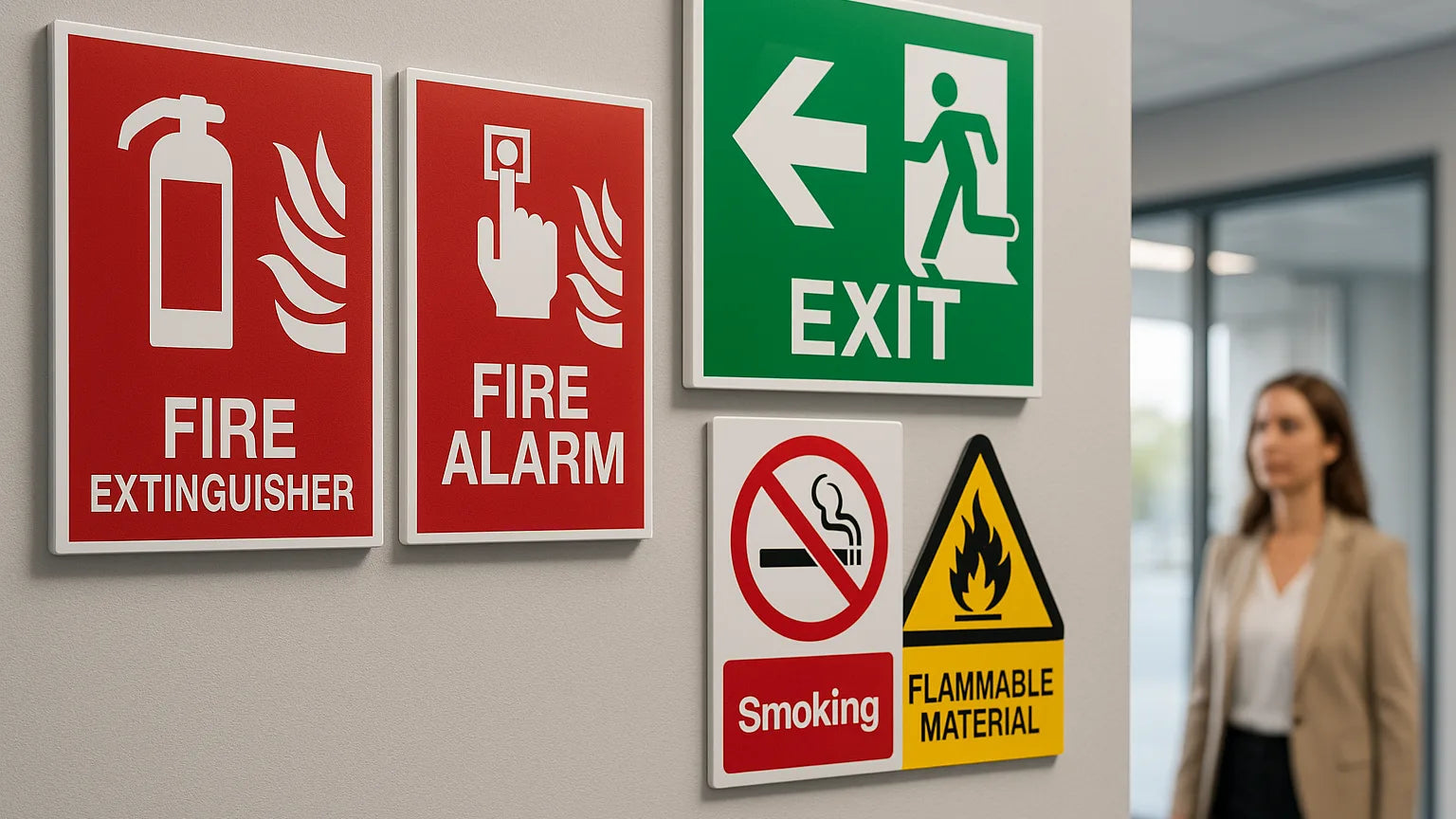

At a glance, red backgrounds point to fire-fighting equipment and alarms. Green backgrounds communicate safe conditions like exits and assembly or muster areas. Prohibition and hazard signs reinforce safe behaviour (for example, no smoking or no open flames) around fuel stores and high-risk areas.

• Red = fire equipment and alarms
• Green = safe conditions and emergency information
• Prohibition / hazard = prevent ignition sources and highlight risks

Key items include Fire Extinguisher, Fire Hose Reel, Hydrant, Fire Blanket, Fire Alarm/Manual Call Point, Assembly/Muster Point and No Smoking/No Open Flames.

Colour coding at a glance

Colour is your first signal. In Australia, workplaces commonly use a consistent palette so staff and visitors can identify meaning fast.

Red backgrounds with contrasting white pictograms and text identify fire-fighting equipment and detection or alarm points. Typical legends include “Fire Extinguisher”, “Fire Hose Reel”, “Hydrant” and “Fire Alarm”.

Green backgrounds with white symbols are used for emergency information, such as exit routes and assembly areas used during a fire evacuation. While not fire equipment, these signs work hand-in-hand with fire response.

• Prohibition signs: white background with a red circular ring and diagonal slash over a black symbol (e.g. cigarette, match). Used for “No smoking” and “No open flames”.
• Hazard signs: high-contrast designs (often a yellow or attention-drawing field with a black symbol) indicate flammable or combustible materials and similar fire hazards.
• Mandatory action signs: a blue circle with a white symbol shows required actions (e.g. “Keep clear” around fire equipment).

These categories work together: red to find equipment, green to get people out, and prohibition/hazard to prevent fires from starting.

Common fire safety symbols and where to use them

Pictograms are designed for split-second recognition. Use the icons below consistently so people act fast.

Fire extinguisher

Indicates the presence and location of a fire extinguisher. Often paired with a downward arrow to mark the unit itself or with an overhead sign placed so it is visible down a corridor.

• Where used: above or directly behind the extinguisher; on columns, walls or suspended flags for long-range visibility.
• Helpful text: “Fire Extinguisher”, “Do Not Obstruct”.

Shop: Fire Extinguisher sign and Do Not Obstruct ↓ plate.

Fire hose reel

Identifies hose reels for firefighting. The symbol typically shows a rolled hose and nozzle.

• Where used: close to the reel cabinet or on the nearest visible wall.
• Helpful text: “Fire Hose Reel”, arrows to the exact cabinet if it’s around a corner.

Shop: Fire Hose Reel sign.

Fire blanket

Shows where a fire blanket is stored, commonly in kitchens and workshops to smother small fires.

• Where used: adjacent to the blanket container at eye level.
• Helpful text: “Fire Blanket”, with a downward arrow to the canister.

Shop: Fire Blanket sign.

Manual call point / alarm

Marks a manual alarm activation point (break glass or push button). Swift identification is critical for raising the alarm early.

• Where used: near exits and along evacuation routes.
• Helpful text: “Fire Alarm”, “Break Glass In Emergency”.

Shop: Fire Alarm / Manual Call Point sign.

Hydrant

Identifies a hydrant outlet. In larger sites this may be paired with directional arrows or distance plates.

• Where used: directly above hydrant cabinets or posts; on perimeter fencing for external hydrants.
• Helpful text: “Hydrant”, with arrows or distance markers if line-of-sight is obstructed.

Shop: Hydrant sign.

Assembly area (muster point)

Shows the safe gathering point during evacuation. Although green emergency information, it is essential in fire scenarios.

• Where used: outdoor areas clear of traffic and hazards, visible from approach routes.
• Helpful text: “Assembly Point” or “Muster Area”.

Shop: Assembly / Muster Point sign.

Text legends, arrows and supplementary plates

Text clarifies exactly what the symbol refers to and where the item is located. Consistent legends like “Fire Extinguisher”, “Fire Hose Reel”, “Do Not Obstruct” and “Keep Clear” reduce ambiguity.

Arrow plates and directional signs help people find equipment quickly when it’s not in direct view. Use a clean, high-contrast arrow pointing left, right, up (ahead) or down (to the unit), and position the arrow plate so the direction is unambiguous from typical approach paths.

• Use short, plain-language legends.
• Pair arrows with the main sign when equipment is around a corner or on a different wall.
• Avoid clutter: one clear instruction beats multiple competing messages.

Rule-of-thumb for legend size: target at least ~5 mm cap-height per metre of viewing distance for readability, with strong contrast (light on dark or dark on light).

Size, visibility and placement

The right size depends on viewing distance. Larger spaces and long corridors need bigger panels or double-sided flag signs so they can be seen from farther away. Avoid placing signs where they’ll be masked by doors, shelving or open equipment covers.

Maintain a clean background around the sign for contrast, and ensure good lighting along evacuation routes and near equipment. In low-light or smoky conditions, reflective or photoluminescent options can improve pick-up.

Practical sizing examples:

• Small offices and corridors (viewing 5–10 m): 150 × 225 mm or 225 × 300 mm wall plates.
• Large open areas and warehouses (viewing 15–30 m): 300 × 450 mm panels or double-sided flags.
• Long aisles: repeat overhead flags so one is always within line-of-sight; bottom edge typically 2.2–2.4 m above finished floor level (AFFL).

Current Australian standards and guidance (2026)

As at 2026, the following Australian standards and guidance documents inform colour, legends, visibility and placement:

• AS 1319 Safety signs for the occupational environment: defines the categories and colours used for safety, including Fire signs (red/white), Emergency information (green/white), Prohibition (red/black on white), Hazard (black symbol with attention background), and Mandatory (white symbol in blue circle). Use consistent legends and do not mix icon styles within a site.
• AS 2444 Portable fire extinguishers and fire blankets — Selection and location: covers extinguisher/blanket selection, mounting and conspicuity. Practical points used on site include: provide an identification sign for each extinguisher; mount the ID sign so it remains conspicuous above stored goods; keep the extinguisher handle no higher than about 1.5 m above floor level, with the base at least 100 mm off the floor; and position so travel distances set out in the Standard can be achieved. Refer to the Standard for exact mounting heights by extinguisher size/mass.
• AS 2293.1 Emergency escape lighting and exit signs: governs exit sign design, placement and viewing so green/white exit signs clearly mark the egress path. Provide directional arrows where the path turns or the exit is not in direct view. The National Construction Code (NCC) references AS 2293 for exit signage in buildings.
• AS 2419.1 Fire hydrant installations: includes identification requirements for external hydrants, hydrant valves and booster assemblies (e.g., durable red “HYDRANT”/“BOOSTER” panels visible from approach). Local fire authority guidelines may prescribe exact wording for booster assemblies — check jurisdictional requirements.
• WHS Regulations and GHS labelling: for portable containers and chemical stores, label hazardous chemicals with GHS red-diamond pictograms. Use AS 1319 hazard/prohibition signs to mark areas and behaviours (e.g., Flammable Liquid Store – No Smoking) and use GHS on the containers.

Implementation tips drawn from the above:

• Extinguisher ID signs: position not less than ~2.0 m above floor (or higher if stock can obscure sight lines), centred above the unit; add arrow plates on approach routes.
• Overhead flags: in aisles, fix double-sided flags so the bottom edge clears traffic (typically 2.2–2.4 m AFFL) and repeat at decision points.
• Exit route confirmation: at every change in direction on the evacuation path, provide a green directional sign or exit sign with the correct arrow.

This summary is practical guidance only. Always consult the current editions of the Standards and your licensed fire services contractor when designing or auditing fire signage.

Materials that work in Australian conditions

Fire safety signs must stay legible despite heat, UV exposure, cleaning and occasional impacts. Sign Portal manufactures in-house using rigid and flexible substrates matched to your environment.

• Aluminium composite panel (ACP/ACM): rigid, durable panels for walls, corridors and outdoors. Direct UV printed for high contrast and longevity. For long-range flags, use 4 mm thickness with reinforced brackets.
• Acrylic or polycarbonate: tough plastics for clean indoor spaces and framed or suspended signs. Laser-cut for neat edges.
• Self-adhesive vinyl: labels for cabinets, glass doors, machine panels and curved surfaces; can be laminated for chemical resistance.
• Polypropylene/corflute: economical temporary signage for construction and short-term works.

Where needed, we can add overlaminate films to improve abrasion and cleaning resistance, or produce reflective/photoluminescent variants for low-light environments. We’ll discuss the trade-offs for your site conditions and cleaning regime.

Technical options on request:

• ACP thicknesses: 3 mm standard for walls; 4 mm for larger overhead flags or post-mounting.
• High-tack and VHB-grade tapes for imperfect paint/low-energy plastics; removable adhesives for glass.
• Reflective films suitable for facility signage (engineering-grade) and photoluminescent sheet to support low-light identification; for exit luminaires, follow AS 2293 certification requirements.
• Rounded corners (R3/R6), pre-drilled holes to your fixing pattern, and anti-graffiti laminate for harsh washdown areas.

How we manufacture these at Sign Portal

All printing and fabrication is completed in our approximately 480 m² Australian facility with specialised clean print rooms. This keeps quality consistent and lead times reliable.

• Direct-to-panel UV printing: Our two Mimaki JFX200-2513 EX flatbed printers produce crisp, high-contrast graphics on ACP, acrylic and other rigid substrates.
• Precision cutting: The MultiCam SM2412 CNC router handles panel sizing and shape cutting, while our Trotec Speedy 500 and large-format 230 W CO2 lasers cut acrylics and plastics cleanly.
• Vinyl print and cut: The Roland VG-640 prints and contour-cuts self-adhesive vinyl labels for cabinets, doors and equipment.
• Finishing: Laminating, hole drilling, rounded corners and custom bracketry are available to suit your installation method.

Because we manage production end-to-end, we can match your existing site legends, colours and arrow conventions across new and replacement signs for a consistent look.

Quality assurance you can see:

• Prepress checks against AS 1319 categories so the correct colour family and symbol style are used.
• Batch-controlled media and inks; colour-managed print profiles for consistent reds/greens across reorders.
• Dimensional tolerances typically ±0.5 mm on laser-cut plastics and ±1 mm on routed panels.
• Pilot sample on request for large multisite rollouts before we proceed to full production.

Installation methods that last

Select fixings based on the surface and environment. A secure, flush installation reduces the chance of damage or obstruction.

• Adhesive/VHB tapes: fast, clean installation on smooth painted walls, doors and cabinets.
• Mechanical fixings: screws or rivets for blockwork, timber, posts and areas with vibration or tampering risk.
• Glass applications: optically clear adhesive vinyl or rear-applied graphics.
• Suspended/flag signs: brackets or ceiling drops where long-range visibility is required in aisles and corridors.

Inspection, maintenance and repair

Fire signage is safety-critical. Include it in your routine inspections and repair promptly when damaged.

• When to repair/replace: faded reds/greens, cracked panels, peeling adhesive, vandalism/graffiti, relocated equipment, changed traffic flow, or poor visibility due to new racking or fit-out.
• Fast repairs: replace only the front plate while reusing your existing brackets; apply a new overlaminate to extend life where the print is intact but scuffed.
• Upgrades: switch to photoluminescent or reflective variants for better pick-up in low light; add overhead flags where stock now obscures wall signs.
• Documentation: photograph before/after, note sign codes/locations, and update your site legend list so future reorders are accurate.

Sign Portal can match discontinued or legacy designs from photos and measurements, or supply like-for-like upgrades to current AS 1319 conventions. For multi-building sites we prepare labelled packs by level/area to minimise installation time.

Five-step repair workflow we use on site:

1. Audit and mark-up: walk the route, list defects, confirm equipment positions against plans.
2. Prioritise: address life-safety critical items (missing/obscured fire equipment ID) first.
3. Like-for-like vs improvement: replace as-is, or upgrade to larger/overhead/reflective where visibility is poor.
4. Install and verify: fit plates/flags, check lines of sight from approaches, take verification photos.
5. Update records: return a revised sign schedule tied to your asset IDs for easy reordering.

Quick comparison: equipment location vs prohibition signs

Both are essential to fire safety, but they serve different purposes. Use the table below to choose the right style for each location.

Artwork, ordering and reordering

You can supply vector artwork (PDF, AI or EPS with fonts outlined) or let our prepress team set signs for you from your legend list. If you’re replacing or adding to an existing system, send a few photos so we can match your conventions.

Trade buyers can streamline repeat orders using our Trade Portal with customer-specific catalogues and saved artwork. We can set up site packs by building or level to make future reorders fast and accurate.

Popular SKUs for quick ordering: Fire Extinguisher sign, Fire Hose Reel sign, Fire Blanket sign, Hydrant sign, No Smoking / No Open Flames, Assembly / Muster Point.

Delivery across Australia

We manufacture in-house and ship Australia-wide, including regional and remote areas. Signs are packed to protect corners and faces in transit, with multi-pack labelling so installers can stage work by area.

Key takeaways

• Use red signs to locate fire equipment and alarms; use green for emergency information.
• Choose clear pictograms and short legends; add arrows where equipment is not in direct view.
• Select materials to suit UV, cleaning and impact risks; ACP and acrylic are robust long-term choices.
• Plan visibility along approach routes and avoid obstructions; consider overhead flags in large spaces.
• Follow current Australian guidance: AS 1319 (sign types/colours), AS 2444 (extinguisher/blanket location and identification), AS 2293.1 (exit signs), and AS 2419.1 (hydrants).
• Inspect regularly and repair/replace damaged or obscured signs promptly to maintain compliance and safety.
