When Are Fire Safety Signs Used?

Where they are required

Fire safety signs are typically required anywhere there is fire protection equipment, fire-related restrictions, or an area used for emergency control. The intent is to help people find equipment quickly, avoid obstructing it and understand how to use it.

Need compliant signs fast? Browse our collection pages: Fire extinguisher signs, Fire hose reel signs, Fire hydrant & booster signs, Fire door signs and the full Fire safety range.

In practice, signage is required wherever equipment must be located quickly under stress, where access must be kept clear, or where controls must be identified for first responders. Ensure that signs are visible from approach paths and not obscured by glazing mullions, partitions, racking or open doors.

Common locations in workplaces and public buildings

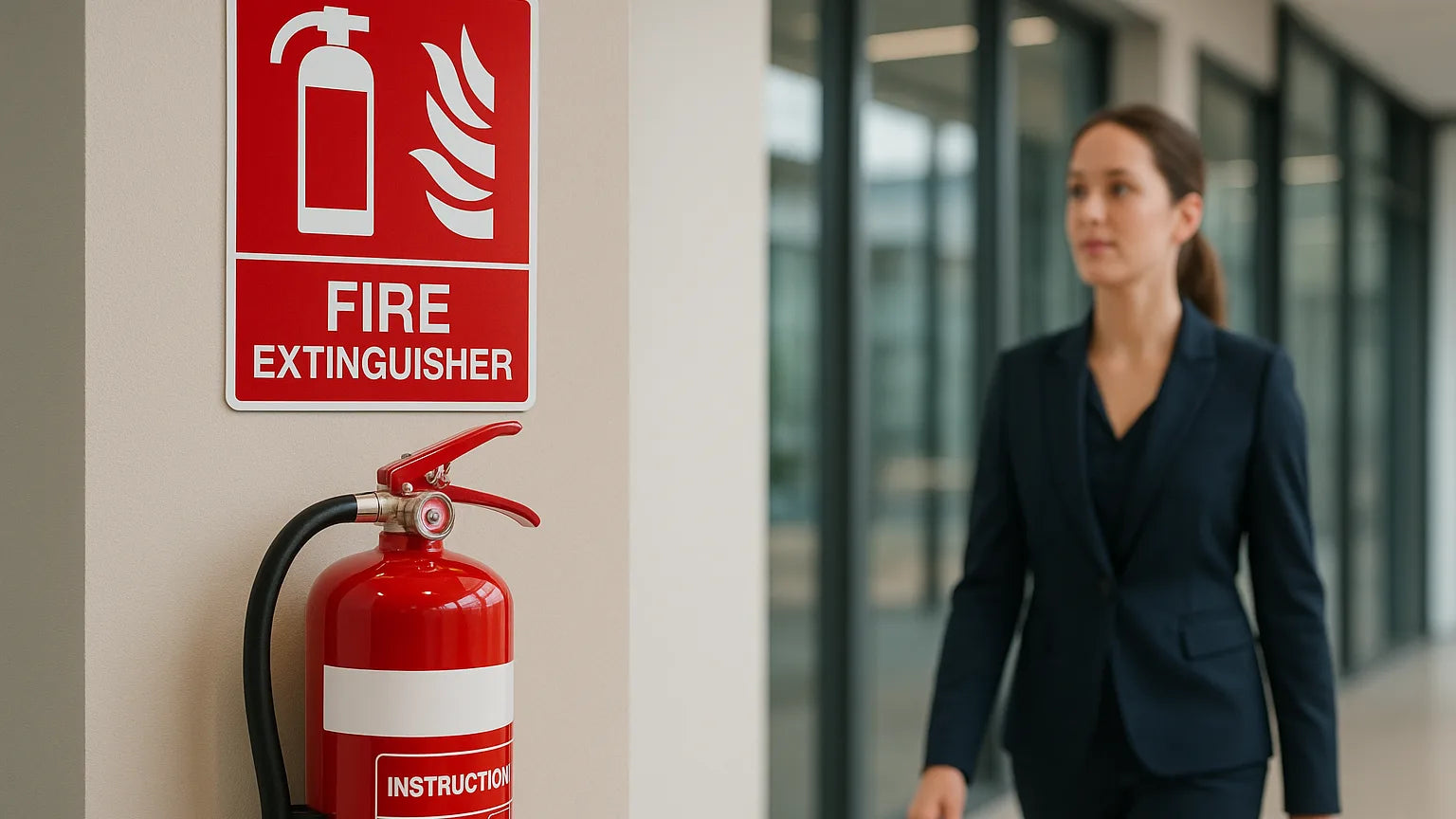

• At fire extinguishers: a wall-mounted sign above or adjacent to the unit so it can be located from a distance.
• At fire hose reels: clear identification of the reel location and direction arrows where needed.
• At fire hydrants and boosters: exterior building facades, car parks or property boundaries where fire services connect.
• At manual alarm call points (break-glass): signs indicating the alarm activation point.
• On or near fire doors: messages such as “Fire door — do not obstruct” to keep egress and fire compartments effective.
• Emergency control rooms and panels: labelled access doors and panels for authorised personnel.
• Fire indicator panel (FIP) and brigade connection interfaces: clear, durable identification at entries/foyers and external cabinets.

These locations are common across offices, retail centres, schools, hospitals, warehouses, hotels and strata/common areas. Construction sites, temporary facilities and events also require signage when fire equipment is provided.

Situations that trigger signage

• Installing new fire equipment (extinguishers, hose reels, hydrants/boosters, call points).
• Relocating equipment or changing floor layouts that affect line-of-sight to equipment.
• Fit-outs and refurbishments where walls, partitions or shelving could obscure existing signs.
• Upgrades to fire doors, emergency control rooms or fire indicator panels.
• Temporary worksites and events where portable extinguishers or hose reels are deployed.
• New tenancies, re-certification or changes to essential safety measures that alter equipment types or positions.

Directional aids make a measurable difference in large or complex buildings. Where a sign is not visible on first approach, add corridor arrows, ceiling flag signs or door header panels pointing to the equipment. You can order directional arrows and flag-mount options via our Fire safety range, including dedicated pages for fire extinguisher signs, fire hose reel signs and hydrant/booster signs.

Visibility height and sizing

• Extinguishers and hose reels: position location signs so the centreline is typically 2000–2400 mm above finished floor level (AFFL) and visible above furniture/partitions. Where ceiling heights are low, maximise visibility without causing glare.
• Hydrants/boosters: use larger format signs (e.g., 300 × 450 mm or 450 × 600 mm) outdoors to maintain legibility at distance; add directional arrows from vehicle approach paths.
• Corridor approach: if first sighting distance is 10–15 m, consider at least A3-equivalent area (297 × 420 mm) or larger, subject to site constraints.
• Fire doors: keep messages at eye height (about 1500 mm AFFL) and ensure doors can fully open without the sign contacting adjacent walls.
• Long spans or high-bay storage: consider double-sided flag mounts or overhead drop signs to achieve an uninterrupted sight line back to the equipment.

Materials that suit Australian conditions

Fire signage must remain legible for years, often in hot, bright and dusty conditions. Material choice depends on exposure, impact risk and mounting surface.

Typical substrates and uses

• Vinyl labels and decals: quick identification directly on equipment (e.g., extinguisher service tags, operating instructions). Suitable for smooth, clean surfaces.
• Traffolyte/engraving laminate: durable engraved plates for plant rooms, control panels and mechanical services labelling. Excellent chemical and abrasion resistance.
• Aluminium composite panel (ACP): rigid, lightweight and UV-stable for walls and fences. Ideal for indoor and outdoor fixed signs.
• Solid aluminium: robust option for harsh or high-impact areas, including industrial plants and transport yards.
• Acrylic or polycarbonate: used for tidy indoor finishes or where a glossy architectural look is desired.
• Corflute: temporary or site wayfinding for events and construction where equipment positions may change.

At Sign Portal, rigid fire signs are commonly direct UV printed on ACP using our Mimaki JFX EX flatbed printers for high-contrast red/white graphics. We laser-engrave traffolyte on our Trotec Speedy 500 for equipment plates and control labels, and produce durable vinyl decals on the Roland VG-640 for cylinders and cabinets.

We colour-manage to AS 2700 R13 Signal Red as a target for fire identification where applicable, and specify UV-rated inks/films for outdoor assets. Typical finishing options include R3–R5 corner radii, 5 mm mounting holes set 15–20 mm from edges, and 3M VHB 5952 tape with compatible surface primer for smooth substrates.

For hard-wearing external assets, we can add an anti-graffiti clear or select reflective films where improved night-time recognition is desired (e.g., driveway approaches to hydrant/booster connections). In coastal regions, we recommend solid aluminium or sealed ACP edges plus stainless fixings to mitigate corrosion.

Indoor versus outdoor considerations

Indoor and outdoor fire signage face different stressors. Indoors, glare and lighting uniformity matter; outdoors, UV exposure, wind and vandal resistance are key. Use the table below to select appropriately.

Temporary worksites and events

Pop-up facilities, construction compounds and event venues still need equipment identified. Portable extinguishers, hose reels and hydrants must be easy to find even as site layouts change.

• Use corflute for temporary wall/fence mounting and cable ties for rapid relocation.
• Consider A-frames or bollard sleeves near access points to draw attention.
• Floor graphics can guide staff to equipment in large indoor venues (smooth surfaces only).
• Re-check at each layout change that the first sight line to equipment includes a location sign; add interim arrows if needed.

Placement basics that improve effectiveness

Exact placement requirements depend on approvals and local practice, but the following principles consistently improve outcomes and reduce ambiguity during audits.

• Install close to the equipment: above or adjacent, not hidden by doors or shelving.
• Maintain line-of-sight from common approach paths; add directional arrows where equipment is around corners.
• Choose a sign size legible at the distance people will first look from (e.g., corridor entry vs. at the appliance).
• Avoid mounting on surfaces subject to frequent repainting without planning for reinstallation.
• Do not attach to fire doors unless the door rating and hardware supplier allow it.
• For external hydrant/booster sets, position signage so it is visible to fire appliances from the vehicle approach without obstruction by landscaping or parked cars.

If you are unsure about compliance nuances on a project, consult the fire contractor, building surveyor/certifier or facilities team. They will know if a building approval or maintenance regime specifies extra requirements.

Compliance snapshot (Australia)

Applicable standards and codes

• AS 2444 Portable fire extinguishers and fire blankets — Selection and location (signs identifying extinguisher locations are typically applied in accordance with this standard).
• AS 2419.1 Fire hydrant systems for buildings — System design, installation and commissioning (identification of hydrants/boosters).
• AS 1221 Fire hose reels (installation and identification).
• AS 1851 Routine service of fire protection systems and equipment (inspection/maintenance frequencies and records).
• AS 1319 Safety signs for the occupational environment (general sign design principles and symbols).
• National Construction Code (NCC) — Fire fighting equipment and services interface requirements: abcb.gov.au/ncc (see Volume One Part E1 and related specifications for fire-fighting equipment provisions).

State and territory references

• QLD — Building Fire Safety Regulation 2008: legislation.qld.gov.au — outlines occupier responsibilities for keeping fire safety installations (including signage) functional and unobstructed.
• NSW — Environmental Planning and Assessment Regulation 2021 (fire safety schedules/statements): legislation.nsw.gov.au — governs essential fire safety measures and annual statements, often listing specific signage.
• VIC — Essential Safety Measures guidance (VBA): vba.vic.gov.au — details owner obligations to maintain ESMs, including identification signage for firefighting equipment.
• WA — Building Regulations 2012 (Building and Energy): commerce.wa.gov.au — establishes maintenance of safety measures and compliance documentation.
• SA — Essential safety provisions (ESP) overview: sa.gov.au — explains prescribed safety provisions and building owner responsibilities.
• TAS — Maintenance of essential building services (CBOS): cbos.tas.gov.au — lists maintenance standards and documentation.
• ACT — Building (General) Regulation 2008 (prescribed essential services): legislation.act.gov.au — sets out essential services and maintenance requirements.
• NT — Building Regulations 1993 (essential services/maintenance): legislation.nt.gov.au — specifies essential safety measures and maintenance expectations.

Always confirm project-specific requirements with the certifier and fire contractor, as approvals and maintenance schedules can nominate sign content, size and locations.

Manufacturing methods we use

For rigid fire signs, we direct UV print to ACP on our Mimaki JFX EX flatbed printers, then cut to size or contour as required. For engraved plates, our Trotec Speedy 500 laser produces crisp text and symbols in traffolyte for long-term durability.

Where labels are needed on curved or small surfaces (extinguisher cylinders, cabinets), we print-and-cut high-adhesion vinyl on our Roland VG-640. For metal blanks and custom shapes, our MultiCam SM2412 CNC router handles accurate profiling, and our large-format 230 W CO2 laser can process suitable plastics for architectural finishes.

• Standard options we stock for rapid turnaround: 1.5 mm and 3 mm ACP; 1.6 mm traffolyte (red/white, white/red); 0.9 mm aluminium; high-tack vinyl systems for powder-coated cabinets.
• Mechanical prep: deburring and edge finishing to reduce snag risk in corridors; optional rounded corners for high-traffic areas.
• Fixing kits available: stainless screws, masonry anchors, rivets (4.0–4.8 mm), and pre-applied VHB tape with installation primers.
• Quality control: visual inspection under 5000 K lighting, adhesion spot checks on sample substrates and batch IDs applied to the back of each panel for traceability/reorder.

How we ensure repeatable compliance on production:

• Preflight of artwork against your signage schedule (message, arrow orientation, symbol set, substrate and size) with a two-person check before printing.
• Colour verification to AS 2700 R13 target within our RIP using a D65/10° measurement condition; sample swatches are filed with the job record for traceability.
• Hardware consistency: hole centres and corner radii applied from Sign Portal templates so replacement panels align with existing fixings on site.
• Packed by location (where schedules are supplied) with individual panel labels to speed installation and reduce site errors.

Ordering and artwork tips

Simple, consistent artwork reduces audit friction and helps staff respond faster in an incident.

• Supply vector artwork for symbols and arrows where possible (PDF, EPS, SVG, AI). If you only have a photo, we can advise options.
• Use high-contrast red/white for fire identification; keep text succinct and legible.
• Provide a signage schedule listing location, message, size, substrate and fixing method.
• For large multi-site orders, ask about customer-specific catalogues in our Trade Portal to streamline reorders.

We ship Australia-wide, including regional and remote delivery. If the signs will be installed in coastal or high-UV environments, note this at order time so we can confirm the most durable finish. You can also order directly from our category pages: Fire safety signs, Extinguisher signs, Hose reel signs and Fire door signs.

Installation methods that work

Match the fixing method to the substrate and surface. Test adhesion on painted or powder-coated surfaces if unsure.

• ACP/aluminium to walls: screws with appropriate anchors; or VHB tape on clean, sound surfaces.
• Fencelines: UV-stable cable ties through pre-drilled holes; add stainless fixings for long-term installs.
• Glass: optically clear adhesive or stand-off mounts where permitted by the building manager.
• Equipment labels: high-tack vinyl; clean/degrease surface thoroughly and avoid cold, dusty installations.

Avoid mounting where doors, carts or trolleys will strike the sign. Choose a slightly flexible substrate if minor impacts are likely.

Surface prep checklist we follow on installs: wipe with isopropyl alcohol (IPA 70–90%), ensure substrate temperature > 10 °C, avoid silicone-contaminated paints, and apply even pressure to activate VHB adhesives. For masonry, drill to manufacturer-recommended embedment depth and use stainless hardware in coastal zones.

Need install-friendly hardware or replacements? Order matched panels and decals from our Fire safety range or the dedicated pages for extinguisher signs, hose reel signs, hydrant/booster signs and fire door signs.

Repair of fire safety signage

Signs are assets that can often be repaired to extend life without compromising compliance.

• Minor graffiti: remove with approved citrus-based cleaner or anti-graffiti wipes; if laminated, avoid harsh solvents that can cloud the film. Test in an inconspicuous corner first.
• Edge lift on decals: warm gently (heat gun on low), lift, clean adhesive residue with IPA, then reapply a replacement decal section with firm pressure. Replace the whole label if legibility is affected.
• Loose panels: replace stripped anchors, upsize fixings where appropriate, or convert to through-bolting with backing washers. For taped installations, remove old tape, clean with adhesive remover, prime and re-tape.
• Faded printing: indoor signs may be relaminated if the print remains strong; otherwise replace with UV-stable media. Outdoor fading typically warrants full replacement.
• Updated equipment: when an extinguisher type changes (e.g., CO₂ to ABE), replace both location and operating instruction signage immediately.
• Bent corners or sharp edges: deburr and apply corner protectors where feasible; replace if the damage presents a snag risk in egress routes.

We stock spare decals, replacement panels and fixing kits matched to our originals. Quote your Sign Portal batch ID (on the back of rigid signs) and we can reproduce components for a precise fit. Replacement orders can be placed via the Fire safety signs category, including extinguisher, hose reel, hydrant/booster and fire door signs.

Maintenance and inspection

Fire signage only helps if it stays visible and accurate. Include signs in routine facility inspections, ideally alongside fire equipment servicing.

• Check visibility: no obstructions, good line-of-sight and adequate lighting.
• Check condition: no fading, peeling, graffiti, dents or missing fixings.
• Update after changes: if equipment moves or is replaced, update signs immediately.
• Clean with mild detergent; avoid aggressive solvents on printed surfaces unless tested.
• Align inspection frequency with AS 1851 routines for the associated equipment (e.g., monthly/6‑monthly checks), recording any remedial actions.

Replace damaged or faded signs promptly. If a recent refit changed layouts, re-walk approach paths to confirm directional signage still makes sense.

Common mistakes to avoid

• Too small: choosing a sign size that is legible only at arm’s length.
• Hidden by fit-out: installing before shelving, plants or privacy screens are placed.
• Mismatched systems: mixing pictogram styles that confuse users during emergencies.
• Poor adhesion: applying labels to dusty, oily or low-energy plastics without surface prep.
• Non-durable outdoors: using indoor materials in full sun or coastal spray environments.

What we can supply

We manufacture a full range of fire safety identification, including:

• Fire extinguisher location and type signs (rigid ACP or vinyl for cylinders).
• Fire hose reel and fire hydrant/booster signage for internal and external walls.
• Fire door and plant room identification plates (engraved traffolyte or printed rigid signs).
• Directional arrows, equipment ID discs, test/service labels and panel tags.

As a Veteran-Owned manufacturer with Local Buy credentials, our 480+ m² facility produces consistent, repeatable quality and ships nationally, including regional and remote areas.

Explore and order online: Fire safety signs, including extinguisher, hose reel, hydrant/booster and fire door categories. For custom wordings or unusual sizes, contact our team with your schedule and we’ll recommend compliant options.

Related Sign Portal resources: Fire Safety Equipment Directional Sign - White Arrow on Red · Fire Equipment Arrow Sign - Directional Safety Sign · Fire Door Safety Sign - Do Not Obstruct or Keep Open
