Industrial Safety Signage: Complete Guide for Australian Facilities

What these signs do and where they’re used

Industrial and mining sites rely on signs to communicate hazards, specify PPE, prohibit unsafe actions and direct people during emergencies. The right sign at the right location reduces incidents and standardises how safety information is presented to employees, contractors and visitors.

Effective programs link signage to the site risk register and the hierarchy of controls. Use signs to reinforce engineered and administrative controls (e.g., isolation procedures, traffic segregation) rather than replace them. Document each sign as an asset so maintenance, audits and replacements are predictable.

Typical applications include site entries and inductions, plant rooms, switchboards, confined spaces, chemical stores, loading docks, warehouses, workshops, fuel farms, heights access points and emergency muster areas. Temporary works and shutdowns also need fast, clear temporary signage that can be removed once risks change.

On busy sites with dust, vibration, UV and chemicals, material choice and manufacturing method directly affect how long a sign stays legible and attached. The sections below walk through categories, materials and practical decisions that keep signs serviceable.

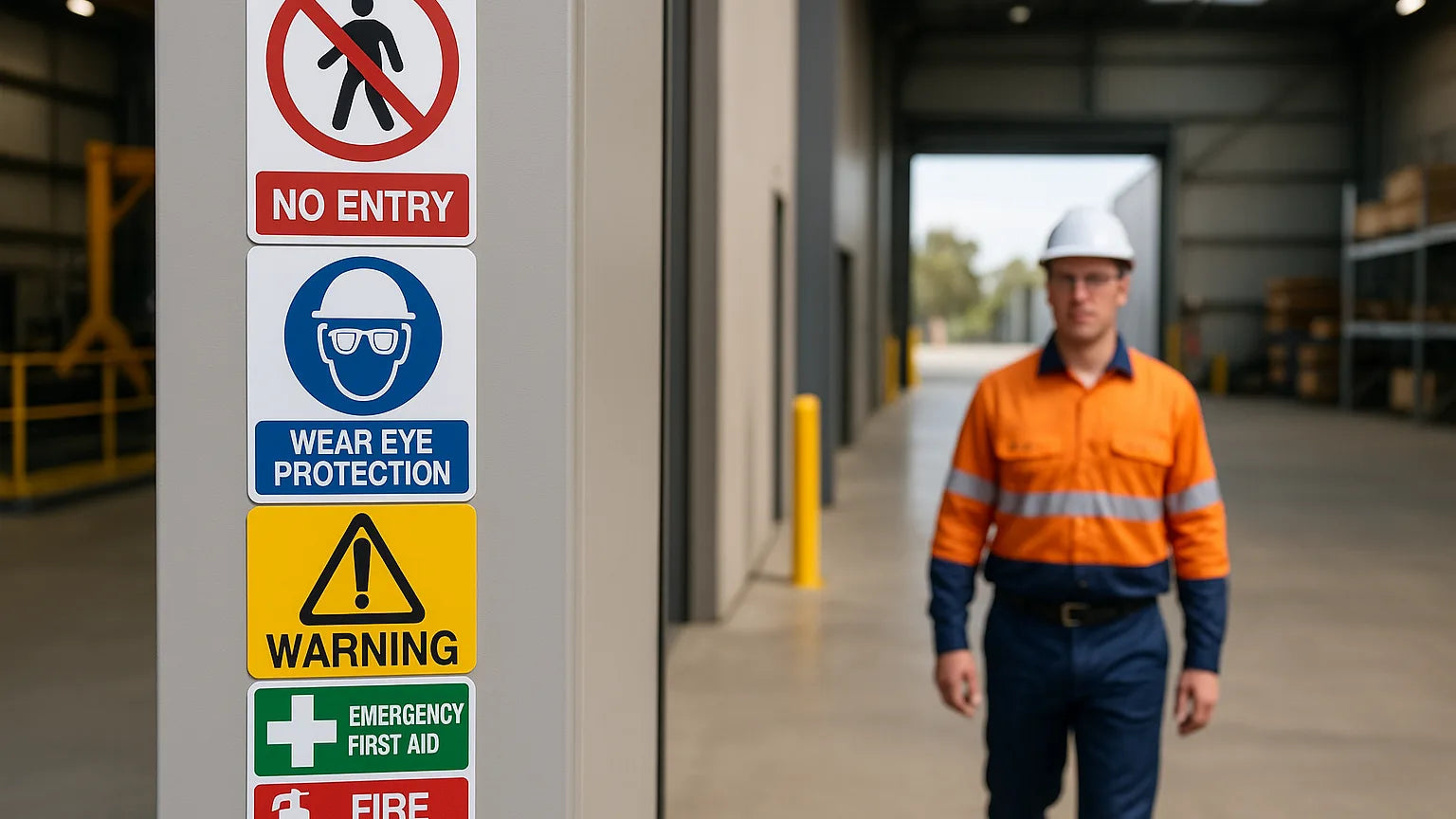

Common categories and meanings

Most Australian workplaces use a consistent set of categories so people can recognise intent at a glance. Below are widely used categories and where they fit:

• Prohibition: actions not allowed (e.g., no smoking, no entry). Placed at access points or near ignition sources.
• Mandatory: actions required (e.g., wear eye protection, hearing protection required). Located at entries to controlled areas.
• Warning/Hazard: identifies a hazard (e.g., forklift traffic, hot surface, high noise). Positioned near the risk with good sightlines.
• Danger: highlights a life-threatening hazard where extra attention is needed (e.g., live electrical apparatus).
• Emergency information: directions to first aid, eyewash, safety shower, emergency phone and muster points.
• Fire: identifies fire extinguishers, hose reels, hydrants and fire indicator panels, plus access requirements.
• Chemical/GHS labels: communicates substance hazards on containers and at storage locations.
• Pipe markers: shows line content, flow direction and safety information along pipe runs.
• Machine labels: cautions, isolation points, start-up/shutdown steps and lockout-tagout information.
• Floor graphics: pedestrian walkways, forklift exclusion zones, keep clear areas and traffic arrows.

Additional useful groupings on mining and industrial sites include Traffic management (private roads, load limits, speed zoning) and General information/Notice boards (contact names, radio channels, site maps). The best category is the one that matches the control you need people to take: stop an unsafe action, require PPE, warn of a hazard, or direct to emergency equipment. Consistency across the site matters more than any one individual sign.

Material choices for harsh sites

Choosing a substrate that suits the environment is crucial. Consider UV exposure, heat, dust, chemical splash, impact risk, wind load and cleaning method. Common industrial options include:

• Aluminium composite panel (ACP): rigid, dimensionally stable and corrosion resistant. Ideal for long-term outdoor signs on fences, walls and posts. Direct UV printed and CNC cut to size or shape.
• Corflute (fluted polypropylene): lightweight and economical for short-term or temporary works. Best for shutdowns, events and construction changes where signs will be removed.
• Foam PVC: smooth finish for indoor plant rooms, workshops and warehouses. Avoid in high-heat or harsh UV conditions.
• Engraving laminate (often called phenolic/“Traffolyte”): high-contrast, solvent-resistant labels for panels, valves and assets; laser engraved for permanence.
• Self-adhesive vinyl: for equipment labels, pipe markers and smooth walls; can be over-laminated for abrasion and chemical resistance.
• Acrylic: clear or coloured panels for control rooms and indoor directories; can be reverse printed for a protected face.

Match durability to risk. Permanent hazards usually warrant rigid, long-life substrates. Temporary hazards can use removable materials. Where chemicals are present, select finishes and laminates that tolerate cleaning agents in use on site.

• Typical thickness: ACP 3 mm for most fence/wall signs; 4–6 mm where larger formats or posts are used. Foam PVC 3–5 mm indoors. Engraving laminate 1.6–3.2 mm dependent on tag size.
• Finishes: UV-stable inks with clear over-laminate for abrasion/chemical resistance; anti-graffiti laminate where frequent cleaning is expected.
• Chemical compatibility: in fuel and processing areas, specify laminates rated for hydrocarbons, caustics and disinfectants used in your site cleaning SOPs.

Environmental notes:

• Coastal or fertiliser environments accelerate corrosion; prefer ACP with sealed edges and 316 stainless fixings.
• High radiant heat (boilers, kilns): avoid foam PVC; use metal or engraving laminate on stand-offs to create an air gap.
• Food/beverage hygiene areas: smooth, non-porous faces with chemical-resistant laminate simplify compliant cleaning.

ACP and Corflute at a glance

Industrial teams often choose between ACP for permanence and Corflute for temporary works. The table below summarises typical differences to help decide quickly.

Manufacturing methods used in-house

At Sign Portal, rigid safety signs are direct UV printed on our Mimaki JFX EX flatbed printers for durable colour and fast turnaround. Panels are then registered and cut to size or custom shape on our MultiCam SM2412 CNC router, including radius corners and drilled fixing holes where specified.

Equipment labels, pipe markers and floor graphics are produced on our Roland VG-640 wide-format printer/cutter, allowing print-and-cut decals with protective laminates. For long-life engraved plates, our Trotec Speedy 500 and large-format 230 W CO2 laser systems produce high-contrast engravings and precision cut-outs in suitable plastics and acrylics.

Clean, dedicated print rooms and a 480 m² facility support quality control across printing, laminating and finishing, with Australia-wide shipping — including regional and remote delivery.

Quality assurance (factory): calibrated colour profiles, on-press nozzle checks, adhesion cross-hatch tests on first-off panels, laminate cure time control, and final dimensional/holes check against drawings. Cartons are barcoded to workfronts for speed on site.

Sizing, legibility and layout

Legibility depends on viewing distance, lighting, and how long a person has to read the message. In practice, larger x-height, simple wording and strong contrast outperform busy designs.

• Use high-contrast colour combinations and standardised pictograms for fast recognition.
• Keep wording concise: action first, then context (e.g., Wear eye protection – grinding area).
• Prioritise hierarchy: heading, symbol, action, details. Avoid clutter around critical messages.
• Allow safe margins; avoid placing text near fixings or edges.
• Supply vector artwork where possible for crisp edges on symbols and text.

Rule-of-thumb for text size (for quick scoping; confirm against applicable standards and site trials):

• Minimum capital letter height of 3–5 mm per metre of viewing distance in typical industrial lighting.
• Examples: 25–35 mm caps for 7 m; 50–70 mm caps for 14 m; 90–120 mm caps for 25 m+ or vehicle approach.
• Increase size where glance time is short, the approach angle is oblique, or visibility is reduced by dust, glare or rain.

Low-light and high-glare conditions:

• Use retroreflective films where vehicle headlights are the primary light source (e.g., haul roads, perimeter gates). Specify appropriate reflectivity class for the environment.
• Use anti-glare, matte laminates on highly lit indoor panels to prevent specular reflection washing out legends.

Visibility performance data at a glance (technical source: AS 1319 general guidance on sizing; AS/NZS 1906.1 performance classes; OEM photometric data):

• Luminance contrast: target ≥ 30% between legend and background for quick recognition; 50%+ improves performance in dust or low light.
• Stroke width: 1/6 to 1/5 of capital height improves readability at distance.
• Retroreflective classes (AS/NZS 1906.1): Class 100 (engineer grade), Class 400 (high-intensity), Class 1100 (microprismatic). For haul roads and gates, Class 400 or 1100 is typically selected.
• Symbol size: PPE icons ≥ 75–100 mm diameter for 10–15 m viewing; ≥ 150 mm where vehicle approach speeds exceed 15 km/h.

Fixing and installation options

Mount methods should match substrate, surface and exposure. Popular options include pre-drilled holes with screws and washers, stainless rivets to metal posts, Uni-strut channel mounts, VHB tape with mechanical backup, cable ties through grommets and stand-off mounts for indoor panels.

On fences, ACP signs mount well with top and bottom rails or with stainless fixings through larger washers to spread load. On masonry, use appropriate anchors and avoid fixing near panel corners to reduce stress. For equipment and switchboards, self-adhesive labels or engraved plates with mechanical fasteners are common.

Always install so the sign remains visible along the approach path and at the point of decision. Avoid locations where vehicles, pallets or parked equipment routinely block sightlines.

Installation details that save rework:

• Fixings: 316 stainless hardware with penny washers; minimum edge distance 15–20 mm; hole size +1 mm over fastener diameter.
• Heights: pedestrian-facing signs 1.5–1.7 m to centre; vehicle approach signs sized up and set with clear lateral offset and mounting height consistent with site traffic plan.
• Adhesive mounts: clean with isopropyl alcohol, use a surface primer where specified, and back up with a mechanical fastener in high-wind or vibration areas.
• Wind exposure: for freestanding frames, confirm post sizes and foundations to suit region per wind actions guidance before install.

Cleaning and inspection

Set inspection intervals that reflect exposure and criticality. Outdoor and high-traffic areas need more frequent checks. Look for fading, abrasion, chemical attack, delamination and loose fixings.

• Clean with mild detergent and water; avoid harsh solvents unless the substrate and print system are rated for them.
• Replace any sign that is faded, cracked, illegible or physically damaged.
• Re-tension or replace fixings that show corrosion or movement.
• Record inspections for critical control points, especially emergency and fire signage.

Suggested frequencies (adjust to risk): Emergency/egress and fire equipment monthly; outdoor hazard boards quarterly; indoor plant signage six-monthly; floor graphics quarterly or after major shutdowns.

Repair and refurbishment

Many signs can be returned to service without full replacement. Use the following repair paths where safe and compliant to do so:

• Surface damage (scratches/graffiti) on rigid panels: remove contamination; apply anti-graffiti cleaner compatible with the laminate; replace only the face film where systems allow re-skinning on sound ACP.
• Edge lift or minor delamination: trim loose film; re-bond with approved edge-sealant. If core swelling or moisture ingress is present, replace the panel.
• Illegible legends due to minor updates: apply a precision-cut overlay decal to update a speed, PPE requirement or contact number. Keep overlays within clear margins and note the change in the sign register.
• Fixing failures: upsize to 316 stainless rivets or screws with penny washers, or add top/bottom rails. Where VHB tape is used, clean with isopropyl alcohol and apply primer; reinstate a mechanical backup fixing.
• Floor graphics: if lifting at edges, heat and re-roll with edge-seal. Replace modules that show abrasion through the graphic layer.
• Engraved tags: if legibility is reduced by infill contamination, clean ultrasonically or with non-abrasive solvent. Replace cracked or brittle tags.

Repair triage checklist:

• Is the primary safety intent still clear at 5–10 m? If no, replace.
• Is colour banding intact (e.g., red DANGER oval, yellow WARNING triangle)? If missing/faded, replace.
• Is substrate flat and sound? If bent, creased or swollen, replace rather than re-skin.
• Has more than one overlay been applied? Limit to a single overlay; beyond that, reprint for clarity.
• Record work in the sign asset register with date, technician and materials used.

Where a sign’s integrity is compromised (bent substrate, missing symbol/colour bands, structural corrosion), replacement is the correct control. Record the repair or replacement in the sign asset register for audit traceability.

Ordering and reordering

Clear specifications reduce queries and speed production. Include sign category, wording, symbol, material, size, quantity, fixing method (e.g., hole size and position), edge treatment (e.g., radius corners), and any laminate or engraving requirements.

Repeat orders are simplified through our Trade Portal with customer-specific catalogues and saved artwork. This reduces errors, ensures consistent colours and allows quick reprints across multiple sites nationwide.

• Helpful inclusions: site code, asset ID, GPS or grid location, risk owner, and photo of install position.
• Mounting details: post spacing, fence mesh pitch, available substrate (e.g., switchboard face material), and any hot work restrictions.

Cost factors to budget for

Budgets are shaped by substrate, size, quantity, finishing and any custom fabrication. Rigid panels cost more upfront but often less over the lifecycle compared with repeatedly replacing temporary signs. Consolidating orders and standardising sizes can improve yield from sheets and reduce waste.

• Substrate and thickness
• Print method and protective laminate
• Cutting complexity (square vs custom shape)
• Fixing hardware preparation (holes, slots, channels)
• Packed delivery destinations and split shipments

Freight and regional delivery

Industrial sites are often remote. We ship Australia-wide, including regional and remote delivery. Rigid panels are protected with corner guards and interleaving; decals ship flat or on rolls with labels to aid distribution across large facilities.

When ordering for remote sites, consider spare quantities for critical signs, and consolidate consignments to minimise delays from weather or access constraints.

Case study: Mining signage rollout (Bowen Basin, QLD)

Context: A multi-pit coal operation needed to standardise safety signage across CHPP, workshops, fuel farms and haul roads before a major shutdown and contractor mobilisation.

• Scope: 1,080 signs and labels over 7 weeks, including site entry boards, PPE mandatory clusters, isolation point tags, pipe markers and emergency directional signage.
• Constraints: Dust, UV, chemical exposure (diesel, oils, degreasers), limited hot work windows, remote delivery with single weekly access.
• Solution:
  • Standardised artwork library aligned to AS 1319 categories and the site’s risk register.
  • ACP 3 mm with anti-graffiti laminate for outdoor boards; foam PVC indoors; engraved laminate for isolation and valve IDs; retroreflective film for gate and vehicle approach signs.
  • Pre-drilled hole pattern and post centres unified to 600 mm to simplify installs; VHB + rivet mechanical backup where hot work was restricted.
  • Numbered sign schedule with GPS references; carton labelling matched to work areas for rapid distribution.
• Execution: Two factory waves (weeks 1–3, 4–6) with mid-phase field verification. A mobile repair kit supported on-the-spot adjustments (overlay amendments, extra fixings) to avoid return trips.
• Outcome: All priority areas completed ahead of shutdown. The asset-tagged sign register enabled targeted replacements after weather events and reduced ad-hoc reprints. Supervisors reported clearer induction briefings using the new standard layouts.
• Lessons: Approve a master legend list early, lock in mounting standards, and bundle deliveries by workfront to cut install time.

Standards and technical references (Australia)

Use these references to inform design, selection and placement. Always apply the latest edition and your site’s WHS procedures.

• AS 1319:1994 Safety signs for the occupational environment — category designs, colours, layouts and general size guidance for workplace signs.
• Safe Work Australia: Labelling of workplace hazardous chemicals — Code of Practice — GHS labelling requirements and examples.
• AS 1345:1995 Identification of the contents of pipes, conduits and ducts — colour identification and legends for pipe markers.
• AS 1742 (series) Manual of uniform traffic control devices — for roadway signs on private haul roads and interfaces.
• AS/NZS 1906.1:2017 Retroreflective materials and devices for road traffic control — reflectivity classes and performance where retroreflective is specified.

For structural design of freestanding signs and wind loading, consult a competent engineer and AS/NZS 1170.2:2021 Wind actions. Emergency exit signage and lighting should align with AS/NZS 2293 (series).

Practical note: AS 1319 covers occupational safety signage and does not replace traffic standards on roads. For legibility assumptions on vehicle approach, align sizing with your traffic plan and the relevant parts of AS 1742 and industry guidance.

Next steps

Audit current signage against your site risks, note gaps, and standardise categories, sizes and materials for consistency. Then specify substrates by environment — ACP outdoors, foam PVC or acrylic indoors, and engraved laminates for equipment labels — and plan installation with durable fixings. We manufacture in-house and can help document a repeatable catalogue so your teams can reorder quickly.
