Where Should Mandatory Signs Be Installed?

Direct guidance you can apply today

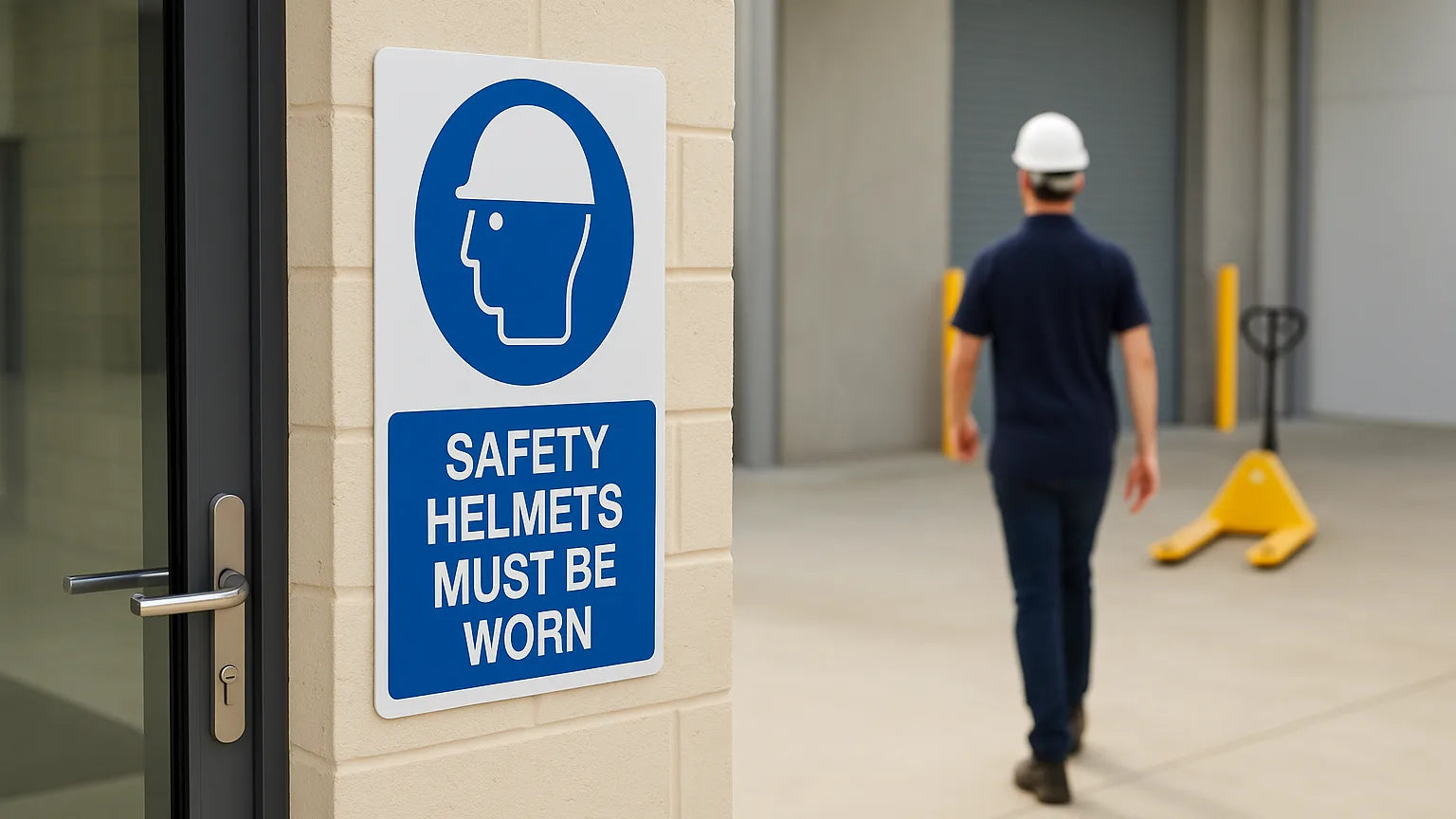

Install mandatory signs where the behaviour needs to start — at the entry to the area, at the beginning of the task, or on the equipment itself. Mount them in the normal line of sight as people approach, with nothing blocking the view, and ensure the sign is large enough to be read before a person reaches the decision point.

Core placement principles

Use these simple rules to decide exact locations on site. They are practical guidelines that work across offices, warehouses, construction sites and workshops. Always confirm with your site WHS policy and any project-specific requirements.

• Point of decision: Place the sign where the person must start complying (e.g., before stepping onto the factory floor where hearing protection is required).
• Line of approach: Put signs so they face the typical direction of travel, not at right angles to it.
• Eye level and readable: Mount around average eye level for your users and make the sign large enough for the viewing distance.
• Unobstructed and uncluttered: Keep clear of door swings, stacked goods, foliage, posters and competing messages.
• Consistent and repeated: Reinforce at secondary entrances and long corridors so new arrivals cannot miss the instruction.
• Durable and appropriate: Use materials suited to indoor, outdoor, coastal or heavy-industrial conditions so the message stays legible.

Technical note: for seated plant operators (forklifts, reach trucks), typical eye height is 1.2–1.4 m; consider a duplicate sign in this band as well as one at 1.5–1.7 m for standing pedestrians.

Typical locations that work

Mandatory instructions should be seen before a person is exposed to the relevant risk. The examples below cover common workplaces and flows of movement.

Entrances and access points

• Main entry to production areas: “Hearing protection must be worn”.
• Doorway into laboratories or cleanrooms: gowning, eyewear, glove requirements.
• Construction site gates and turnstiles: PPE requirements grouped on a board at the gate.
• Controlled zones (battery rooms, spray booths, plant rooms): mandatory controls displayed on the door or adjacent wall.

Task and equipment zones

• On or next to machinery guards: “Eye protection must be worn when operating”.
• Beside grinders, weld bays, cutting tables and CNC enclosures: specific PPE instructions.
• Chemical decanting stations and wash areas: glove and eye/wash requirements.
• Forklift charging and battery maintenance: eye protection and no smoking (instructional and prohibition signage co-located but distinct).

Amenities and change areas

• Outside change rooms or PPE issue points to remind people to don gear before re-entering controlled areas.
• At tool cribs and issue counters where tasks begin (e.g., hearing protection pick-up).
• Near lockers or gowning benches to reinforce correct order of putting on gear.

Height, size and viewing distance

Signs work only if people can see and read them in time. Use practical, field-tested guidelines below as a rule of thumb and check against your site rules.

• Mounting height: Around typical adult eye level helps visibility in most workplaces. In areas with frequent forklift or plant traffic, consider adding a duplicate sign lower or higher as needed for seated operators or high cabs.
• Viewing distance: Choose larger formats for long corridors or open warehouses. The greater the distance, the larger the symbol and text needed for quick recognition.
• Illumination and contrast: Ensure adequate lighting and avoid mounting on backgrounds that reduce contrast (e.g., blue sign on blue wall). If necessary, use a white backboard to boost contrast.
• Angles and glare: Avoid positions that catch strong reflections from glazing or polished floors. Slightly cant the sign to face the approach path.

Advance detail for specifiers: the legibility of text depends on cap height (uppercase height) or x‑height (lowercase height). Our calculator and table use cap height. If you specify in x‑height, apply about 0.7–0.75 of cap height for the same legibility. Sans‑serif, high‑stroke‑width typefaces outperform condensed or decorative fonts in industrial settings.

Safety sign sizes: viewing distance guide

The mandatory blue symbol is recognised first, then any text. As a rule of thumb from Sign Portal’s in-field trials, plan uppercase text height around distance (m) × 4 (mm) for moving users. In poor light or where vehicles approach, increase size. Use the guide below to choose a starting size and upsize if sightlines are busy or obstructed.

Notes: values are guidance for workplace safety signs, not road traffic control. Symbol-led layouts can be recognised further than the text; however, if the decision depends on reading words (e.g., “Hearing protection must be worn”), choose the larger size.

Technical ratios we build into our templates: on rectangular mandatory signs with both symbol and legend, the blue symbol typically occupies 60–70% of the sign width, and the legend block 25–35% of the sign height. Increasing overall size scales both zones and preserves recognition distance without crowding text.

Calculator: viewing distance to sign size

Enter your distance to get a quick recommendation. This uses Sign Portal’s sizing rule of distance (m) × 4 (mm) for text height, then picks the smallest sign where the available text zone is large enough. Upsize for extra margin in complex environments.

Viewing distance (metres): Approach: On foot Vehicle (forklift/ute) Lighting: Good Poor / night Calculate Use the viewing distance guide table above if JavaScript is disabled.

Indoor versus outdoor considerations

Indoor and outdoor locations demand different thinking for size, fixing and material choice. Use the quick comparison below to make faster decisions.

Australian safety sign standards (summary)

• AS 1319:1994 Safety signs for the occupational environment: Defines sign categories (Mandatory, Prohibition, Warning, Danger, Emergency), layouts, symbols, and colours for workplaces. Mandatory signs use a white pictogram within a solid blue circular field with any text in black on white. Sign Portal templates follow AS 1319 layouts and colour ratios.
• ISO 7010 pictograms: While ISO 7010 is not the Australian standard, many symbols are widely recognised. We use ISO 7010-derived pictograms where they enhance recognition, while retaining AS 1319-compliant layouts.
• Reflective performance: For reflective workplace signs, we specify films consistent with the performance classes used in AS/NZS 1906.1. For public roads, use road-legal signs designed to AS 1743/AS 1742; workplace safety signs are not substitutes for traffic control devices.
• Model WHS Regulations and Codes of Practice: Safe Work Australia’s model framework expects signage where administrative controls are required, but signage does not replace higher-order risk controls. Place signs so a person can comply before exposure to risk.

Need help aligning with AS 1319? Our prepress team will review your artwork against the standard’s intent (sign category, layout, colours, legend wording) before we manufacture.

• Colour references: We target the mandatory blue to AS 2700 B41/B21 range under D50 lighting and verify with an X‑Rite spectrophotometer; we hold ΔE00 < 3 to your approved swatch.
• Typeface and legend: AS 1319 does not mandate a font; we use clear, geometric sans‑serif faces with sufficient stroke width and letter spacing for industrial legibility. Legends are concise, action‑led and avoid mixed case ambiguity.
• Layout discipline: Symbol above legend on rectangular formats; adequate white margins retained so the blue disc and text do not crowd edges, preserving the sign’s visual signal value.

Material and durability choices

Choose substrates and finishes that match the environment so the symbol stays bold blue-and-white and easy to recognise. At Sign Portal, we manufacture a wide range of mandatory signs using in-house processes and materials suited to Australian conditions.

• Aluminium composite panel (ACP): Rigid, flat and durable for indoor and outdoor. Ideal for gates, walls and fences. We can direct UV print on ACP using our Mimaki JFX EX flatbed printers and cut to size on our MultiCam SM2412.
• Polycarbonate or acrylic (PMMA): Impact-resistant options where high durability or clarity is needed. Suitable for factories and transport corridors.
• Foam PVC: Lightweight indoor option for offices, amenities and corridors. Mount with screws or quality double-sided tape.
• Corflute: Good for temporary outdoor worksites and events. Cable-tie to temporary fencing; replace when worn.
• Self-adhesive vinyl labels: For machinery, cabinets and smooth doors. Our Roland VG-640 wide-format printer/cutter produces contour-cut labels; add an overlaminate for abrasion resistance.
• Reflective vinyl: Consider for low-light outdoor gates or 24/7 yards where vehicles approach at night.

Installation methods and fixings

Mounting depends on the surface and how long the sign must remain in place. Use fixings that suit the substrate and workplace conditions.

Walls and doors

• Screws and wall plugs: Reliable for masonry and timber. Use appropriate anchors and washers.
• High-bond tape/VHB: Clean, fast and ideal for smooth, sealed surfaces. Press firmly across the full area.
• Adhesives: Construction adhesives for permanent installs; allow cure time per manufacturer guidance.
• Note: Seek building approval before fixing to fire-rated doors or heritage surfaces.

Fences and temporary barriers

• Cable ties: Fasten corflute or ACP to chain mesh; use multiple ties and trim ends neatly.
• Clamp brackets: For hoarding panels or round posts; prevents rattle in high wind.
• Eyelets: Add eyelets to lightweight panels or banners for even load distribution.

Machinery and enclosures

• Adhesive labels: Clean, degrease and dry the surface first. Avoid textured areas that reduce bond strength.
• Magnetic panels: For steel cabinets where frequent repositioning is required.
• Fasteners to guards: If screwing to guards, ensure fasteners do not interfere with safety stops or machine operation.

Glazing and windows

• Window decals: Apply on the approach side to avoid reversed icons. Consider a white backer for contrast.
• Removable options: Low-tack films for temporary project stages or leased spaces.

Common mistakes to avoid

Small placement errors can undermine otherwise good safety systems. Avoid the traps below.

• Mounting after the hazard — instructions must appear before entering the controlled area.
• Placing too high, too low or behind door swings.
• Clustering with unrelated posters so the message is lost in visual noise.
• Using indoor-only materials outdoors, causing fading, peeling or corrosion.
• Choosing a sign that is too small for the viewing distance.
• Failing to repeat signs at secondary entries or long walkways.

Quick audit checklist

1. Is every mandatory instruction visible before entry to the relevant area?
2. Is the sign in the normal line of approach and at typical eye level?
3. Is the size appropriate for the viewing distance?
4. Is the message unobstructed, well lit and high contrast?
5. Is the material suitable for indoor/outdoor and local conditions?
6. Are duplicate signs installed at secondary entries or long approaches?
7. Are fixings secure and surfaces clean, with no peeling edges?

Maintenance and inspection frequency

Plan regular checks so the message remains clear. Busy, dusty or outdoor sites may need more frequent cleaning and inspection than offices or amenities areas.

• Cleaning: Wipe with mild detergent and water; avoid harsh solvents on printed surfaces.
• Fixings: Check screws, ties and adhesives for loosening, corrosion or failure.
• Visibility: Trim vegetation, move stacked pallets and remove clutter that blocks the line of sight.
• Damage and fading: Replace if colours or symbols lose clarity.

Sign Portal can supply QR-coded asset labels for each sign and a simple register template so inspections are logged by location and date. We archive print files and material lot codes for a minimum of 5 years to streamline like-for-like replacements.

Repair: practical field fixes

Many minor issues can be repaired safely to extend service life. If in doubt, replace the sign to preserve legibility and compliance.

• Lifting vinyl edges (labels): Clean the area with isopropyl alcohol (IPA, 70–90%), dry, then apply a compatible edge-sealant. Burnish with a felt squeegee; hold pressure for 30 seconds.
• Loose fixings (rigid signs): Replace corroded screws with stainless steel and add nylon washers to avoid panel crush. Re-tension cable ties; use UV-stable ties outdoors.
• Graffiti and overspray: Use a citrus-based graffiti remover on a microfibre cloth and test on a corner first. Rinse with mild detergent solution. Avoid acetone, MEK or thinners on printed faces.
• Surface oxidation (ACP): Wash with pH-neutral cleaner; if chalking persists, apply a non-abrasive marine polish. Do not cut back printed graphics.
• Cracked corflute: Short-term: back with ACP offcuts and cable-tie through both layers. Schedule replacement at next maintenance window.

Tip: Photograph the issue and the wider approach path. Our team can confirm whether a repair is practical or if upsizing/relocation would solve the root cause (e.g., repeated scuffing by pallets).

• Field kit we use: 70–90% IPA wipes, stainless steel 304/316 screws, UV-stable cable ties, nylon washers, felt squeegees, low‑tack masking tape, VHB 5952 or equivalent, and compatible edge sealant. PPE: safety glasses and nitrile gloves when handling solvents.

When replacement is safer than repair

Repairs make sense for minor issues, but replacement is the safer option when the sign is cracked, badly faded, vandalised, delaminated or repeatedly obscured by site operations. Consider upgrading to more durable substrates or adding backboards, posts, or reflective films when recurring issues are identified.

Ordering, reordering and artwork

To speed up ordering, supply the mandatory instruction, preferred symbol, environment (indoor/outdoor), approximate viewing distance and mounting surface. At Sign Portal, we direct UV print rigid signs on our Mimaki JFX EX flatbeds, produce vinyl labels and print-and-cut sets on our Roland VG-640, and laser-cut plastics on our Trotec Speedy 500 in a clean, dedicated production space.

• Request consistent sizes and heights across a site for a professional look and faster recognition.
• Ask for overlaminates on labels where abrasion or frequent cleaning is expected.
• For multi-site rollouts, talk to us about customer-specific catalogues and repeat ordering via our Trade Portal.

How Sign Portal assures quality and consistency

• Colour-managed production: We verify the mandatory blue against ICC profiles using an X‑Rite spectrophotometer and hold ΔE00 < 3 to your approved sample.
• Material traceability: Each batch is labelled with substrate and film lot codes so repeat orders match finish and reflectivity.
• Durability by design: UV inks are LED-cured to spec on our Mimaki JFX EX, then, where required, overlaminated on a calibrated cold-roll laminator to reduce abrasion and chemical attack.
• Fit-for-purpose checks: We cross-check each job ticket for environment, viewing distance and fixing method before print, reducing sizing and placement errors at install.
• Process control: Daily nozzle checks and weekly colour verification; RIPs profiled (Mimaki RasterLink / Roland VersaWorks) to our in-house media libraries for ACP, polycarbonate and vinyls.
• QA framework: Documented procedures aligned to ISO 9001 principles — first‑article checks, in‑process inspections and final sign‑off with photographed samples for complex rollouts.

Australian environmental considerations

Australia’s climate ranges from tropical to alpine and coastal. Factor in local conditions when you choose materials and placement.

• High UV exposure: Prefer UV-stable inks and substrates; consider overlaminates to protect graphics.
• Coastal sites: Use corrosion-resistant fixings and durable panels; rinse salt buildup during maintenance.
• Heat and dust: Choose materials that tolerate temperature swings; plan more frequent cleaning on mine and quarry sites.
• Wind loading: Use robust fixings on fences and posts; avoid positions where flapping materials can tear.

Worked examples: sizing in context

• Example 1 — Pedestrian approach, indoors: 9 m viewing distance in a corridor, good light. Required cap height ≈ 9 × 4 = 36 mm. From the guide, 300 × 450 mm comfortably supports 35–50 mm cap height — choose 300 × 450 mm.
• Example 2 — Vehicle approach, outdoor gate at night: 18 m viewing distance, forklift drivers. Base cap ≈ 18 × 4 = 72 mm. Apply vehicle (×1.5) and poor light (×1.25): 72 × 1.5 × 1.25 ≈ 135 mm. From the guide, 600 × 900 mm tops out near 110 mm; select 900 × 1200 mm and specify reflective graphics.

Commissioning and documentation

• Verification photos: After install, record a straight‑on view and an approach view at the design distance to confirm legibility and lack of obstructions.
• As‑built schedule: Log sign code, size, substrate, fixings and GPS/site grid reference. Our production labels include batch and lot codes for traceability.
• Review cycle: Add signage checks to your WHS inspection routine; when processes change, reassess sign category and placement rather than just swapping legends.
