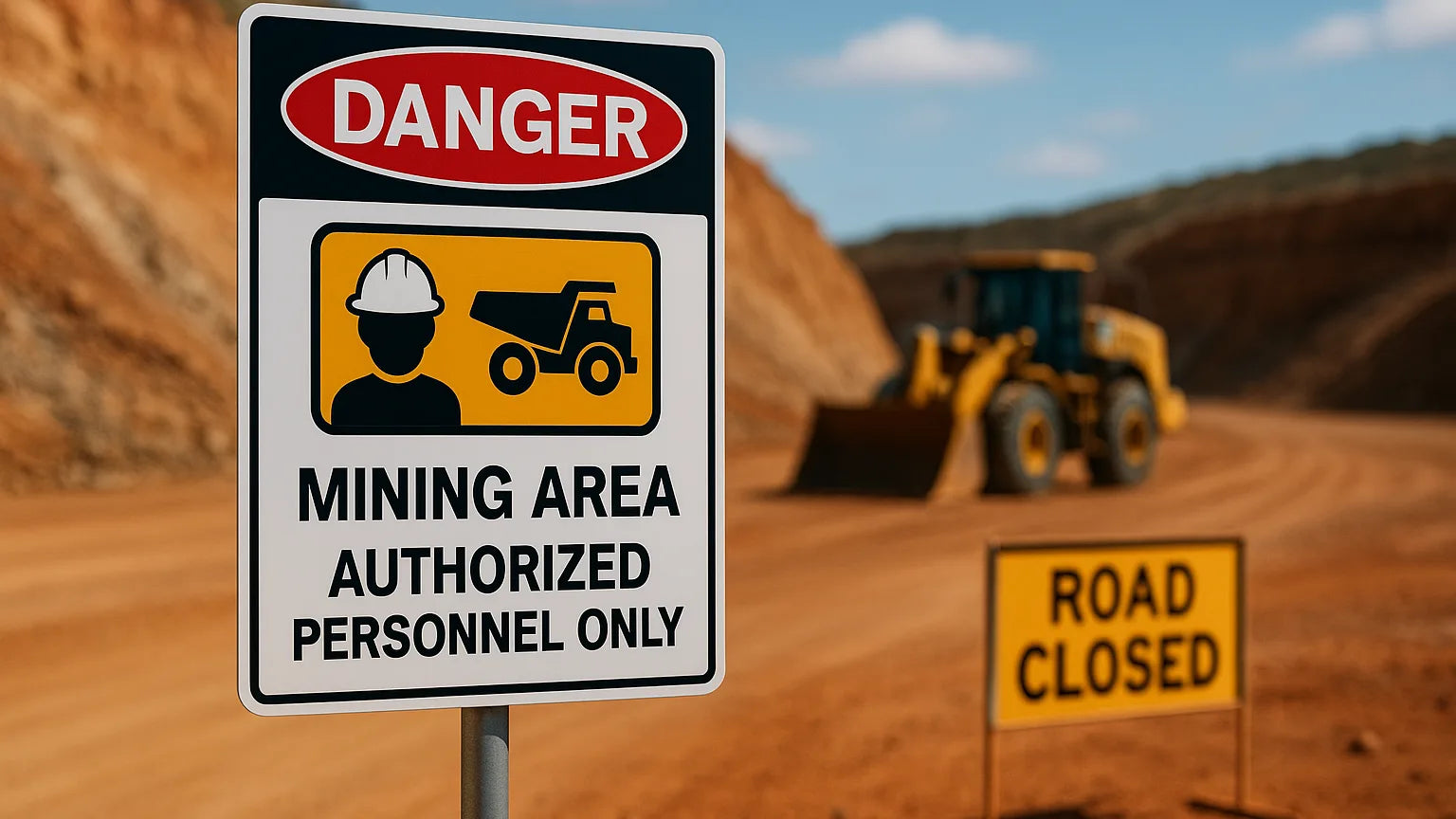

Mining Site Signage: Common Sign Types and Materials

Why robust signage matters on site

Mine sites demand signage that stays readable through heat, UV exposure, dust, vibration and rough handling. Faded or damaged signs are more than cosmetic issues — they can contribute to near-misses and downtime.

Choosing the right material for the task — permanent panels versus temporary boards, reflective versus non-reflective, printed versus engraved — is the fastest way to reduce replacement cycles and callouts.

For long-term, mine-tough panels, see Custom ACP Safety Signs — fabricated, printed and finished in-house by Sign Portal for rapid turnarounds and consistent reorders.

Where mine environments punish signage, the failure modes are predictable — UV fade, edge lift, bracket slippage and impact damage. Sign Portal addresses these upstream with substrate selection, polyurethane or cast-PVC overlaminates, radius corners and fixture-ready drilling. Our field kits include stainless fixings and channel hardware so installs land first time, every time.

Ready to standardise or roll out a new program? Order online via Custom ACP Safety Signs and attach your checklist and artwork — we’ll return proofs and an install-ready kit list within one business day.

Core categories on a typical site

Most operations share a common set of sign types. Grouping needs by category simplifies ordering and helps standardise artwork across assets and contractors.

• Mandatory PPE: Hard hat, hi-vis, safety glasses, hearing protection and respiratory icons at entries and task zones.
• Prohibition: No entry, no unauthorised vehicles, no ignition sources, no mobile phones near refuelling.
• Hazard: Danger and warning headers for high voltage, blasting, confined spaces, pit edges, overhead loads and pinch points.
• Traffic control: Speed limits, give way, stop, haul route markers, zebra crossings, UHF channel signage and delineators.
• Wayfinding: Admin, crib rooms, wash bays, workshops, fuel farm, laydown yards and emergency muster points.
• Emergency and first aid: Eyewash, spill kits, fire points, AED and emergency phones.
• Operational controls: Lock-out tag-out boards, isolation points, permit boards, maintenance status tags.
• Environmental and chemical: Bunding, waste segregation, water quality points and chemical handling areas.
• Electrical labelling: Panel IDs, cable markers, arc-flash warnings and equipment nameplates.
• Temporary works: Project notices, detours, shutdown boards and contractor safety briefs.

Material selection for harsh conditions

Start with the environment and expected lifespan, then match the substrate, print and laminate. On mines, durability and fast install usually outrank ultra-fine aesthetics.

• Aluminium composite panel (ACP): Rigid, flat, light and corrosion resistant. Excellent for long-term panels on fences, buildings and freestanding posts.
• Aluminium sheet: Robust and fully metal for high-heat areas or where metal-only is preferred. Good for bolting to structures or equipment.
• Corflute (fluted polypropylene): Budget-friendly for temporary works, shutdowns and construction changes. Best when cable-tied to fences or star pickets.
• Polycarbonate or acrylic: Clear covers, machine guards and where impact resistance or window mounting is needed. Polycarbonate offers superior impact resistance.
• Engraving laminate (Traffolyte-style): Multi-layer plastic engraved on a laser for durable valve tags, switch labels and equipment plates.
• Reflective vinyl: Improves night visibility on traffic and emergency signs; can be applied to ACP or aluminium. Choose a reflectivity level to suit site risk and viewing distance.
• Protective overlaminates: Anti-graffiti or heavy-duty UV laminates improve abrasion and chemical resistance on high-wear signs.

ACP thicknesses we stock day-to-day: 3 mm (most mine panels) and 4 mm (large span or high-wind areas). Aluminium sheet commonly used: 1.6–3.0 mm 5005/5052 grade. Reflective choices aligned to AS/NZS 1906.1 include Class 2 (RA1) for general site use and Class 1W (RA2+ prismatic) for haul roads and night operations.

Films and laminates: we specify cast or engineered-grade reflective (3M, Avery Dennison, Orafol) to AS/NZS 1906.1, paired with 60–80 µm UV-capped laminates for general duty or 40–50 µm anti-graffiti polyurethane films for high-grime areas. Edges on aluminium panels can be sealed on coastal jobs to slow salt-creep.

Manufacturing methods that hold up

In-house control over print, cut and finish is critical for turnaround and consistency. Direct-to-substrate UV flatbed printing produces durable colour on rigid sheets, while wide-format printers handle reflective films and decals.

• UV flatbed printing: Our Mimaki JFX EX flatbeds print directly onto ACP, aluminium and acrylic, producing crisp graphics with instant cure.
• Wide-format print and cut: A Roland VG-640 produces vinyl and reflective graphics, with contour cutting for decals and overlays.
• CNC routing: The MultiCam SM2412 cuts precise shapes, rounded corners and holes in ACP and aluminium for clean installs.
• Laser cutting and engraving: A Trotec Speedy 500 and a large-format CO2 laser cut plastics and engrave laminates for plates and tags.
• Laminating: Protective UV and anti-graffiti films extend life on high-touch and traffic-facing signs.

Sign Portal quality controls include ICC-managed colour with spot checks via a spectrophotometer, traceable batch IDs on every panel reverse, and fixture-ready finishing (deburring, 6–10 mm corner radii, pre-drilled holes to your bolt pattern). Each job travels with a digital work order and QC checklist covering substrate lot, ink set, lamp hours, laminate roll and router tool ID — supporting fast, precise reorders months or years later.

Quick comparison: temporary versus permanent panels

Temporary traffic changes and project works call for lightweight boards, while critical safety and plant identification suit rigid, long-life materials. Here is a simple comparison to choose quickly.

Durability in Australian conditions

Australian mines combine high UV, heat, sudden storms and abrasive dust. Coastal and gas fields add salt exposure; northern sites add tropical humidity. Materials and finishes should be chosen to withstand these factors.

• UV stability: Direct UV inks plus a UV overlaminate add fade resistance on long-term panels.
• Abrasion and cleaning: Anti-graffiti laminates allow solvent wipes to remove grime and diesel residue more easily.
• Impact and vibration: Use thicker panels or reinforced mounting for areas exposed to plant movement and wind buffeting.
• Corrosion resistance: Prefer stainless steel fixings and avoid dissimilar metal corrosion where possible.

For reflective traffic and haul road signs, specify sheeting class to AS/NZS 1906.1 and mount with sign channel and stainless brackets to maintain rigidity under buffeting. Where salt or acid wash-down is present, use 316 stainless hardware and isolate aluminium from steel frames with nylon spacers to reduce galvanic corrosion.

Installation and fixing methods

Fast, secure installs keep crews moving. Select fixings based on substrate and whether the sign is temporary or permanent.

• Fences: Cable ties or stainless clamps for temporary signs; bracketed frames for permanent boards.
• Posts: Galvanised posts with channel and sign brackets for rigid ACP or aluminium panels.
• Buildings and transportables: Tek screws into steel cladding, rivets to aluminium, or VHB tapes on smooth surfaces.
• Equipment: Riveted or screwed plates; engraved tags cable-tied or clipped to looms and valves.
• Ground-mounted: Star pickets and sleeves for Corflute and small ACP panels during temporary works.

Installer notes from our field crews: common hole patterns are Ø6.5 mm for M6 hardware and Ø9 mm for M8; corner radii R6 or R10 mm prevent burrs catching PPE. For bracketed installs, torque M8 stainless with nylocs to 8–10 N·m and re-check after 24 hours. For bonding, 3M VHB 5952 with surface prep (isopropyl alcohol and adhesion promoter on powder coat) achieves high peel strength — avoid on dusty or chalked paint.

Legibility and artwork setup

Clarity beats decoration. Use high-contrast colours, simple pictograms and plain, bold type. Ensure wording is concise and free of jargon.

Supply vector artwork where possible. Preferred file formats include PDF, AI, EPS and SVG. Embed or outline all fonts; include a clear naming convention for each asset ID to support reorders.

• Keep key messages at eye height where practical.
• Allow margins so fixings do not obscure text or icons.
• Test visibility from typical viewing distances for vehicles and pedestrians.
• As a rule of thumb, allow ~1 mm of letter height per 300 mm of viewing distance (e.g., 75–100 mm letters for vehicle-first areas).

For AS 1319 compliance, match header styles (DANGER, WARNING, MANDATORY, PROHIBITION) and ensure adequate letter height for viewing distance. Typical mine panels: 600 × 450 mm (pedestrian), 900 × 600 mm (mixed), 1200 × 900 mm (vehicle-first zones).

Ordering and repeatability

Consistent reorders reduce downtime. Provide sizes, material choice, finish (e.g., matte or anti-graffiti laminate), reflective requirement, fixing preferences and any asset IDs or barcodes/QR codes.

For programs with frequent updates, use a maintained catalogue and templated layouts. Repeat orders can be streamlined through a trade ordering workflow with stored artwork and previous job references.

Sign Portal can data-merge asset IDs and QR codes into your templates, stamp batch and location codes on the panel reverse, and keep your approved colour library for exact cross-site matches.

Kitting and packaging: on request we bag stainless hardware per location, label bundles by area/sequence, and palletise large panels with corner protectors and slip sheets to prevent transit rub.

Cost drivers and value engineering

Budget control on large sites comes from standardisation and the right material for the job. Avoid over-specifying reflective films or thick substrates where they are not needed, and avoid under-specifying for long-term safety boards.

• Material: Corflute saves on temporary works; ACP or aluminium lowers lifetime cost for permanent panels.
• Size and thickness: Larger and thicker increases sheet yield and freight costs; choose the smallest effective size.
• Finish: Laminates add life; use them where cleaning or abrasion is expected most.
• Hardware: Pre-drilled holes and rounded corners reduce labour on install.
• Batching: Group orders to optimise print runs and sheet nesting.

Mine signage ordering checklist (print‑ready brief)

• Sign category and header: AS 1319 type (Danger/Warning/Mandatory/Prohibition), pictograms required.
• Message text: exact wording, capitalisation, abbreviations approved by HSE.
• Quantity and batching: total units, grouped by location or install date.
• Size: e.g., 600 × 450, 900 × 600, 1200 × 900 mm; portrait or landscape.
• Substrate: ACP (3 or 4 mm), aluminium (1.6–3.0 mm), Corflute (5 mm), engraving laminate (thickness/colour).
• Reflective: none / Class 2 (RA1) / Class 1W prismatic (AS/NZS 1906.1); colours required.
• Finish: matte / gloss / anti-graffiti laminate.
• Fixings: hole pattern (diameter/spacing), sign channel/brackets, rivets/screws, or VHB tape.
• Edge treatment: corner radius (R6/R10), deburr requirement.
• Artwork: files (PDF/AI/EPS/SVG), fonts outlined, colour references (Pantone/RGB/CMYK), icon set.
• Identification: asset ID, barcode/QR content and symbology, re-order code on reverse.
• Locations: map or grid references, mounting surface details (steel, mesh, concrete), height constraints.
• Compliance: site standards, any client-specific templates, bilingual requirements.
• Logistics: delivery address, packaging (flat/kitted by location), induction or access notes.
• Timeframes: required-by date, partial deliveries allowed, critical path items flagged.

Repair and refurbishment

Not every damaged sign needs full replacement. Sign Portal offers workshop and on-site repair options to extend life and keep critical messages visible.

• Clean and assess: Wash with pH‑neutral detergent; note UV fade, delamination, bent corners and hardware corrosion. Photograph and record panel re-order code.
• Re-skin ACP: Where cores are sound, we remove loose graphics, abrade, solvent-wipe and apply new printed/laminated film — cost‑effective and fast.
• Overlay corrections: Apply compliant decals over outdated details (e.g., UHF channel changes) without pulling the whole panel.
• Edge and hole repair: Fit larger washers or backer plates; de-burr and round damaged corners to stop glove snags.
• Reflectivity check: If retroreflectivity falls below site threshold (per AS/NZS 1906.1 guidance), schedule replacement.
• Graffiti and diesel staining: Use approved anti-graffiti cleaners on laminated surfaces; avoid abrasive pads that haze the film.

Typical repair turnaround: 24–72 hours in our workshop for re-skins and overlay updates, subject to quantity. Emergency reprints can be prioritised where safety is at risk.

Our technicians follow a documented repair SOP: IPA wipe (70–90%) and tack-rag, light abrasion (Scotch-Brite or 400–600 grit) to key the surface, solvent wipe, adhesive promoter where specified, then lamination with calibrated pressure and dwell time. For fixings, we replace rusted components with 304/316 stainless and add nylon spacers to isolate dissimilar metals.

Repair intake checklist (attach to email or order)

• Photo set: front, reverse (showing batch/re-order code), fixings and context.
• Panel size and substrate (ACP/aluminium/other) and thickness if known.
• Damage notes: fade, delam, impact, hardware, graffiti, reflectivity concern.
• Update details: new text, UHF channel, speed value, asset ID changes.
• Turnaround needed: standard (72 h) / urgent (24 h) / ship-to-site / collect.

Maintenance and change-out

Set inspection intervals for critical signs. Replace any panel with faded colours, cracked laminate, damaged fixings or obscured text. Clean laminated signs with mild detergent; avoid abrasive pads that scuff the surface.

For temporary signs, plan a retrieval and disposal process to keep the site tidy and reduce FOD (foreign object debris) risks.

We can support audits with batch logs and, on request, spot checks of retroreflectivity using a handheld reflectometer to verify RA class performance remains within tolerance.

Standards and compliance

Our artwork templates align to AS 1319 for safety sign layouts. Reflective selections are specified to AS/NZS 1906.1 classes for mine and private road applications. We can also match client road-sign standards (e.g., MUTCD-derived layouts) where required.

• Production is colour-managed with ICC profiles and spectrophotometer spot checks to keep cross-site repeatability tight.
• Install crews carry current White Cards and, where required, tickets for EWP and Working at Heights. SWMS and JSEA are provided with all on-site works.
• Traceability: each panel reverse can carry a batch ID, re-order code and install date to streamline audits and change-outs.

Summary

Match the sign material to the task: ACP or aluminium for long-term safety and wayfinding, Corflute for short-term works, reflective films where night visibility matters and engraved laminates for equipment IDs. Combine direct UV printing, suitable laminates and robust fixings to achieve reliable performance in Australian mining conditions.

Next step: send your brief or start an order via Custom ACP Safety Signs. We’ll confirm materials, proofs and installation hardware so your crew can install safely and quickly.
