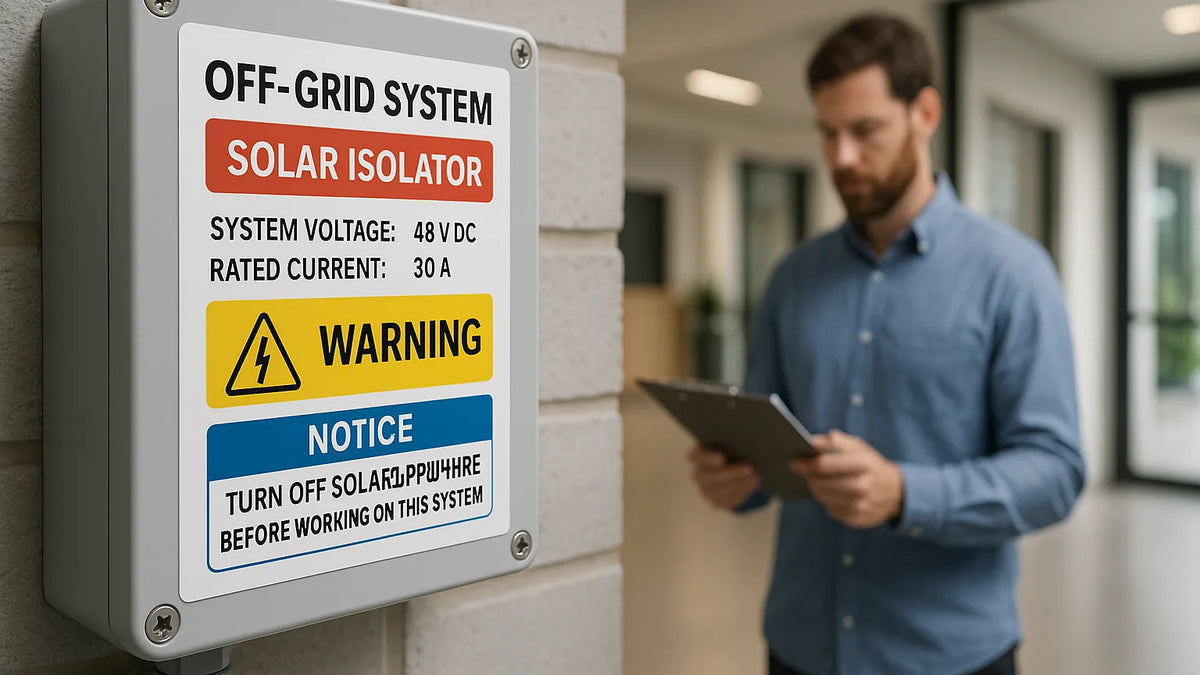

Off-Grid System Labels: Complete Guide

Scope: off-grid system labels (stand-alone power/SAPS)

Where are off-grid system labels used? On battery enclosures, DC combiners, inverters and chargers, distribution boards, PV isolators and junctions, generator interfaces, changeover switches and monitoring equipment. The aim is rapid recognition of the device, its role and any critical safety information at the point of use.

In practice, this also covers MPPT charge controllers, ATS (automatic transfer switches), rectifiers, DC disconnects at battery strings, earthing/ground bars, UPS bypasses and communication cabinets. Labels at doors and room entries should communicate key hazards before a person encounters electrical risk inside (e.g. battery rooms, generator sheds).

Always take exact content from the project drawings, equipment schedules and client specification. Labelling supports the broader safety system, but it never replaces safe procedures and competent electrical work.

What to include: off-grid system labels (complete guide)

Not every device needs the same label. Confirm final wording, units and symbols against the project documentation and any applicable requirements before production. Use the checklist below to align content.

• Equipment identifier (e.g. DB reference, inverter ID, string number)
• Function or location (e.g. Battery isolation, DC combiner, Changeover switch)
• Electrical characteristics where specified (e.g. nominal voltage, phase, polarity, supply source)
• Hazard warnings appropriate to the risk (e.g. stored energy, arc flash, hot surfaces)
• Isolation point instructions and direction where relevant
• Emergency or service contact details when specified
• QR code or barcode linking to manuals or maintenance forms (if adopted)

For SAPS and DC plant, additional fields are often helpful: maximum DC voltage, short‑circuit current rating, system earthing type, battery chemistry, energy capacity (kWh), and the normal supply source (e.g. PV‑battery, generator, hybrid).

Keep messages concise. Long paragraphs reduce legibility at arm’s length. Use symbols consistently so technicians can recognise functions quickly, especially in low light.

Safety formats for off-grid system labels (SAPS risk)

Match the safety label format to the actual risk. Workplace safety‑sign conventions are useful when a label communicates a hazard rather than a simple identifier. Select the category that matches the hazard and avoid using a higher‑severity format solely for emphasis.

• Use a danger format only for life‑threatening hazards.
• Use a warning format for non‑immediately life‑threatening hazards.
• Use mandatory format when an action must be carried out (e.g. PPE at a battery room entrance if the workplace procedure requires it).

Apply these conventions when a label’s primary purpose is safety communication. Keep identifier plates separate from safety messages to avoid visual dilution. Size selection should consider viewing distance and lighting; increase letter height and symbol size where the normal approach is more than a few metres or where visibility is compromised.

Materials and manufacturing for off-grid system labels

Choose a construction that matches exposure, hygiene and serviceability. The options below cover common off-grid label builds used on SAPS equipment.

Off-grid label option: engraved two-layer laminate

Multi‑layer engraving laminates produce permanent, high‑contrast text and symbols by removing the cap layer to reveal a contrasting core. They are widely used for switchboard, equipment and control labels. Engraving is resistant to many cleaning processes, and the message is not a surface ink that can wear off. Outdoor‑rated grades are available; select an exterior‑grade stock for exposed sites.

Typical specs: 1.6–3.2 mm thick exterior‑grade laminate, corner radius 2–3 mm to prevent catching, and either mechanical fixing or high‑bond adhesive backing. For long, narrow plates on sun‑exposed metal, allow for thermal movement and avoid over‑tightening.

Off-grid label option: printed and laminated decals

Digitally printed self‑adhesive labels allow full‑colour content, symbols and QR codes. Adding a clear protective laminate improves abrasion resistance and cleaning durability and can add UV filtering. Edge sealing or radius corners help reduce peel at exposed edges. This route suits curved surfaces or where future face replacement is likely.

For durability, pair a stable film (polymeric calendered or cast) with a UV‑resistant overlaminate (70–100 micron typical). Use high‑bond acrylic adhesives matched to the substrate: standard for painted metals and HSE plastics, LSE‑rated for powder coat and PP/PE. Where edges meet the weather, round to ≥3 mm radius and consider edge‑sealing.

Off-grid label option: reverse-printed acrylic plates

For a premium, cleanable face, a graphic can be reverse‑printed to clear acrylic so the image is protected behind the material. This works well for directory‑style plates on enclosures or control rooms where a flat, hygienic face is desirable. Standoff fixings can provide clearance where condensation or washdown is expected.

Specify 3–6 mm acrylic, reverse‑print with an opaque backing (white flood for contrast), and use 304/316 stainless stand‑offs where moisture is present. Anti‑glare faces help under harsh lighting.

Off-grid label option: direct print to rigid panels

UV flatbed printing onto compatible plastics or metal plates can simplify construction by avoiding a separate film layer. It is effective for larger placards and door plates, subject to the substrate and exposure conditions. For harsh clean‑down, request an additional clear coat or overlay.

Common substrates include aluminium composite panel (3 mm) for placards and polycarbonate for impact resistance. Where chemicals are present, confirm compatibility of both substrate and clear coat.

For critical safety labels where an AS 1319 colour convention applies, prioritise durability and colour stability over decorative effects. Where vandalism is a risk, specify mechanically fixed plates rather than adhesive‑only decals.

Adhesion and fixing for off-grid system labels

Self‑adhesive mounting is convenient for many labels when the receiving surface is smooth, clean, dry and compatible with the adhesive. Texture, oil residue, chalking paint, low‑surface‑energy plastics and cold temperatures can reduce adhesion. Always follow the media manufacturer’s preparation guidance.

• Self‑adhesive: fast to install on smooth, clean surfaces; choose adhesive for substrate and temperature range.
• Mechanical fixing: screws, rivets or brackets suit larger plates, textured or difficult substrates, or long‑term security.
• Combination: plate fixed mechanically with a replaceable printed face for future updates.

Preparation matters: clean and degrease the surface with a compatible cleaner as directed by the adhesive manufacturer using a lint‑free wipe, allow it to dry, then apply firm pressure for full wet‑out. Use adhesion promoter on challenging plastics if the system specifies it. Conduct a small‑area pull test where failure would be consequential.

Plates mounted to enclosures should avoid creating sharp edges, cracking or galvanic corrosion between dissimilar metals. External fixings may need corrosion‑resistant hardware and sealing where exposure demands it.

Application conditions affect bond: most pressure‑sensitive adhesives prefer >10 °C surface temperature and 24–72 hours to reach full strength. For rivets, match hole size to the shank (e.g. 4.0 mm for 1/8–5/32 in) and de‑burr to stop stress cracks.

Off-grid system labels in Australian conditions

Exposure drives material selection. North‑ and west‑facing installations in Australia receive high UV loads; heat, moisture and dust also challenge label systems. Select media, laminate and substrates for the actual exposure rather than assuming a generic rating applies everywhere.

• UV and heat: printed systems benefit from UV‑resistant inks and compatible laminates; darker colours can run hotter.
• Coastal: prefer corrosion‑resistant fasteners and consider more frequent inspection due to salt and windborne abrasion.
• Industrial and mining: abrasion, chemical cleaning and impact risk often favour engraved plates or heavy‑duty laminates.

No printed sign should be assumed to remain unchanged indefinitely in severe outdoor conditions. Build inspection and replacement into maintenance plans.

Artwork, data and change control for off-grid system labels

Schedules and variable data for off-grid labels

For projects with many identifiers, a structured spreadsheet or database reduces manual artwork edits and improves consistency for equipment references, sizes and wording. Variable‑data workflows can reproduce errors consistently, so source data should be carefully checked before manufacture.

Artwork preparation for off-grid system labels

Provide vector paths for logos and cut shapes where possible, with suitable image resolution for any raster elements. Include clear finished dimensions, allow bleed for edge‑to‑edge graphics and separate cut or drill layers from print layers. For QR codes, maintain a quiet zone and test scanability at the intended distance before approval.

Proofing and prototyping for off-grid labels

Artwork proofing allows stakeholders to confirm wording, spelling, colours, dimensions, quantities and layout before production.

Where an unusual material, mounting method or visual finish is involved, a prototype can validate readability, colour and fit prior to volume production.

Installation guidance: off-grid system labels

Plan locations so labels are readable from the normal approach path and not obstructed by doors, cabling or mounted accessories. Position safety messages where they are seen before a person reaches the hazard or must take an action.

• Avoid drilling or fixing blindly into enclosures or structures that may conceal services.
• Do not compromise ventilation, ingress protection or electrical clearances.
• For large placards or outdoor plates, consider wind exposure and select fixings accordingly.

Where labels face vehicle routes, installation work should address site traffic management and exclusion zones during the task.

Inspection, cleaning and replacement of off-grid system labels

Inspection frequency should reflect consequence and exposure. High‑risk labels, vandal‑prone locations and harsh outdoor environments may need more frequent checks than stable indoor tags.

• Cleaning: use methods compatible with the material, print and laminate. Test unfamiliar cleaners first.
• Replace when: fading, cracking, delamination or damage prevents reliable reading, or when instructions change.
• Documentation: maintain a sign schedule noting location, purpose, dimensions, material and artwork reference to streamline like‑for‑like replacements.

Repair and refurbishment of off-grid system labels

Where labels are damaged but the backing plate or hardware is sound, repair avoids full replacement and downtime.

• Printed face refresh: if a printed face was designed as a replaceable overlay, remove the face only, clean residue with compatible adhesive remover, and apply a new laminated face to the existing plate.
• Engraved plate re‑use: minor scuffs can be de‑burred and edges dressed; for changed text, produce a like‑for‑like plate and reuse existing holes and hardware.
• Adhesive re‑bond: where corners have lifted but the surface remains sound, trim back to a clean edge and apply a patch or replace the face; if widespread, remove fully, re‑prepare (degrease, abrade if appropriate), and re‑bond with the correct adhesive or convert to mechanical fixing.
• Hardware service: replace corroded screws/rivets with corrosion‑resistant equivalents; seal fixings where water ingress is a risk.
• Data integrity: ensure any serials/QR codes are reissued and linked to the same asset in the maintenance system to preserve history.

Case study — off-grid system labels for a remote facility

The project combined in‑house engraving and printing with structured data, proofing and staged logistics to suit remote access.

• Scope: battery rooms, PV arrays, inverters/chargers, changeover switches and generator interfaces, with a mix of engraved plates and printed decals.
• Process: variable‑data merge from equipment schedules, artwork proofing against supplied drawings, and a prototype to confirm readability and fit before full rollout.
• Logistics: consolidated packaging and Australia‑wide freight planned around site mobilisation and access constraints.
• Adjustments: installation feedback can trigger material or fixing changes (e.g. switching from adhesive‑only to mechanically fixed plates on challenging surfaces).
• Spares: an agreed overage of common plates and blank backers shipped with the main batch to cover late adds and damage during install.

Manufacturing at Sign Portal: off-grid system labels

Production is completed in‑house in Brisbane using wide‑format and UV printing, laser cutting and CNC routing. This allows printing, cutting, engraving and fabrication steps to be coordinated in one workflow for custom sizes and short‑run work.

• Engraved labels and plates: produced via laser engraving and marking on suitable laminates and plastics.
• Printed decals: wide‑format printing with contour cutting for custom shapes; laminates selected for the environment.
• Reverse‑printed acrylic: full‑colour print protected behind the face of clear acrylic where appropriate.
• Cut‑to‑shape components: CNC routing or laser cutting creates custom plates, holes and profiles for reliable fixing.

In‑house capabilities that matter on SAPS projects include serialised QR codes or barcodes generated from your asset register, matched sets of plates and faces for staged rollouts, and jigged drilling or cutting for repeatable hole patterns. Our production files retain your approved wording and sizes, enabling rapid repair or like‑for‑like replacement when equipment is serviced.

Artwork proofing is standard prior to manufacture, and short‑run custom manufacturing supports site‑specific wording, sizes and variable identifiers. Finished work is packaged to protect printed faces, corners and edges, with Australia‑wide freight available including regional and remote dispatch.

Putting it together: practical steps for off-grid system labels

1. Define scope: extract the device list from drawings and schedules; mark safety vs identifier labels.
2. Apply AS 1319 where relevant: select category and format for safety messages; keep identifiers separate.
3. Select materials: match exposure and substrate; decide mechanical vs adhesive fixing.
4. Prepare artwork/data: set sizes for the viewing distance; gather variable data; request a prototype if unsure.
5. Install correctly: prepare surfaces; use appropriate fixings; verify readability on the approach path.
6. Maintain lifecycle: inspect, clean, and repair or replace based on condition; keep the sign schedule current.
