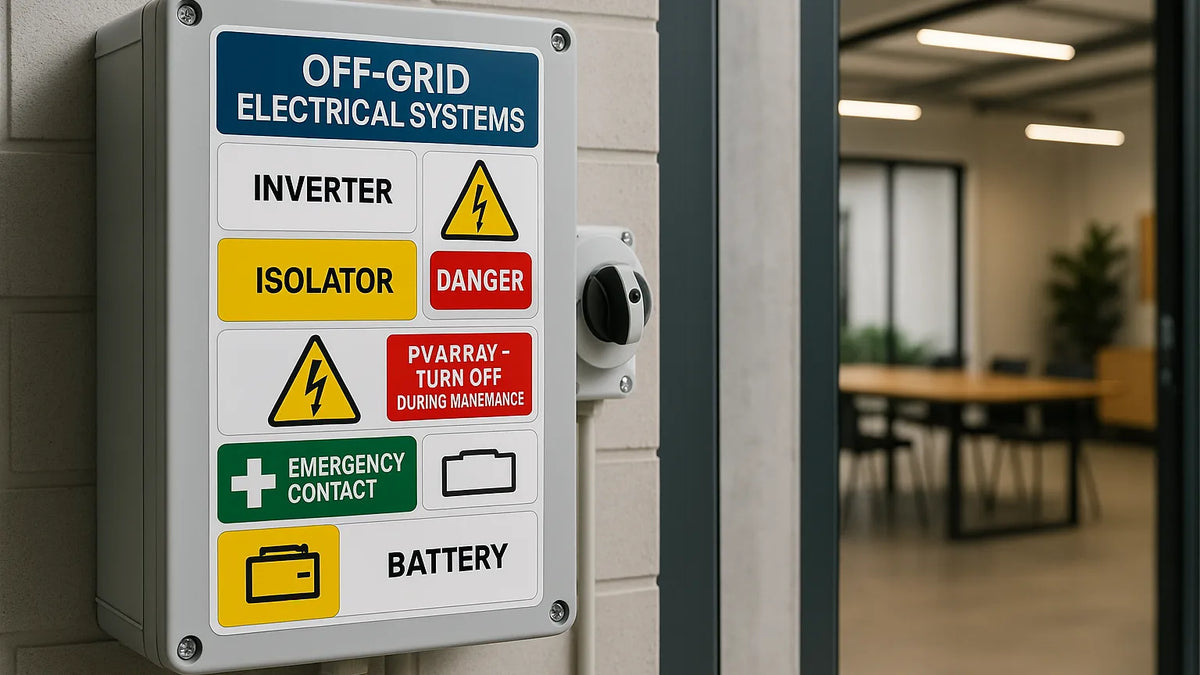

What Labels Are Commonly Used on Off-Grid Electrical Systems?

Clear, durable labelling is critical on remote plant and off‑grid electrical systems. Sign Portal manufactures complete, kitted label packs in Brisbane for Australian conditions — from the red centre to the coast.

What labels are commonly used on off‑grid electrical systems?

Most off‑grid electrical systems use six label categories: equipment/location IDs, isolators and operating positions, AS 1319 hazard/safety signs, ratings and connection IDs, battery/enclosure warnings, and operating/maintenance notices. This core set covers what each device is, how to isolate it, what hazards exist and which connections belong where.

The following label categories cover most sites and can be adapted to residential, agricultural, industrial and remote camps without forcing a one‑size‑fits‑all spec.

Equipment and location identification labels for off‑grid electrical systems

Identification labels name equipment and locations so users and technicians can find the right device quickly. On an off‑grid system, these identifiers reduce errors during isolation, testing and fault finding.

• System components: inverter/charger, DC combiner, charge controller, generator interface, distribution board, transfer switch.
• Storage and enclosures: battery cabinet, battery room, ventilated enclosure, lockable plant room.
• Infrastructure: ground array frame, equipment hut, meter panel, communications cabinet.

Structured, variable‑data production is useful here. At Sign Portal, label sets can be driven from an approved spreadsheet schedule so equipment references, circuit numbers and cabinet IDs are reproduced consistently across dozens or hundreds of items, reducing manual retyping errors.

Labels for isolators, switches and operating positions on off‑grid electrical systems

Clearly label DC/AC isolators, selector switches and changeover points so operation is safe and swift. Place function labels directly at the device and add cues where rapid access is needed.

• Function and position: DC isolator, AC isolator, generator changeover, emergency stop, normal/backup selector.
• Direction and state: on/off, open/closed, I/0 symbols, source A/B.
• Access notes: authorised personnel only, do not operate under load (where applicable to the device).

Where a switch must be reached in an emergency, pair the device label with directional or positional cues near doorways and approach routes so it can be found quickly.

Match the legend to how the hardware actually moves. Vertical handles can make an “ON” that visually looks like “UP” and confuse new users. A small arrow and “Up = ON”/“Down = OFF” note near the knob removes doubt.

Hazard communication and AS 1319 safety labels for off‑grid electrical systems

Use safety labels to make hazards visible before work begins. In Australian workplaces, AS 1319 defines prohibition, mandatory, warning, danger and emergency information signs. Selecting the correct category preserves meaning and helps avoid message fatigue.

• Danger where life‑threatening conditions may exist (for example, high energy storage, risk of electric shock) — used appropriately, not as a generic header.
• Warning for non‑life‑threatening hazards (for example, hot surfaces, moving parts, confined space access conditions).
• Mandatory actions near plant (for example, wear eye protection when servicing batteries; follow isolation procedure).
• Prohibition notices (for example, no smoking or open flames near battery ventilation discharges).
• Emergency information (for example, first aid kit location, emergency exit direction where relevant to the plant area).

Keep regulated AS 1319 signs at compliant sizes and formats. Use smaller engraved or printed plates for equipment IDs and instructions, but don’t downsize a required safety sign into a tiny legend plate.

Electrical ratings, polarity and connection labels for off‑grid electrical systems

Ratings and connection labels let technicians verify the correct system and test settings at a glance, and help operations staff explain system capacity and limits.

• Electrical values: nominal system voltage, typical operating range, maximum equipment current and identification of DC vs AC sections.
• Polarity and phase: DC +/− at terminals and busbars; L/N/E on AC distribution points; earthing and bonding symbols at designated points.
• Connection mapping: cable tags, ferrule markers, QR codes linking to up‑to‑date single‑line diagrams or lock‑out/tag‑out instructions (where a QR complements, not replaces, critical on‑label information).

Battery, enclosure and area warning labels for off‑grid electrical systems

Group battery and area warnings at entries and vents to highlight chemical, heat, off‑gassing and energy hazards around storage locations.

• Area identification: battery room/cabinet with restricted access wording.
• Specific cautions: charging area hazard, heavy lift points, no ignition sources in the vicinity of vents.
• Service notes: isolate and wait a safe interval before opening (device‑dependent), follow PPE and handling procedures.

Where the plant is part of a workplace, safety‑sign categories and colours should align with AS 1319 conventions so staff recognise the format instantly across sites.

Match battery warnings to the installed chemistry. Wording and symbols for flooded lead‑acid won’t be right for lithium systems. Use the project documentation to drive exact phrases and pictograms.

Materials and production methods for durable labels on off‑grid electrical systems

Remote and off‑grid locations can be harsh: high UV, heat, dust, vibration, cleaning regimes and, in coastal areas, salt exposure. Choosing the right label construction matters as much as the words printed on it.

Engraved laminates and phenolic for off‑grid electrical labels

Multi‑layer engraving laminates and phenolic sheets produce permanent, high‑contrast text by removing the cap to reveal a contrasting core. They are widely used for switchboard labels, equipment tags and control legends where long service life is needed. Laser engraving creates crisp detail and repeatability from digital artwork and variable data.

• Typical thickness: 0.8 mm for small tags and markers; 1.5–1.6 mm for plates on boards and isolators.
• Colour pairs commonly used for IDs and legends: white/black, yellow/black, black/white. Select outdoor‑rated, UV‑stable grades for sun‑exposed locations.
• Fixing: 316 stainless screws/rivets outdoors; nylon fixings are useful near corrosive atmospheres inside battery enclosures.

Printed vinyl decals and overlaminates for off‑grid labels

Printed self‑adhesive vinyl offers design flexibility, full‑colour graphics and custom shapes through contour cutting. Protective laminates can improve abrasion and cleaning resistance. Reflective or specialty films can be used where visibility is important, provided the total construction suits the environment and substrate.

• Film choice: cast films with matched cast overlaminate handle heat, curves and UV better than economy calendered films outdoors.
• Reflective options: choose an outdoor‑rated reflective where night visibility helps responders; ensure good edge sealing on metalwork in washdown/coastal areas.
• Face renewal: where legends may change, apply a replaceable face decal to a rigid plate so you can re‑face without drilling again.

Reverse‑printed clear acrylic for durable instruction panels

For panels that need a premium, cleanable face, reverse printing onto clear acrylic protects the image behind the material surface. This is useful for equipment schematics, operating instructions or long‑term panel fascias mounted in protected locations.

• Panel thickness: 3 mm is a common balance of rigidity and weight for small instruction panels.
• Mounting: standoff spacers reduce panel warping in hot rooms; avoid solvent cleaners on edges.

Technical labelling requirements for off‑grid electrical systems (AU)

While each project’s documentation governs the exact wording, two practical points commonly inform off‑grid labelling schemes in Australia:

• Use recognised AS 1319 safety‑sign conventions in workplaces so prohibition, mandatory, warning, danger and emergency information are presented consistently.
• Follow the project drawings, equipment schedules, client specifications and any electrical requirements supplied for the job when preparing equipment identification and legends.

Project documents may also cite AS/NZS 3000 (Wiring Rules) and, for battery energy storage systems, AS/NZS 5139. Where those apply, carry the exact clause wording and symbol requirements through to the label artwork.

Practical design notes applied in production:

• Text size: base letter and symbol sizes on viewing distance, the amount of information and the environment so messages remain legible.
• Contrast: use strong contrast between legend and background; avoid low‑contrast brand colours where a safety meaning could be reduced.
• Materials: select engraving laminates, acrylic panels or printed films to suit indoor/outdoor exposure, heat, cleaning and chemicals.
• Corners and edges: rounded corners and deburred edges help reduce peel and sharp edges on plates and decals.
• Temperature and adhesion: match films and adhesives to the expected temperature range and substrate; pre‑test unfamiliar combinations.

How Sign Portal produces off‑grid electrical labels

Sign Portal manufactures electrical and industrial labels in‑house in Brisbane using laser engraving, UV flatbed printing, wide‑format printing and digital cutting. Plates, tags and decals can be produced in the same workflow and packed together for site delivery.

• Laser engraving and cutting: precise tags, plates and aperture cut‑outs from engraving laminate or acrylic.
• UV flatbed printing: direct print to suitable rigid substrates where a single, robust plate is preferred.
• Wide‑format print and contour cut: full‑colour decals, symbols and QR codes cut to shape.
• Protective lamination: abrasion and handling protection matched to the chosen film system.
• Short‑run efficiency: one‑offs and matched sets produced from approved artwork and data schedules.

Production detail and QA that matter on site:

• Variable‑data merge: we import your CSV/XLS schedules into our templates so cabinet IDs, circuit numbers and legends are consistent across the pack.
• Precision finishing: digital cutting and rounded corners help accuracy and reduce edge lift and sharpness.
• Adhesive selection: adhesives are matched to surfaces such as powdercoat or low‑surface‑energy plastics; mechanical fixings are preferred for larger plates, rough surfaces or high‑heat/coastal areas.
• Pack‑by‑panel: we can bag sets by switchboard or room to speed installation and reduce on‑site sorting time.
• Documentation: packing paperwork references the approved proof and label schedule so future replacements match.

Installation and durability of off‑grid electrical system labels in Australian conditions

Mounting must suit the substrate and environment. Self‑adhesive installation works well on clean, smooth, dry surfaces compatible with the adhesive. Mechanical fixing is preferred for larger plates, rough surfaces, high‑heat areas or where long‑term security is required.

• Adhesive mounting: ensure the surface is free of dust, oil and moisture; avoid assuming one adhesive suits every plastic or powdercoat.
• Mechanical fixing: use compatible screws, bolts or rivets and avoid creating sharp edges or galvanic corrosion with mixed metals.
• Coastal and tropical sites: expect more aggressive UV and salt exposure; select materials and fixings accordingly and increase inspection frequency.

Surface prep matters. Degrease with isopropyl alcohol, let the solvent flash off, then apply firm, even pressure across the decal. Aim for installation temperatures in the mid‑teens to mid‑twenties °C and give pressure‑sensitives time to build bond before a washdown or weather exposure.

Cleaning methods should be compatible with the label construction. Abrasive pads, aggressive solvents and high‑pressure cleaning can damage edges or graphics, particularly on film‑based labels. Where vandalism is a risk, an anti‑graffiti laminate can make some contaminants easier to remove, subject to product limits.

Repair, replacement and change control for off‑grid electrical system labels

Labels work hardest during repairs. Plan for maintenance from day one:

• Keep spare labels for critical IDs (inverter, isolators, combiner, battery strings) so damaged items can be replaced promptly.
• Temporary LOTO: keep durable “Do Not Operate” tags and cable markers in the site kit to support lock‑out/tag‑out during breakdowns.
• After‑repair verification: confirm polarity labels, direction‑of‑rotation arrows and rating plates still reflect the as‑repaired state before re‑energising.
• QR refresh: if your labels reference online drawings, update the linked single‑line diagram revision as part of the repair close‑out.
• Re‑application: clean surfaces before re‑applying adhesive labels and use mechanical fixings if the surface or environment is unsuitable for an adhesive‑only solution.

Artwork, proofing and ordering workflow for off‑grid electrical system labels

Supply clear artwork and data so labels can be produced consistently across the system. Production‑ready files typically include vector paths for cut shapes and adequate bleed. If decals are contour‑cut, include a clean vector cut path and simplify very small internal details to improve cutting and weeding reliability.

• Artwork proofing: you’ll receive a proof to confirm wording, colours, sizes, quantities and layout before manufacture.
• Schedules: provide equipment IDs, panel names, cable tags and quantities in a spreadsheet for variable‑data production.
• Prototyping: for new material combinations or complex layouts, a prototype can confirm legibility, scale and fixing details before rolling out a full set.
• Typography: use a clear, non‑condensed sans‑serif for legibility on small plates; avoid mixing fonts across a site.

Approval confirms the production details but is not a substitute for independent compliance checks where a regulated label is required. Verify mandatory symbols, wording and site‑specific requirements against your project documentation.

When to use custom versus standard label formats for off‑grid electrical systems

Use standardised layouts where your organisation already has an approved scheme for switchboards, isolators or cable IDs. Custom labels are appropriate for site‑specific equipment names, instructions, QR references or when a catalogue label does not reflect the actual hazard or operating step. Keep wording concise and avoid over‑signage so critical messages remain visible.

Don’t redraw safety pictograms from memory. Use the recognised artwork from your standard library so symbols look the same across every site.

Case study — Off‑grid electrical system labels: remote microgrid, Central QLD

A remote agricultural customer operated a 48 V standalone PV‑battery system with generator backup across multiple sheds and a plant room. Repeated night‑time call‑outs and inconsistent field repairs had left the system with mixed labelling.

• Scope: relabelling of DC combiner, battery strings, inverter/charger, changeover switch, distribution boards and external isolators; addition of hazard, mandatory PPE and emergency notices using AS 1319 conventions.
• Deliverables: engraved laminate plates for switchgear and IDs; contour‑cut decals for curved enclosures; reverse‑printed acrylic fascia for operating instructions; QR labels linking to the latest single‑line diagram stored in the customer’s document portal.
• Packaging: sets bagged and labelled per room/switchboard; install map included in the carton.

The intent was to make isolators and cable runs unambiguous and to support quicker fault‑finding in low‑light call‑outs.

Off‑grid electrical system labelling checklist before sign‑off

• Every isolator, switch and enclosure is identified and its function is clear.
• Hazards are communicated using consistent, recognised categories and symbols.
• Ratings, polarity and connection IDs are present where a technician will need them.
• Materials match the environment (UV, heat, cleaning, coastal exposure).
• Fixing method suits the surface and expected service life.
• Artwork and data have been proofed carefully; quantities and sizes match the schedule.
• Inspection and replacement are built into the site maintenance plan.

Technical specification, testing and compliance at Sign Portal for off‑grid electrical labels

We treat electrical labels as important identification and safety components. Our in‑house printing, cutting, engraving and fabrication allow coordinated production and inspection steps.

• Processes we use: laser engraving and cutting for plates and tags; UV flatbed printing for suitable rigid panels; wide‑format printing and digital contour cutting for decals; protective lamination where appropriate.
• Materials we work with: engraving laminates, acrylic and compatible self‑adhesive films selected for the installation environment.
• Quality focus: keeping key processes in‑house supports inspection between stages as part of our manufacturing quality control.

Verification (available on request):

• Where required, we can perform adhesion and durability checks on representative label constructions, and sample‑test unfamiliar substrates before volume production.
• Outdoor durability depends on the complete sign construction and exposure. Material selection follows manufacturer guidance for the intended environment.

Compliance support:

• Proofing confirms wording, sizes and layout against your approved schedule. Where AS 1319 sign categories are relevant, the recognised formats are used. Approval is not a substitute for independent compliance review.
• Documentation: product information and basic installation guidance can be supplied for O&M manuals.
• Colour: colour matching is influenced by substrate, ink set and lighting; critical corporate colours can be confirmed with printed samples where needed.

Adhesive selection by substrate for off‑grid electrical labels

Correct adhesive pairing is critical to long service life, especially on remote assets where recalls are costly. General guidance:

• Textured powdercoat: consider mechanical fixings or suitable foam/acrylic adhesives; thin transfer tapes may struggle on texture.
• Low‑surface‑energy plastics (such as PP/PE): use adhesives formulated for LSE surfaces and prepare the surface carefully.
• Stainless/aluminium: degrease thoroughly before application; edge‑sealing may help in washdown or coastal zones.
• Fibreglass (GRP) and composites: choose compatible films and pre‑test where styrene migration or chalking is a concern.
• Painted masonry or blockwork: avoid relying on decals alone; fix a rigid plate mechanically to a smooth backer.
• High‑heat areas: prefer mechanically fixed engraved plates; many adhesives soften and creep when enclosures run hot.

Rapid repair and replacement program for off‑grid electrical system labels

When a label is damaged during a breakdown, speed matters. We keep approved artwork and data under a client code to support consistent replacements.

• Artwork retention: approved files and schedules are stored so reprints match installed labels.
• Turnarounds and freight: production and national despatch are arranged to suit project needs; confirm availability and lead times when ordering.
• Kitting: replacements can be packed and labelled by board/room to simplify installation.
• QR stewardship: if QR labels are used, ensure target links remain valid when documents move.
• Revision control: print the label set revision/date on the pack slip and, where space allows, on the legend plate.

Case study — Off‑grid electrical labels: comms power hut, Pilbara WA

A maintenance contractor for a remote communications hut reported recurring outages traced to misidentified DC strings and an unlabelled generator changeover at the site entry.

• Scope: audit and re‑label DC battery banks, PV combiner, ATS, inverter rack and outdoor isolators; add LOTO tags and emergency instructions using AS 1319 conventions.
• Build: engraved plates for textured powdercoat enclosures; durable decals with suitable overlaminates for outdoor isolators; colour‑coded markers on cabling.
• Process: legends data‑merged from the client XLS single‑line; kit bagged by elevation with an install map in the carton.

The goal was clearer identification at entry points and consistent cable marking across the hut.
