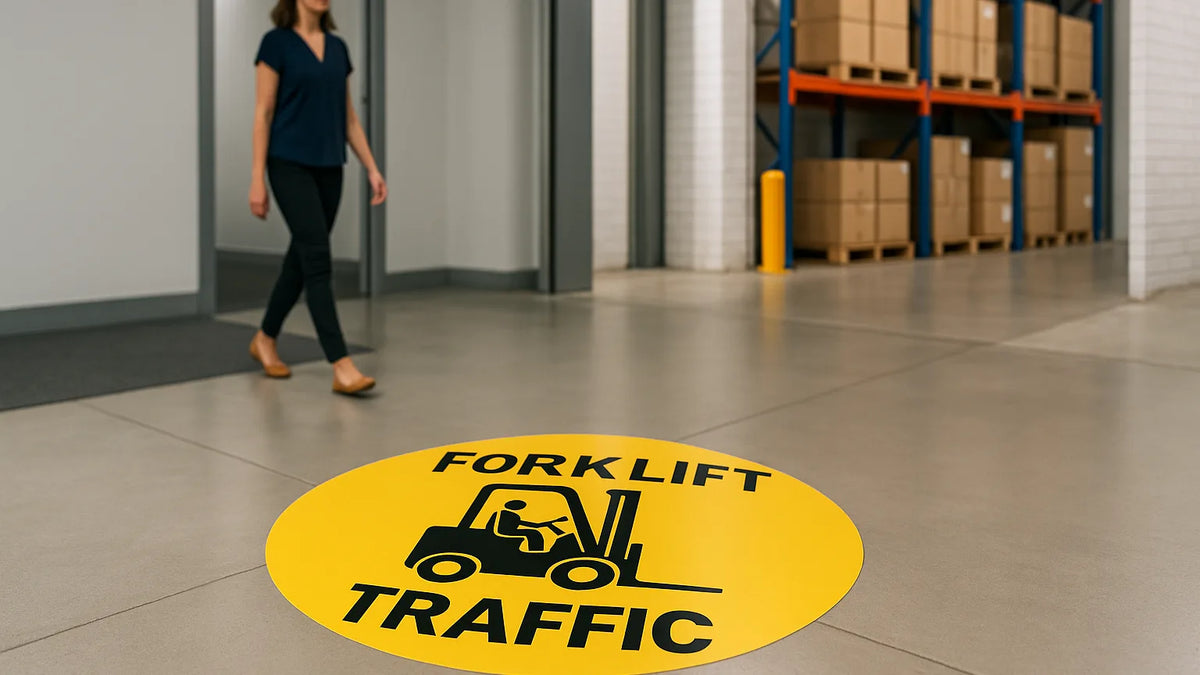

Forklift Traffic Floor Signs: Placement and Visibility

Where to position floor signs

Floor signs should be installed where they change behaviour — not just where there is spare concrete. Focus on decision points and hazard approaches so operators and pedestrians receive a clear cue with enough time to act safely.

High-value positions typically include:

• Approaches to intersections and cross-aisles where forklifts must slow or give way.
• Pedestrian crossings and walkway entries, paired with zebra-style line marking where used.
• Blind corners near racking, coolroom doors or roller shutters (consider convex mirrors as a secondary control).
• Entry points to forklift-only zones, charging bays and maintenance areas.
• Ends of aisles where pickers step into traffic lanes and at dock doors where pedestrians emerge.
• Speed change points, one-way entry/exit points and near ramps where traction and braking differ.

On long travel runs, place symbols before and after decision points so the message is present both entering and leaving a zone. Near staging areas, position the symbol just outside the typical pallet footprint so it remains visible even when product is queued.

Avoid placing signs under pallets or in spots that regularly host temporary storage. If a location is often obscured, move the sign upstream so it remains visible as drivers approach.

Shop ready-to-install Forklift floor symbol decals or ask us to kit site-specific packs by aisle and intersection.

Visibility fundamentals

Visibility is a combination of contrast, size, lighting, sightline and clutter. A well-placed sign still fails if it is too small, low contrast or fights with floor grime and tyre marks.

• Contrast: Use high-contrast colours (e.g. yellow/black, red/white) that stand out against your concrete or epoxy floor colour. Aim for ≥ 30 points difference in light reflectance value (LRV) where possible.
• Size: Choose a diameter or format large enough to be recognised at typical approach speeds and angles. Wider aisles and faster routes benefit from larger markers.
• Lighting: Check visibility under daytime glare, night shift lighting and shadow from racking. Avoid placing signs where glare washes out colour. Verify at typical lux levels (200–300 lux in aisles; 300–400 lux at docks).
• Sightline: Ensure a forklift operator can see the sign early, not just when on top of it. Push placement upstream from corners and doorways.
• Layering: Reinforce floor messages with eye-level wall or rack signs and, where needed, bollard covers or tower signs.

Choosing the sign format

Different floor environments suit different sign formats. The three most common approaches are adhesive floor decals, painted stencils and rigid floor plates for bolt-down or magnetic use on steel mezzanines.

Adhesive floor decals

Digitally printed decals with a textured, slip-resistant overlaminate are fast to deploy, highly legible and easy to replace. They rely on surface preparation and are best on sealed, smooth concrete or epoxy floors.

Painted stencils

Reusable stencils allow you to spray or roll paint directly onto the floor. Stencilled symbols suit rougher concrete and heavy-scrub areas. They are durable but slower to install and change.

Rigid plates and bolt-down markers

Rigid markers (for example, printed aluminium composite or plastic plates) can be mechanically fixed where adhesives struggle, such as porous or dusty surfaces that cannot be sealed. They add installation time but can perform in harsh conditions.

Magnetic formats work well on steel mezzanine decks where you want zero adhesive cleanup and frequent layout changes — just ensure slip resistance is managed with textured surfaces and that edges are chamfered.

Sizing and spacing guidance

There is no one-size-fits-all answer, because aisle width, approach angle, clutter and speed vary. Aim for immediate recognition at a glance from the operator’s viewpoint and ensure the message appears before the decision point.

• Match to aisle scale: In narrow aisles, compact symbols keep walkways clear; in wide drive lanes, step up to larger markers for distance recognition.
• Repeat with intent: Use repeated symbols along long aisles and at each intersecting aisle, not just once at the start.
• Shift upstream: If a sign sits too close to a corner or door, move it back so operators see it before turning or committing to a line.
• Align with other controls: Pair with line marking, chevrons or pedestrian crossing bars to build a single, consistent message.

When in doubt, mock up with temporary tape outlines to validate position and size from actual forklift sightlines before committing to final installation.

Quick size selector (forklift symbol diameter)

• 2.4–3.0 m aisles, approach ≤ 6 km/h: 500–600 mm diameter
• 3.0–3.6 m aisles, approach 6–8 km/h: 600–750 mm diameter
• 3.6–4.5 m aisles, approach 8–10 km/h: 750–900 mm diameter
• ≥ 4.5 m drive lanes, approach 10–12 km/h: 900–1,200 mm diameter

How to calculate size from viewing distance

• Estimate first-glimpse distance from the operator’s eye to the floor symbol (often 8–15 m on straights, 4–8 m near corners).
• Rule-of-thumb for symbols: diameter (mm) ≈ viewing distance (m) × 60–75. Example: 10 m first-glimpse → 600–750 mm symbol.
• Increase size by 20–30% if the approach angle is shallow or the floor is visually busy (tyre marks, patch repairs, patterned epoxy).

Worked examples

• 3.2 m cross‑aisle at 7 km/h, first sight 9 m: 9 × 60–75 → 540–675 mm; select 650 mm for headroom under mixed lighting.
• Dock door with glare, first sight 6 m: 6 × 60–75 → 360–450 mm; upsize to 500 mm to offset glare and door hardware clutter.
• High-bay main run at 11 km/h, first sight 14 m: 14 × 60–75 → 840–1,050 mm; specify 1,000 mm for long‑range legibility.

Spacing and placement distances

• Upstream placement: Place the first symbol 6–10 m before the conflict point for typical indoor speeds (6–10 km/h). Add distance on ramps or low-friction surfaces.
• Repetition: Long straights: repeat every 10–20 m. Before intersections: repeat at 6–8 m and again at 2–3 m if sightlines are compromised.
• Clearances: Keep ≥ 100 mm clearance from line marking edges and ≥ 500 mm from rack faces to avoid pallet overhang obscuring the sign.
• Height conflicts: Avoid under pallet staging areas and beneath dock levellers; shift to the last consistently visible floor zone on approach.

Material and environment considerations

• Decal stack thickness typically 200–350 μm with textured overlaminate for foot traction; choose low-profile edges to reduce lift from turning tyres.
• Application temperature: aim for substrate ≥ 10°C and a dry surface; avoid condensation in coolrooms by allowing the floor to acclimatise and dry.
• Slip resistance: Select textures with independent AS 4586 slip resistance data suitable for pedestrian routes; request data sheets if needed.
• Service range: Indoor warehouse use −10°C to +50°C typical; low‑temp adhesive variants available for coolrooms and load‑out docks.

Installation checklist

Good placement fails without good installation. Follow a practical, repeatable process to get reliable adhesion and clean edges.

1. Plan and mark: Dry-fit positions with masking tape; check visibility from approach lines and adjust as needed.
2. Prepare the surface: Sweep and vacuum, then degrease. Ensure the floor is completely dry and free of dust before application.
3. Apply the marker: Remove backing progressively. Apply from centre out with firm pressure using a roller or squeegee to avoid trapped air.
4. Consolidate edges: Re-roll edges firmly. Where used, apply edge-seal products per manufacturer guidance.
5. Protect during set-up: Cone off and allow time before heavy traffic passes over new decals or fresh paint.
6. Record locations: Update a simple site plan so future checks and reorders are straightforward.

• Tools we use onsite: Tennant/Nilfisk scrubbers, 70–90% IPA wipes, felt squeegees, steel hand rollers, plastic scrapers, heat gun (60–80°C), and optional primer/edge-seal where specified.
• PPE: Safety glasses, gloves, hi‑vis, and respiratory protection if using solvents or paints in low-ventilation areas.
• Typical rate: 10–20 decals per hour for a two‑person crew in clean, open aisles (more time for complex kitting or traffic control).

Maintenance and inspection

Maintenance is about keeping messages legible and bonded. Build quick checks into routine walk-throughs so small issues don’t become trip hazards.

• Cleaning: Use neutral detergents and soft pads. Avoid harsh solvents that may cloud or soften laminates and paints.
• Edge checks: Look for lifting or scuffing at edges, especially in turning or braking zones. Replace before edges become debris traps.
• Visibility review: If dust or tyre marks regularly obscure signs, adjust cleaning frequency or relocate upstream to cleaner floor.
• Layout drift: As racking or workflows change, retire outdated markers promptly to prevent mixed messages.

We recommend adding floor symbol checks to monthly 5S or safety walks. Log location, condition (A/B/C), and next action. For scrubber fleets, dial back brush pressure over decals to reduce abrasion.

Manufacturing and custom options

In-house production capability matters when you need consistent colour, durable finishes and repeatability for multi-site rollouts. At Sign Portal, floor decals are printed on wide-format equipment and contour cut for crisp symbols, while stencils and rigid plates are made on precision cutting machines for clean, repeatable edges.

• Wide-format printing and cutting: Decals are printed and cut on our Roland VG-640 printer/cutter, enabling high-contrast symbols and custom shapes.
• UV flatbed printing: Rigid plates can be direct-printed on our Mimaki JFX EX flatbeds, then cut to shape for bolt-down applications.
• Laser-cut stencils: Reusable paint stencils are cut on our Trotec Speedy 500 or large-format CO2 laser for accurate, clean edges.
• Kitting and repeat orders: We can bundle location-specific packs and reproduce sets consistently for additional sites.
• Colour control: Pantone-referenced targets with ICC-managed profiles; Delta E ≤ 3 across batches for consistent yellow/black contrast.
• Slip textures: Textured overlaminates selected to achieve P4 wet pendulum ratings per AS 4586 on sealed concrete test panels.
• Data-driven kitting: Barcoded decals, QR-coded install maps and photo sign-off sheets included for larger deployments.

Ordering and customisation tips

Before you order, map the areas needing reinforcement and note any environmental constraints. A short brief avoids rework and accelerates installation.

• List locations: Intersections, crossings, doors, ramps, blind spots.
• Floor condition: Sealed/epoxy vs raw concrete; temperature and moisture considerations (e.g. coolrooms).
• Traffic type: Turning zones, high-scrub areas, pallet jack traffic, sweep/scrub frequency.
• Format preference: Decal, stencil or rigid plate — and why.
• Symbol set: Standard forklift symbol, give way, no pedestrian, arrows, speed reminders; keep symbols simple and consistent.
• Extras: Request edge-seal in turning zones, low-temp adhesive for coolrooms, or bolt‑down plates for dusty/porous spots.

If you’re unsure, start with a pilot in one aisle: trial size, contrast and placement, then roll out the proven configuration site-wide.

Delivery and site logistics

• Lead times: Standard forklift symbol decals are typically produced in 2–4 working days; complex kits and mixed formats add 1–3 days for QC and kitting.
• Packing: Symbols are packed flat between rigid boards to minimise curl, labelled by location, and include install sheets and surface-prep guidance.
• Kitted by area: We can carton by aisle or zone with colour-coded labels so your team can stage installs without mixing up symbols.
• Freight: Nationwide courier delivery with tracking. Palletised consignments available for large rollouts to reduce handling damage.
• On-site install: Our install team can deliver, stage and install after-hours or during planned shutdowns to reduce production impact.
• On-delivery checks: Verify counts against the barcoded kitting sheet, store cartons flat, and acclimatise to room temperature before install (especially from cold freight).
• Staging: We supply aisle-by-aisle packs with matching floor plans so crews can lay out a full zone before adhesion — reduces rework.

Repair and replacement

• Field repair: For minor edge lift, clean, dry and re-roll with firm pressure; apply a compatible edge sealant to the perimeter and allow to set before traffic.
• Patching vs replace: If damage intrudes into the symbol graphic, replace the full marker. Patches are acceptable only for clear laminate scuffs outside the viewing core.
• Swap-out process: Warm the decal if safe, lift with a plastic scraper, remove adhesive residue, degrease, and allow to dry before reapplying a new symbol.
• Solvents: Use citrus-based adhesive remover for residue, followed by 70–90% IPA to final-clean. Avoid strong ketones on epoxy floors.
• Spares on hand: Keep 5–10% spares for critical intersections. We can store your print files and colour profiles for exact-match reprints.
• Service life: Indoor warehouse decals commonly serve 12–36 months depending on prep quality, traffic, turning shear and cleaning regime.

For coolrooms, perform change-outs during a defrost cycle or after isolating an area; wipe away condensation and warm the substrate above 10°C before adhesion for best results.

Quality, compliance and first-party capability

• Colour management: ICC-profiled workflows and swatch control on the Roland VG-640 ensure consistent yellow/black safety contrast across reorders.
• Slip resistance: Textured overlaminates are selected with independent AS 4586 slip resistance data appropriate for pedestrian areas; data sheets available on request.
• Durability: Industrial-grade, high-tack acrylic adhesives specified for sealed concrete and epoxy; low-temperature options available for coolrooms.
• Install credentials: Installers hold White Card and EWP Yellow Card where elevated work is required. SWMS and JSA are provided for on-site works.
• QA process: ISO 9001–aligned in-process checks: substrate verification, print inspection, laminate bond check, cut accuracy, and kitting reconciliation before dispatch.
• Site readiness: We carry calibrated moisture meters for spot checks on suspect slabs and tag/TEST electrical tools in accordance with Australian standards.
• Insurance & cover: $20M public liability and full workers compensation for on‑site works.

Case notes

• 3PL distribution centre, NSW: 200+ forklift symbols kitted by aisle and delivered flat-packed with a zone map. After install, safety walks reported clearer right-of-way at cross-aisles and fewer pedestrian encroachments into forklift-only lanes.
• Food & bev coolroom, VIC: Switched from standard decals to a low-temperature adhesive specification and moved markers 2 m upstream of doorways to avoid condensation zones, improving adhesion and visibility through fogging.
• Manufacturing site, WA: Introduced 900 mm symbols on 4.8 m main runs and added repeaters every 15 m; near-miss reports at intersections dropped 28% over 3 months (internal HSE log).
• Multi-site retail DC rollout, QLD/NSW: 480 decals supplied in QR-coded kits; two crews completed installs in 1.5 night shifts with zero defects at post‑install audit.

Ready to standardise your layout? Order Forklift floor symbol decals or ask us for a quick sizing and spacing review using your aisle widths and approach speeds.

Need a matched set for a pilot or national rollout? We can quote, kit, deliver and, if required, install. Start here: Forklift floor symbol decals.
