Pedestrian Walkway Floor Markings for Warehouses

What pedestrian walkway floor markings achieve in warehouses

Pedestrian walkway floor markings for warehouses serve three primary functions: physically separating foot and vehicle routes, communicating direction of travel and highlighting crossing points at driveways or aisles. When markings are consistent and visible, warehouse users make safer decisions faster.

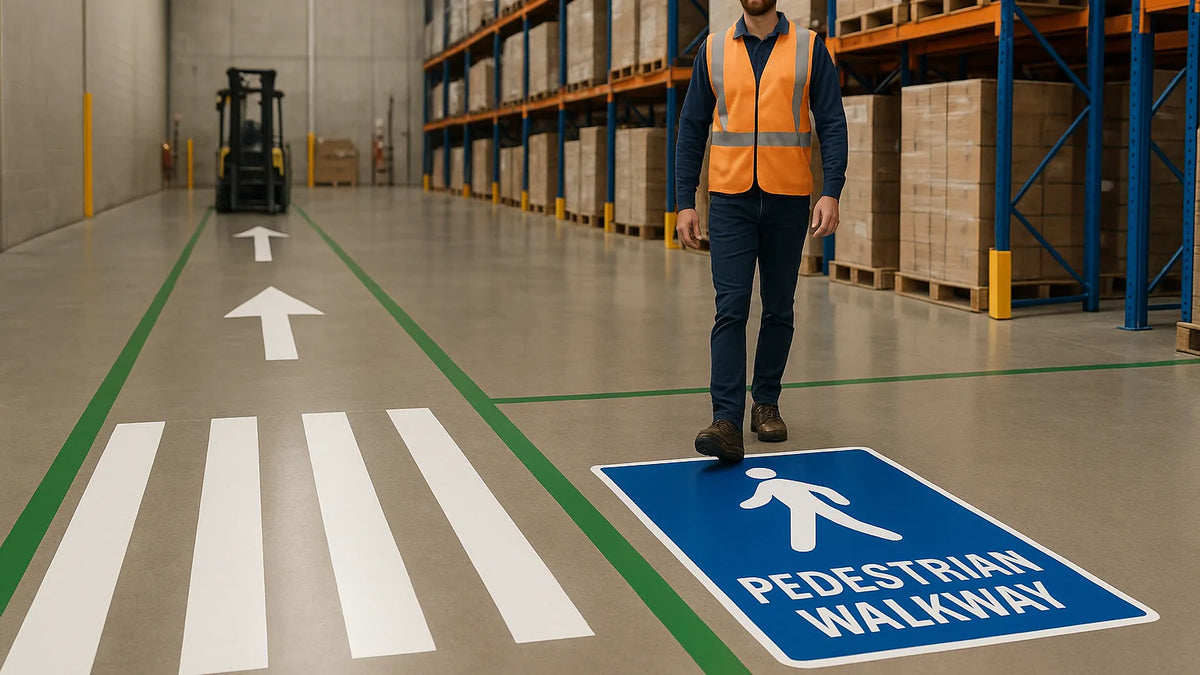

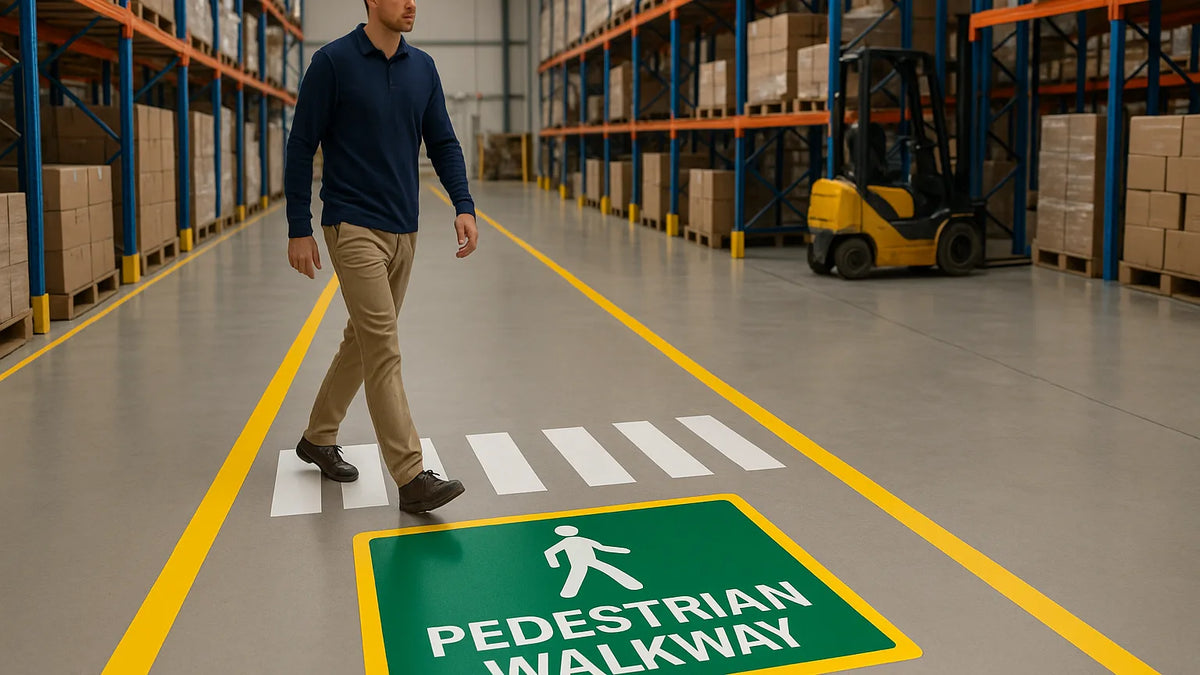

A typical scheme includes continuous lines for safe routes, zebra‑style crossings at intersecting forklift aisles, arrows for direction and symbols that reinforce site rules such as keep left or no entry. Colour and pattern consistency across the facility improves recognition and reduces training time. In Australian warehouses, aligning markings with the site’s traffic management plan and induction material supports WHS obligations and reduces cognitive load for new starters and contractors. This aligns with Safe Work Australia guidance on workplace traffic management, where predictable, legible routes reduce interaction risk.

Where sightlines are limited at cross‑aisles, set crossings back from racking ends so pedestrians and MHE can see each other sooner. In practice, moving a zebra one to two pallet lengths away from a blind rack end often reduces conflict without slowing the aisle unnecessarily.

Ready to specify? Order production‑ready kits direct—Custom Floor Graphics and Floor Stencils. Our team can assist with layout mark‑ups and zone labelling.

Common types of pedestrian walkway floor markings for warehouses

Adhesive floor marking tape for warehouse walkways

Floor marking tape is a fast, economical way to lay straight lines, corners and chevrons without curing time. It suits smooth, sealed concrete and can be lifted and replaced with minimal disruption when layouts change.

• Best for: long straight walkways, colour-coded lanes, temporary layouts.
• Strengths: quick to apply, minimal downtime, easy to revise.
• Considerations: edge scuffing in heavy forklift turn zones; choose a durable grade and ensure proper surface prep.

Technical notes from our installers: heavy‑duty tapes in the 0.8–1.2 mm range with a tough shore hardness withstand turning pressure better than economy 0.5–0.7 mm films. Apply at slab temperatures above 10°C and avoid spanning saw cuts or expansion joints to reduce lift.

Where edges are exposed to frequent tyre scrub, bevelled‑edge or chamfered tapes reduce catch points. Mitre outside corners instead of overlapping to avoid a raised lip in the traffic path.

Printed floor decals and symbols for warehouse walkways

Printed floor graphics create high‑visibility arrows, zebras and safety symbols with strong colour contrast and pictograms. When overlaminated with a textured, anti‑slip film, they withstand foot traffic and trolley wheels and clean up well.

• Best for: crossings, arrows, footprint trails, text‑free symbols and colour‑rich zones.
• Strengths: custom shapes, branding colours, crisp icons, rapid production.
• Considerations: adhesion depends on surface; avoid highly porous or dusty floors without sealing and priming.

Sign Portal’s standard printable vinyls are 80–100 µm polymeric films paired with a 125–150 µm textured, indoor floor overlaminate. This system has been independently tested to AS 4586 for slip resistance, with achievable ratings typically in the R10–R12 range depending on the laminate specified. Certificates of conformity are available on request.

For chillers and receiving docks, specify a high‑tack or low‑temperature‑rated adhesive and round external corners (6–10 mm radius) to reduce edge lift from scrubbing and cleaning.

Painted lines using stencils for warehouse walkways

Painted systems are robust for high‑traffic lanes and areas exposed to pallet drag. Laser‑cut stencils deliver sharp edges for arrows, lettering and zebra bars. While application takes longer due to curing, the finish can be very durable on prepared concrete.

• Best for: permanent routes, heavy abrasion zones, intersections that see frequent forklift turns.
• Strengths: excellent edge durability when properly prepared and coated.
• Considerations: surface preparation, masking and curing time extend downtime; layout changes require overcoating and repainting.

For long‑life painted systems our clients commonly specify 2‑pack epoxy or polyaspartic floor coatings over profiled (etched/abraded) concrete. Re‑usable stencil sets in 1.5–2.0 mm polypropylene or PETG maintain consistent zebra spacing and icon geometry across the facility.

Where wet cleaning is routine, broadcast a fine anti‑slip aggregate into the final coat (or use a premixed anti‑slip variant) to achieve the target slip rating noted in your risk assessment.

Materials and finishes for pedestrian walkway floor markings in warehouses (what to specify)

For adhesive graphics, self‑adhesive vinyl paired with a textured overlaminate is the most common combination. The overlaminate protects print from scuffing and provides a micro‑texture to help with wet cleaning and foot traction. A polymeric or cast‑grade base film is typically preferred over basic monomeric films for better dimensional stability on floors.

Marking tapes come in various thicknesses and hardness levels. Thicker, tougher formulations resist edge wear in forklift lanes but may require more care to bond around tight corners. Where chemical cleaning is frequent, select materials compatible with the detergents and degreasers used on site.

For paint‑and‑stencil solutions, durable floor coatings are applied over clean, etched or primed concrete. Stencils can be re‑used for future maintenance rounds, keeping symbols and zebra spacing consistent across the site. For rapid turnarounds in cool conditions, polyaspartic systems can offer shorter return‑to‑service times than epoxies—verify with the paint manufacturer’s data sheet.

Consider the existing floor finish. Densified/silicate‑treated concrete, polished slabs and old acrylic sealers can all affect adhesion and cure. When in doubt, confirm compatibility with the coating or film supplier and specify primers or adhesion promoters where needed.

How to choose pedestrian walkway floor markings for warehouses: tape vs decals vs paint

Your choice depends on traffic levels, floor condition, budget and how often the layout might change. The matrix below compares two of the most common approaches used for pedestrian walkway floor markings in warehouses; paint is typically selected for permanent, high‑abrasion zones and tight turn areas.

Design and artwork for pedestrian walkway floor markings

Consistent iconography and spacing help users interpret markings quickly. Use vector artwork for arrows, footprints and symbols so edges cut cleanly and scale is precise. High‑contrast colour pairings improve visibility under mixed lighting and after minor soiling.

• Arrows and routes: plan logical routes with clear entry and exit points; avoid ambiguous splits.
• Zebra crossings: keep bars evenly spaced and aligned perpendicular to traffic lanes.
• Symbols: prefer internationally recognisable pictograms to minimise language dependence.
• Size: check viewing distances; larger arrows aid recognition in tall aisles with high bay racking.

On pale epoxy floors, add a narrow high‑contrast keyline (for example, 15–25 mm white either side of a green walk lane) so borders remain legible after light soiling.

Typical dimension guidelines for warehouse pedestrian walkways

• Walkway width: 1,000–1,200 mm for single‑direction foot traffic; 1,500–1,800 mm where two‑way passing is expected.
• Line width: 75–100 mm continuous borders for walkways; maintain 50–100 mm clearance to racking legs and bollards.
• Zebra bars: 300–600 mm bar width with equal gap spacing; extend crossing 200–300 mm beyond the nominal walkway edge for visibility.
• Arrow size: 600–1,000 mm length depending on aisle height; orient arrows away from intersections to reduce hesitation.
• Approach markings: add an advance “decision arrow” 5–7 m before each crossing in high‑speed MHE lanes.

Where appropriate, we radius external decal corners during pre‑press to reduce edge lift in cleaning zones and at trolley impact points.

Installation methods for pedestrian walkway floor markings in warehouses

Install adhesive floor decals for warehouse walkways

1. Surface prep: machine scrub or degrease; rinse and let the slab fully dry.
2. Positioning: dry‑fit and mark alignment with removable tape or chalk lines.
3. Application: use a hinge method; remove backing progressively and squeegee from centre out.
4. Edge seal: firmly re‑burnish edges; avoid traffic for the recommended dwell time where possible.
5. Check: walk the route, confirming there are no raised edges or bubbles.

Installer notes: use an adhesion promoter (e.g. edge priming) on porous patches and around high‑scrub corners. Ideal application conditions are 15–25°C and RH < 70%. Allow 24–48 hours before aggressive wet cleaning.

In cold or damp conditions, a light post‑warm with a heat gun (not exceeding the laminate’s rating) can help set edges after burnishing. Vacuum dust from saw cuts and expansion joints adjacent to the install—fine dust migrates under edges and causes lift.

Install floor marking tape for warehouse walkways

1. Snap lines: mark straight runs with a chalk line; confirm widths at doorways and pinch points.
2. Apply: unroll under steady tension; press firmly with a roller, paying attention to corners.
3. Protect: avoid sharp forklift turns directly across fresh edges where feasible.

For neat corners, mitre at 45° or use pre‑cut corners from the same material to keep thickness consistent through the turn.

Install paint and stencil walkways

1. Prepare: clean, abrade or prime as per paint system guidance.
2. Mask: tape the stencil securely, ensuring no lift at edges.
3. Apply: light, multiple coats for crisp edges; remove stencil while tacky to reduce lift.
4. Cure: allow full cure before traffic; barricade crossing points to prevent tracking.

Always test adhesion on a small, inconspicuous area first — especially on freshly sealed, highly polished or porous concrete. Avoid spanning expansion joints with adhesive graphics.

Maintenance and inspection of pedestrian walkway floor markings for warehouses

Routine cleaning and quick attention to damage extends service life and reduces trip risk. Choose non‑aggressive detergents compatible with your floor system, avoid excessively hot water on fresh installations and use soft pads around edges to prevent lift.

• Weekly: visual check for lifted edges, scuffs and soiling.
• Monthly: re‑burnish edges on decals if required; replace short tape sections showing lift.
• As needed: recoat painted lines where traffic has burnished the surface.

Cleaning gear tips from our field team: neutral detergents and auto‑scrubbers (e.g. Tennant/Kärcher) with red/white pads minimise abrasion; avoid black stripping pads and aggressive degreasers at edges. Keep broom bristles and squeegee rubbers in good condition to reduce catching.

Set up a simple inspection register by zone with photos. Small, prompt replacements prevent dirt migrating under an edge and turning a 200 mm repair into a 2 m replacement.

Safety and compliance for pedestrian walkway floor markings in warehouses

Warehouse traffic management plans often specify colours, patterns and right‑of‑way rules. Align your marking scheme with the site plan, induction materials and any internal WHS procedures so employees see the same conventions everywhere they work. Slip resistance, cleaning chemicals and lighting levels all influence material selection and visibility.

Where contractors or visitors regularly access the facility, favour symbol‑led designs and bold colour contrast to reduce reliance on language. Keep crossing approaches clear of obstructions so users can view oncoming traffic. For wet‑prone zones (receiving, chillers), specify a system with a verified AS 4586 slip rating appropriate to the risk profile and cleaning regime.

Ordering checklist for pedestrian walkway floor markings

Providing clear information at the start reduces lead time and onsite disruption.

• Scaled layout or marked‑up plan showing walkway routes, widths and crossings.
• Preferred colours, patterns and icon set (arrows, footprints, hazard chevrons).
• Floor condition notes (sealed, unsealed, polished, epoxy, age, cleaning chemicals).
• Traffic profile (foot only, foot + trolleys, forklift frequency and turn zones).
• Any site rules to depict (keep left, one‑way, exclusion zones).
• Installation window and access constraints (after‑hours, shutdown periods).
• Slip resistance targets per zone (ambient vs wet‑prone areas) if applicable.
• Preference for hybrid approach (paint at turns, tape/decals on straights) to balance durability and change‑out.

You can order production‑ready kits directly: Custom Floor Graphics and Floor Stencils. Our team can convert marked‑up plans into a labelled, area‑by‑area install pack.

Cost and lifespan of pedestrian walkway floor markings for warehouses

Total cost is driven by area coverage, design complexity, material grade and installation conditions. Straight tape runs and repeatable symbols are efficient; complex contours and multi‑colour graphics require more print‑and‑cut time and careful placement.

• Traffic intensity: higher forklift interactions demand tougher materials or paint systems.
• Surface quality: well‑sealed, smooth concrete improves adhesion and longevity.
• Cleaning regime: match materials to detergents and equipment used.
• Change frequency: if layouts change often, prioritise systems that are easy to lift and replace.

Investing in surface prep (deep clean, abrade or prime) increases upfront cost but usually extends service life and reduces call‑backs. Many sites find a hybrid system—paint in high‑scrub turns, tape or decals on straights—delivers the best total cost over time.

Case study: pedestrian walkway floor markings rollout in a warehouse

Client: National 3PL, Western Sydney (18,000 m² ambient + chiller zones). Objective: separate pedestrian routes from MHE traffic and reduce near‑miss events at four high‑activity intersections.

• Scope: 620 m of walkways (green), 14 zebra crossings, 96 directional arrows, 38 symbol markers (keep left/no entry).
• Dimensions: 1,200 mm walkways with 100 mm borders; zebra bars 500 mm wide with 500 mm gaps; advance “decision arrows” placed 6 m before each crossing.
• Materials: polymeric print film with R11 textured overlam for crossings and arrows; 1.0 mm heavy‑duty tape for long straight runs; 2‑pack epoxy + laser‑cut stencils for two tight forklift turn zones.
• Manufacture: printed and cut on our Roland VG‑640; stencils cut on Trotec Speedy 500. Kits packed and labelled by zone with install drawings.
• Install window: 2 consecutive nights (7 pm–3 am) to avoid production hours. Two crews of two; autoscrubber prep, then staged install.
• QA: adhesion spot checks after 24 h; slip certificates (AS 4586) issued with close‑out pack; as‑built photos mapped to the plan.
• Outcome (12 weeks post‑install, per client HSEQ report): 23% reduction in pedestrian/MHE near‑miss reports at the treated intersections; zero trip incidents related to markings; improved induction clarity reported by supervisors.

Lessons learned: adding “decision arrows” 5–7 m before crossings improved lane discipline; hybridising long straights (tape) with durable paint at turn zones optimised both durability and future flexibility.

Reordering pedestrian walkway floor markings for warehouses

For multi‑site rollouts or periodic refreshes, keeping artwork and cut paths consistent saves time. Sign Portal can retain your approved colour palette, icon set and stencil files to streamline repeat manufacture. Trade customers can leverage our Trade Portal for faster quoting and repeat orders, with previous jobs referenced for colour and sizing consistency.
